LF DriverMW13 series
SB Acoustics
SB Acoustics MW13P-4
SB Acoustics MW13P-4 is a 5" 4 ohm LF driver rated at 40W RMS. The validated T/S data includes Fs 41Hz, Qts 0.27, Vas 14.6L, Xmax 10mm, sensitivity 87.4dB, plus 70cm³ Vd and 141 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £139.69.
Size
5"
Impedance
4Ω
RMS Power
40W
Sensitivity
87.4dB
89.0dBmanufacturer; using T/S-derived value (1.6dB delta).
EBP
141
Vented alignment
Vd
70cm³

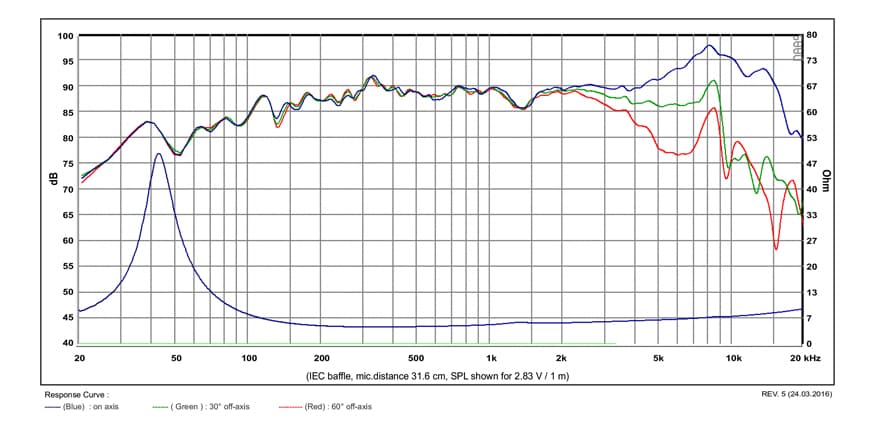

Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
30 degrees240 ptsp1medium
60 degrees240 ptsp1medium
Curve provenanceInspect 2 tracesHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
30 degrees
Frequency response
240 plotted pointsMedium confidence1,251 selected pixels of 9,999 - Trace datasheet-response-trace-poc/v1
60 degrees
Frequency response
240 plotted pointsMedium confidence918 selected pixels of 2,285
T/S Parameters
Valid
Fs41Hz
Qts0.27
Qes0.29
Qms3.7
Vas14.6L
Re3.8Ω
Le0.13mH
BL4.9Tm
Sd70cm²
Mms7g
Xmax10.0mm
SPL87dB
Power40W
Impedance4Ω
Voice Coil31mm
Flux Density1.08T
Pricing & availability
Price definitionsPrice movement
Best current price
£139.69
inc VAT·Vendor hidden
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight0.8kg
