6-inch LF driver · C-Quenze series · 120 W

Audio Technology 15 J 52 15 06 SD 4Ω

Name: Audio Technology 15 J 52 15 06 SD 4 Ohm
Brand: Audio Technology
SKU: 15 J 52 15 06 SD

4 Ω

No current price

View offers

Open in 00 Simulator

Fs: 45Hz
Xmax: 5.2mm
SPL: 88dB
Pe: 120W
BL: 5.5T·m
Vd: 50cm³
Qts: 0.32
Vas: 15L

See all 20 specs

Specifications

Published by Audio Technology

Manufacturer page

Datasheet PDF

Audio Technology 15 J 52 15 06 SD is a 6-inch 4 ohm LF driver rated at 120 W RMS. The validated T/S data includes Fs 45 Hz, Qts 0.32, Vas 15 L, Xmax 5.2 mm, sensitivity 87.7 dB, plus 50 cm³ Vd and 122 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.

The published T/S values agree with each other

Thiele/Small

Fs: 45Hz
Qts: 0.32
Qes: 0.37
Qms: 2.2
Vas: 15L
Re: 3.6Ω
Le: 0.15mH

Motor and cone

BL: 5.5T·m
Sd: 96cm²
Mms: 11g
Xmax: 5.2mm
Vd †: 50cm³

Power and response

Sensitivity †: 87.7dB
Manufacturer sensitivity: 88dB
Power: 120W
Impedance: 4Ω
EBP †: 122 · Leans vented

Other published values

Cms: 1.15mm/N
Rms: 1.40kg/s
Xmech: 32

† Calculated by bits from the published values

What this validation status means

Everything else Audio Technology lists

LF · Primary · 5.91″

BL: 5.5T·m
Fs: 45Hz
Le: 0.15mH
Re: 3.6Ω
Sd: 96cm²
Cms: 1.15mm/N
Mms: 11g
Qes: 0.37
Qms: 2.2
Qts: 0.32
Rms: 1.40kg/s
SPL: 87.7dB
Vas: 15L
Xmax: 5.2mm
Xmech: 32
Power: 120W
Impedance: 4Ω
Sensitivity: 88dB
Calculated sensitivity †: 87.7dB
Manufacturer sensitivity: 88dB

Compare

Same-size drivers, compared with the 15 J 52 15 06 SD. Clear differences are green when better and red when worse.

This driver15 J 52 15 06 SD

Best price

–

45 Hz

Qts

0.32

Vas

15 L

5.5 T·m

Xmax

5.2 mm

Sensitivity

87.7 dB

Power

120 W

FaitalPRO5FE100

£21.36

Fs65 Hz +44%

Qts0.33 +3%

Vas6.1 L −59%

BL6 T·m +9%

Xmax5.2 mm –

Sensitivity88.8 dB +1.1

SB AcousticsSB13PFC25-8

£23.19

Fs45 Hz –

Qts0.33 +3%

Vas13.4 L −11%

BL6.2 T·m +13%

Xmax4.5 mm −13%

Sensitivity87 dB −0.7

SB AcousticsSB13PFC25-4

£23.19

Fs44 Hz –

Qts0.29 −9%

Vas13.4 L −11%

BL5.3 T·m −4%

Xmax4.5 mm −13%

Sensitivity87.4 dB –

SB AcousticsSB13PFCR25-4-COAX

£44.69

Fs43 Hz −4%

Qts0.27 −16%

Vas14.4 L −4%

BL5.1 T·m −7%

Xmax4.7 mm −11%

Sensitivity87.8 dB –

Eighteen Sound5W430

£44.95

Fs52 Hz +16%

Qts0.32 –

Vas15 L –

BL6.3 T·m +15%

Xmax6 mm +15%

Sensitivity89.7 dB +2

Dayton AudioRS150-8

£45.32

Fs48 Hz +6%

Qts0.34 +6%

Vas16.6 L +11%

BL5.6 T·m –

Xmax4 mm −23%

Sensitivity88.3 dB +0.6

Dayton AudioRS150-4

£45.32

Fs45 Hz –

Qts0.33 +3%

Vas16.4 L +9%

BL4.1 T·m −25%

Xmax4.4 mm −15%

Sensitivity87.8 dB –

SB AcousticsSB15NRXC30-8

£54.62

Fs38 Hz −16%

Qts0.33 +3%

Vas20.7 L +38%

BL5.6 T·m –

Xmax5 mm −4%

Sensitivity87.1 dB −0.6

SB AcousticsSB15NRXC30-4

£54.62

Fs41 Hz −9%

Qts0.29 −9%

Vas16.7 L +11%

BL4.7 T·m −15%

Xmax5 mm −4%

Sensitivity87.7 dB –

Dayton AudioRS150P-8A

£58.55

Fs47 Hz +5%

Qts0.34 +6%

Vas16.7 L +11%

BL5.6 T·m –

Xmax4 mm −23%

Sensitivity88.1 dB –

SB AcousticsSB17NRXC35-8

£59.13

Fs32 Hz −29%

Qts0.34 +6%

Vas44.5 L +197%

BL5.9 T·m +7%

Xmax5.5 mm +6%

Sensitivity88.1 dB –

SB AcousticsSB15NAC30-8

£70.08

Fs36 Hz −21%

Qts0.37 +16%

Vas17.7 L +18%

BL5.9 T·m +7%

Xmax5 mm −4%

Sensitivity85.1 dB −2.6

SB AcousticsSB15NAC30-4

£70.08

Fs35 Hz −22%

Qts0.30 −6%

Vas18.3 L +22%

BL4.8 T·m −13%

Xmax5 mm −4%

Sensitivity85.9 dB −1.8

SB AcousticsSB17NAC35-4

£71.77

Fs32 Hz −29%

Qts0.32 –

Vas33 L +120%

BL5.2 T·m −5%

Xmax5.5 mm +6%

Sensitivity87.1 dB −0.6

CIAREHWG130

£77.96

Fs40 Hz −11%

Qts0.34 +6%

Vas12.5 L −17%

BL5 T·m −9%

Xmax6.5 mm +25%

Sensitivity85.5 dB −2.2

SEASH1455-08 ER15RLY

£80.99

Fs44 Hz –

Qts0.32 –

Vas15 L –

BL5.5 T·m –

Xmax5 mm −4%

Sensitivity87 dB −0.7

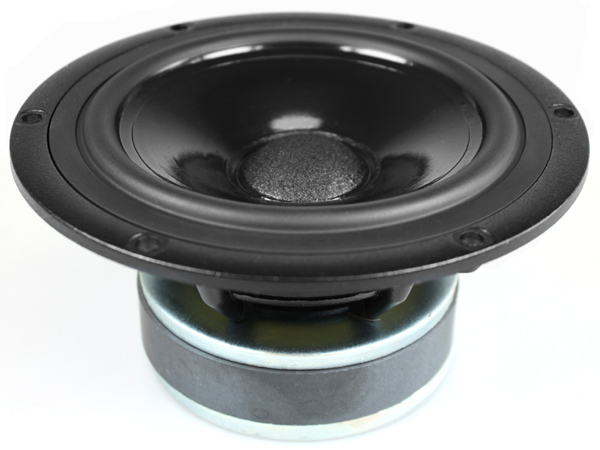

SEASH1216-08 CA15RLY

£90.21

Fs44 Hz –

Qts0.34 +6%

Vas14 L −7%

BL5.5 T·m –

Xmax5 mm −4%

Sensitivity86.6 dB −1.1

WavecorWF152BD09

£111.07

Fs52 Hz +16%

Qts0.34 +6%

Vas8.6 L −43%

BL5.8 T·m +5%

Xmax4.5 mm −13%

Sensitivity87.4 dB –

SB AcousticsMR13PNW-8

£115.00

Fs47 Hz +4%

Qts0.30 −6%

Vas12.9 L −14%

BL6.2 T·m +13%

Xmax6 mm +15%

Sensitivity88.2 dB +0.5

SB AcousticsMR13P-8

£135.77

Fs45 Hz –

Qts0.31 −3%

Vas12.5 L −17%

BL6.1 T·m +11%

Xmax6 mm +15%

Sensitivity87.4 dB –

SB AcousticsMW13PNW-8

£139.69

Fs41 Hz −9%

Qts0.31 −3%

Vas15 L –

BL5.7 T·m +4%

Xmax10 mm +92%

Sensitivity87 dB −0.7

SB AcousticsMW13P-8

£139.69

Fs42 Hz −8%

Qts0.30 −6%

Vas15 L –

BL5.7 T·m +4%

Xmax10 mm +92%

Sensitivity87.1 dB −0.6

WavecorWF152BD03

£144.04

Fs56 Hz +23%

Qts0.35 +9%

Vas9.2 L −39%

BL5.8 T·m +5%

Xmax4.5 mm −13%

Sensitivity88.4 dB +0.7

Scanspeak15W/4531G00

£168.92

Fs40 Hz −11%

Qts0.32 –

Vas15.8 L +5%

BL5.7 T·m +4%

Xmax6.5 mm +25%

Sensitivity86.8 dB −0.9

Tang BandW5-1880

£211.20

Fs48 Hz +7%

Qts0.32 –

Vas26.5 L +76%

BL5.5 T·m –

Xmax5 mm −4%

Sensitivity90.9 dB +3.2

SB AcousticsMW13TX-8

£227.25

Fs40 Hz −11%

Qts0.32 –

Vas14.8 L –

BL5.7 T·m +4%

Xmax10 mm +92%

Sensitivity86.5 dB −1.2

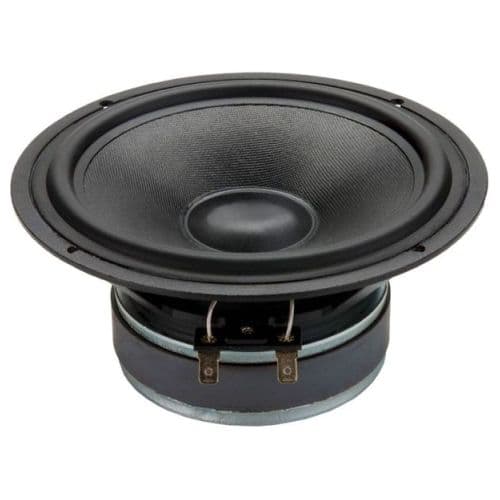

CIARECW169

No current price

Fs46 Hz –

Qts0.32 –

Vas21.2 L +41%

BL5.9 T·m +8%

Xmax5 mm −4%

Sensitivity89.3 dB +1.6

SEASE0049-04S W16NX001

No current price

Fs37 Hz −18%

Qts0.33 +3%

Vas15 L –

BL5.3 T·m −4%

Xmax7 mm +35%

Sensitivity85 dB −2.7

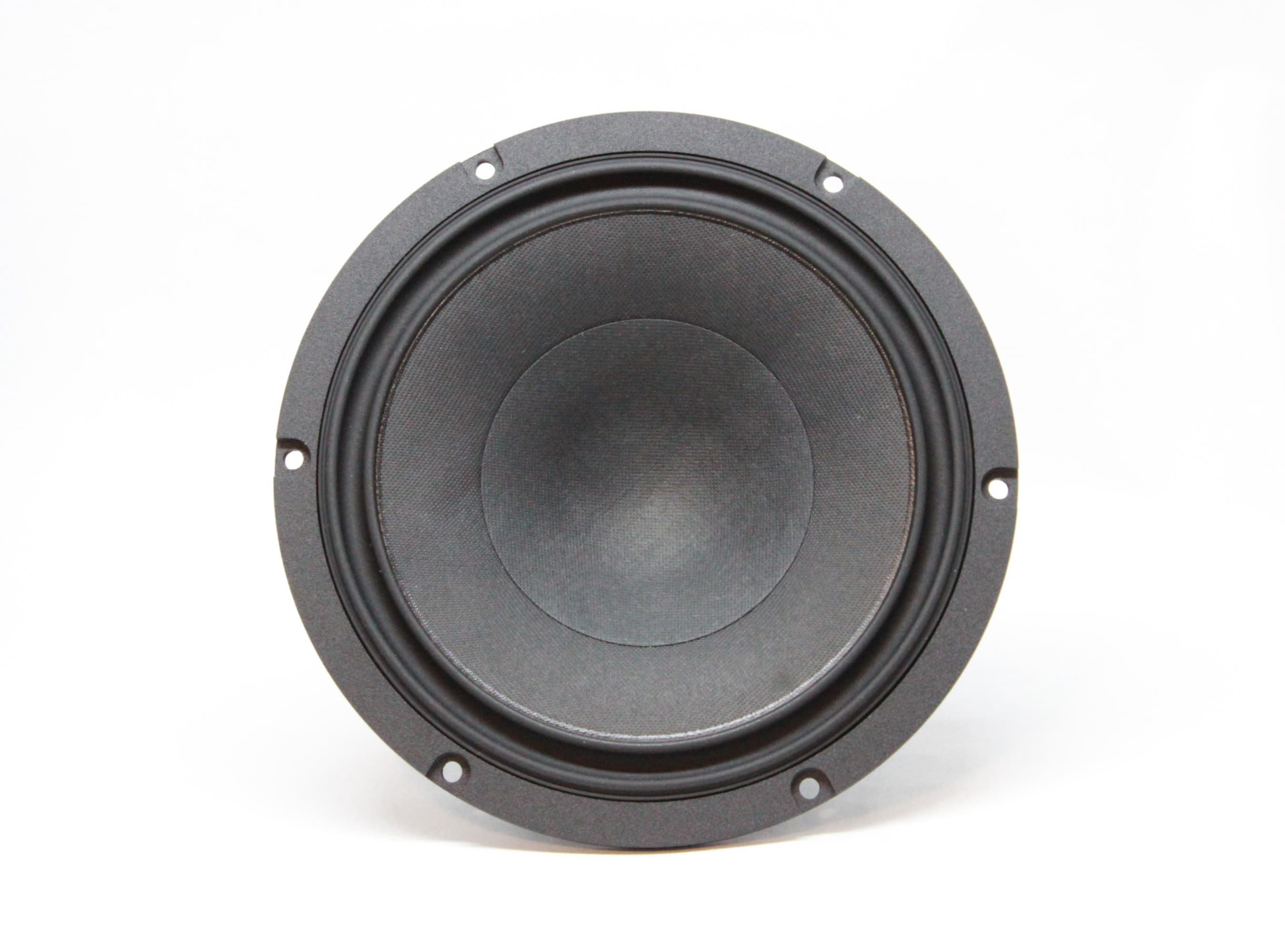

KartesianLOM155_VKI

No current price

Fs48 Hz +7%

Qts0.33 +3%

Vas16.6 L +11%

BL6.3 T·m +15%

Xmax6 mm +15%

Sensitivity89.1 dB +1.4

WavecorWF152BD10

No current price

Fs49 Hz +9%

Qts0.32 –

Vas9.6 L −36%

BL5.8 T·m +5%

Xmax4.5 mm −13%

Sensitivity87.4 dB –

Search similar

Tune the match

Choose the published values that matter to your design. Size stays matched to this driver.

Qts

Qes

Vas

Xmax
