Wavecor WF152BD10 4Ω
LF DriverMedia
Wavecor
WF152BD10
Image unavailable
Overview
LF DriverWF152BD series
Wavecor

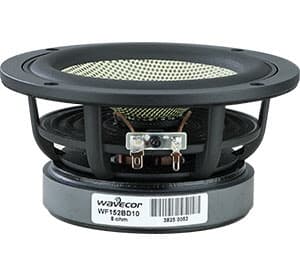

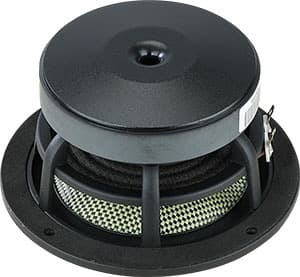

Wavecor WF152BD10
Wavecor WF152BD10 is a 6" 4 ohm LF driver. The validated T/S data includes Fs 49Hz, Qts 0.32, Vas 9.6L, Xmax 4.5mm, sensitivity 87.4dB, plus 38cm³ Vd and 148 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
6"
Impedance
4Ω
Sensitivity
87.4dB
EBP
148
Vented alignment
Vd
38cm³
Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
FR040WA01 impedance240 ptsp2medium
FR040WA02 impedance240 ptsp2medium
Curve provenanceInspect 2 tracesHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
FR040WA01 impedance
Impedance response
240 plotted pointsMedium confidence688 selected pixels of 688 - Trace datasheet-response-trace-poc/v1
FR040WA02 impedance
Impedance response
240 plotted pointsMedium confidence669 selected pixels of 669
T/S Parameters
Valid
Fs49Hz
Qts0.32
Qes0.33
Qms10.5
Vas9.6L
Re3.2Ω
BL5.8Tm
Sd85cm²
Mms11g
Xmax4.5mm
SPL87dB
Impedance4Ω
Voice Coil32mm
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Not enough T/S data
Missing Le, RMS power
BASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Not enough T/S data
Missing Le, RMS power
VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Not enough T/S data
Missing Le, RMS power
00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Diameter152.4mm
