Hornresp
.txt · Hornresp driver database
Driver file ready to place in Hornresp’s Drivers folder.
Download for HornrespB&C 6PS44 8Ω
LF DriverMedia
Auto-advancing
Overview
LF Driver6PS series
B&C
B&C 6PS44

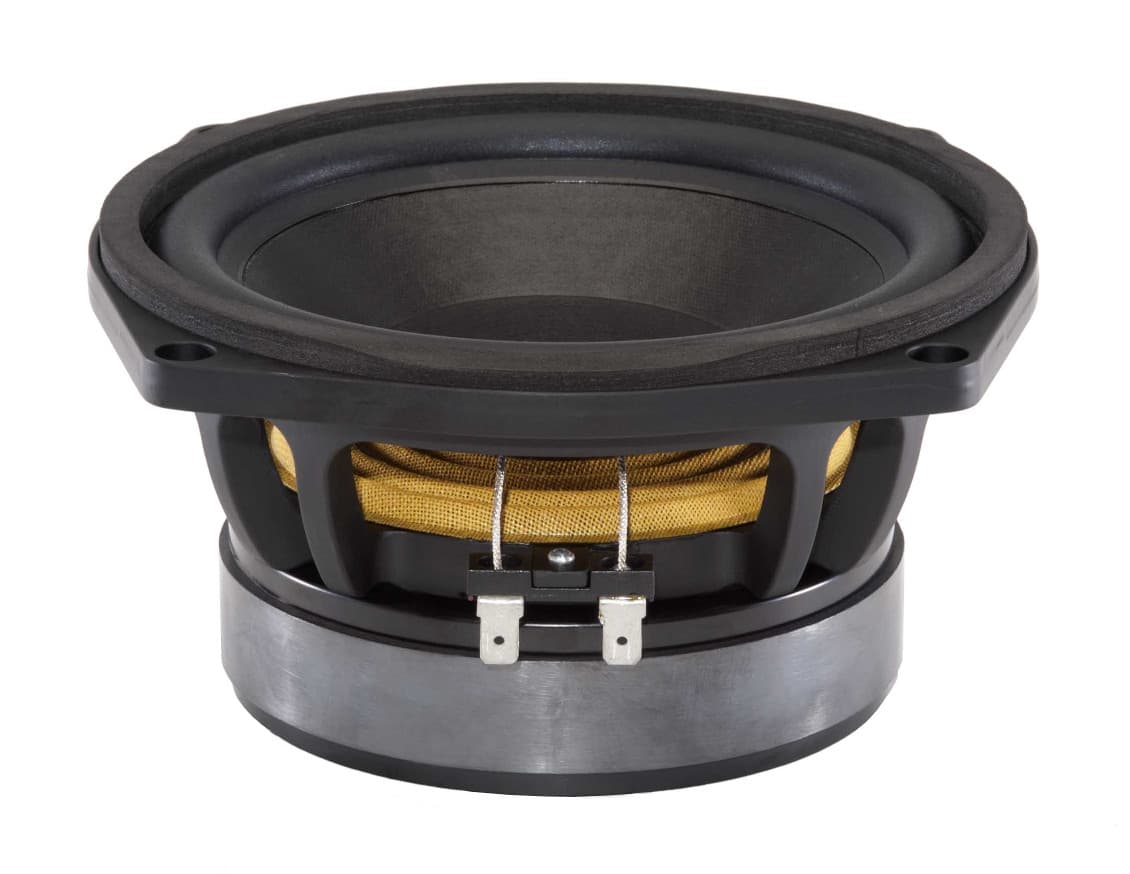

B&C 6PS44 is a 6.5" 8 ohm LF driver rated at 200W RMS. The validated T/S data includes Fs 71Hz, Qts 0.33, Vas 7L, Xmax 4.5mm, sensitivity 90.7dB, plus 59cm³ Vd and 209 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £86.62.
Size
6.5"
Impedance
8Ω
RMS Power
200W
Sensitivity
90.7dB
93.0dBmanufacturer; using T/S-derived value (2.3dB delta).
EBP
209
Vented alignment
Vd
59cm³
Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
free-air SPL240 ptsp3medium
Curve provenanceInspect 2 tracesHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v2

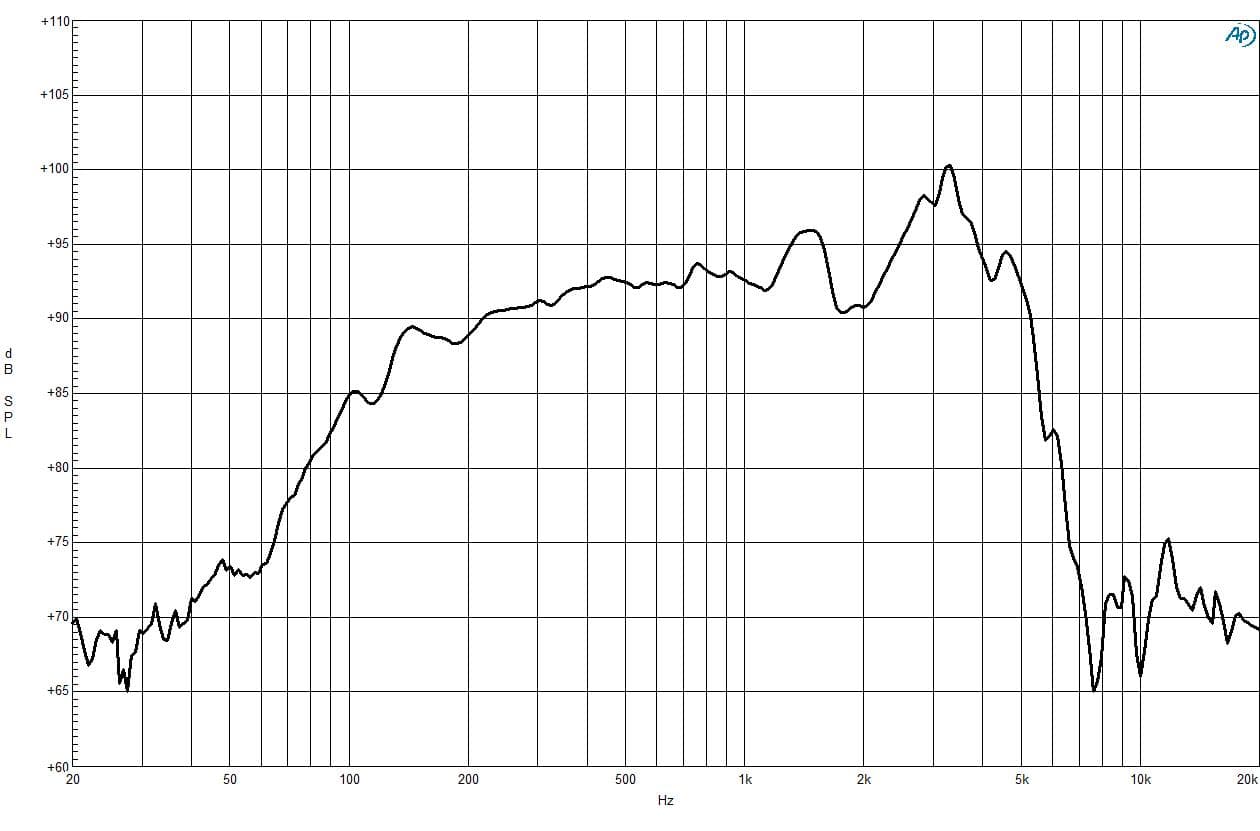

free-air SPL
Frequency response
240 plotted pointsSource file SHA-256 9bbe7946026d…Medium confidence6,350 selected pixels of 6,350 - Trace datasheet-response-trace-poc/v2

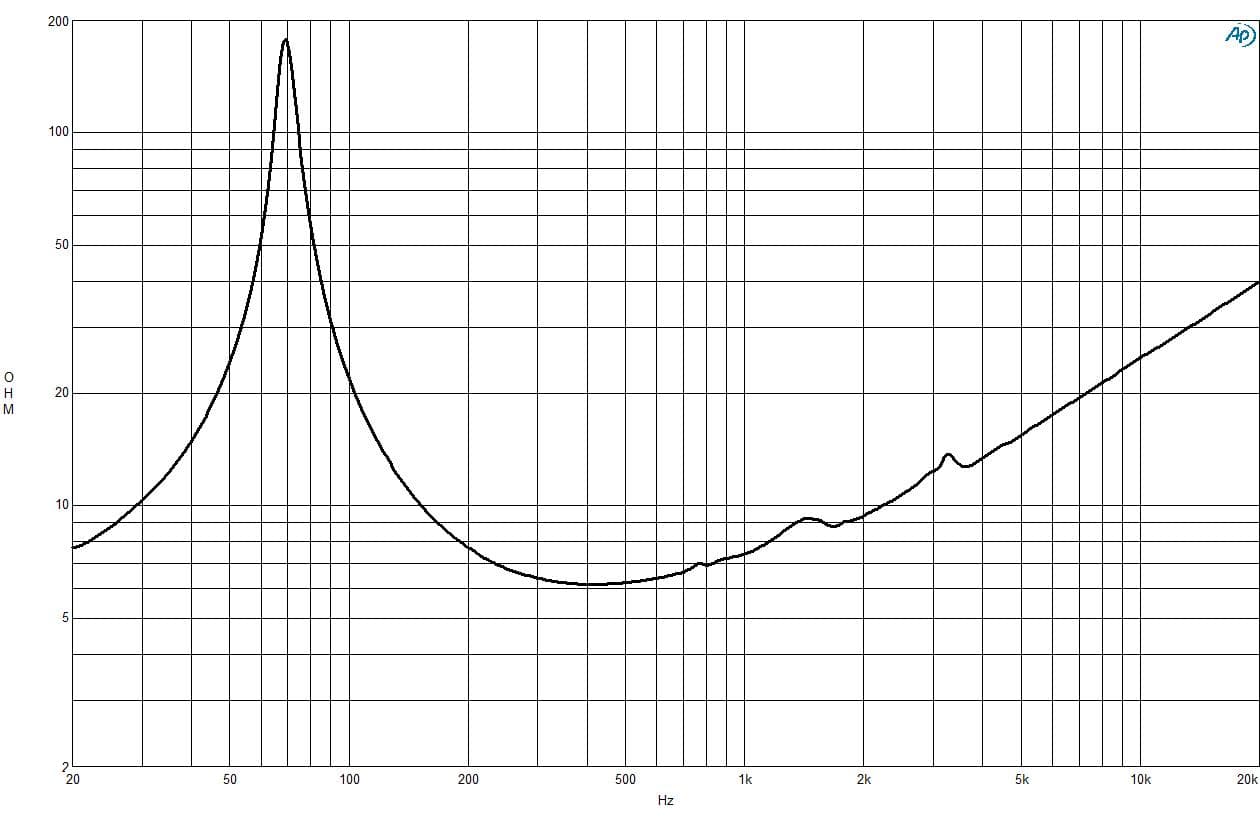

free-air impedance
Impedance response
240 plotted pointsSource file SHA-256 9bbe7946026d…Medium confidence4,331 selected pixels of 4,331

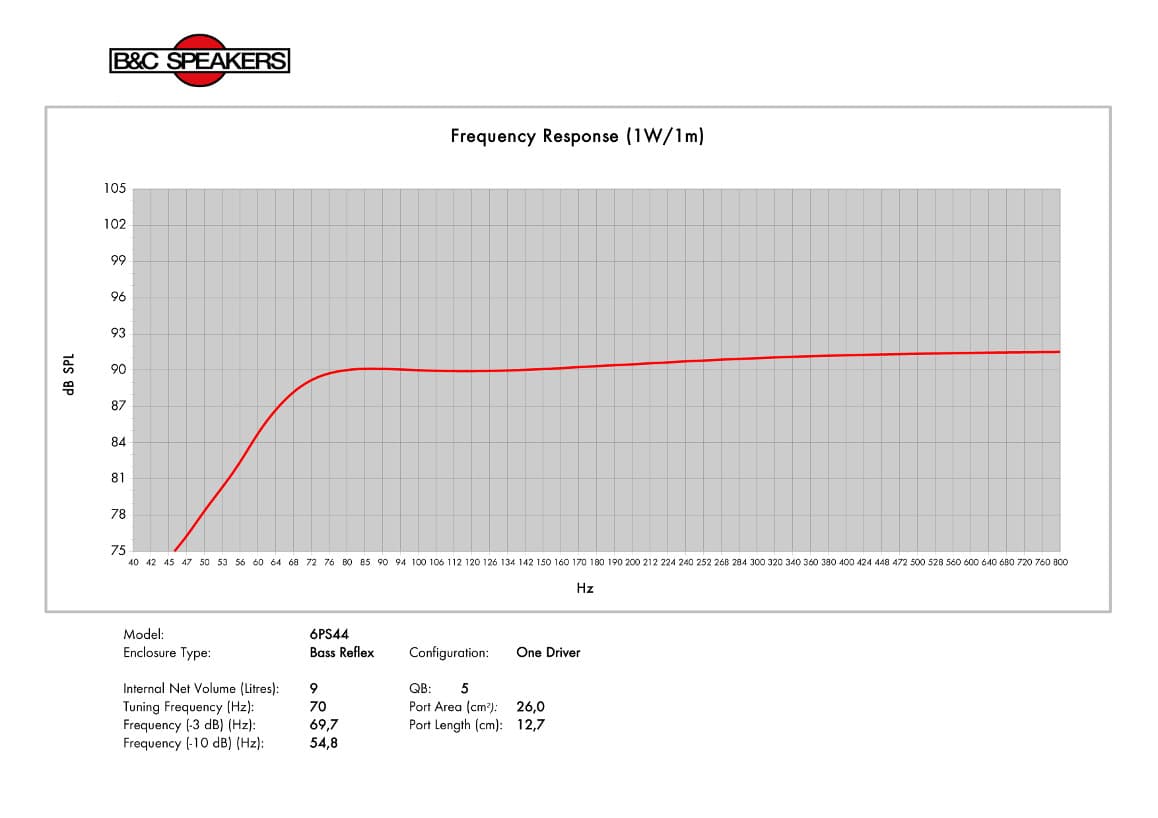

Frequency response
Manufacturer-provided response plots and related charts.
T/S Parameters
Valid
Fs71Hz
Qts0.33
Qes0.34
Qms12.5
Vas7.0L
Re5.3Ω
Le0.70mH
BL11.0Tm
Sd132cm²
Mms18g
Xmax4.5mm
SPL91dB
Power200W
Power Nominal200W
Impedance8Ω
Min Impedance6.0Ω
F Low70Hz
F High5000Hz
Voice Coil44mm
Flux Density1.25T
Pricing & availability
Price definitionsPrice movement
Other offers
1 vendorjpleisure
Updated 11 Sept 2026· 8Ω
Source: ex VAT · 20%
£86.62
inc VAT
In stock
Best current price
Updated 7 Aug 2026
jpleisure
£86.62
Avg £86.62£0.00 vs avg (+0.0%)
inc VAT·In stock
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight2.4kg
Diameter187.0mm
Overall Depth88.0mm
Cutout Diameter145.0mm
Bolt Circle Diameter172.0mm
Additional Manufacturer Specs
Bl11 Tm
Fs71 Hz
Le0.7 mH
Re5.3 Ω
Sd132 cm² (20.46 in²)
Ebp209 Hz
Mms18 g
Qes0.34
Qms12.5
Qts0.33
Vas7 dm³ (0.25 ft³)
η00.7 %
ConeRCK06PS448
Xmax4.5 mm
Xvar6 mm
SpiderSingle
Cone ShapeRadial
Pole DesignStraight Pole
Winding Depth12 mm (0.49 in)
Surround ShapeRoll
Former MaterialGlass Fibre
Magnet MaterialFerrite
Nominal Diameter170 mm (6.5 in)
Winding MaterialCopper
Magnetic Gap Depth6 mm (0.24 in)
Recommended Tuning70 Hz
Bolt Circle Diameter172 mm (6.77 in)
Recommended Enclosure9 dm³ (0.32 ft³)
Woofer Cone TreatmentWP Waterproof Front Side
Baffle Cutout Diameter145 mm (5.71 in)
Flange And Gasket Thickness13 mm (0.51 in)
Air Volume Occupied By Driver0.9 dm³ (0.03 ft³)
