6-inch LF driver · PR series · 120 W

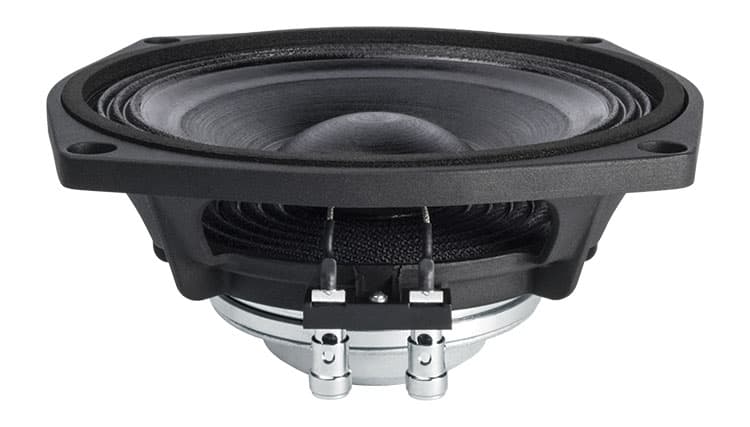

FaitalPRO 6PR160 8Ω
8 Ω · 80–8000 Hz
- Fs
- 90Hz
- Xmax
- 5mm
- SPL
- 93dB
- Pe
- 120W
- BL
- 11T·m
- Vd
- 65cm³
- Qts
- 0.33
- Vas
- 6L
Manufacturer response and impedance data, with source and trace details below. The left and right arrow keys read every shown curve at a frequency, a twelfth of an octave at a time, or an octave with Shift. Escape clears the reading.
Curve provenanceInspect 3 traces
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
0 degrees
Frequency response
204 plotted pointsMedium confidence682 selected pixels of 995 - Trace datasheet-response-trace-poc/v1
45 degrees
Frequency response
240 plotted pointsMedium confidence1,248 selected pixels of 1,248 - Trace datasheet-response-trace-poc/v1
impedance
Impedance response
240 plotted pointsMedium confidence1,496 selected pixels of 1,496
FaitalPRO 6PR160 is a 6-inch 8 ohm LF driver rated at 120 W RMS. The validated T/S data includes Fs 90 Hz, Qts 0.33, Vas 5.9 L, Xmax 5 mm, sensitivity 92.9 dB, plus 65 cm³ Vd and 257 EBP. bits tracks UK, EU and US shop prices, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £82.89.
The published T/S values agree with each other
Thiele/Small
- Fs
- 90Hz
- Qts
- 0.33
- Qes
- 0.35
- Qms
- 6.6
- Vas
- 5.9L
- Re
- 5.9Ω
- Le
- 0.28mH
Motor and cone
- BL
- 11T·m
- Sd
- 130cm²
- Mms
- 13g
- Xmax
- 5mm
- Vd †
- 65cm³
Power and response
- Sensitivity †
- 92.9dB
- Manufacturer sensitivity
- 95dB
- Power
- 120W
- Impedance
- 8Ω
- Range
- 80–8000Hz
- EBP †
- 257 · Leans vented
Size and mounting
- Diameter
- 186.5mm
- Cutout
- 147mm
- Bolt circle
- 172mm
- Depth
- 73mm
- Weight
- 1kg
Other published values
- Cms
- 0.25mm/N
- Rms
- 1.10kg/s
- Power Program
- 240
Sensitivity shows 92.9 dB, calculated from the T/S values. FaitalPRO publishes 95.0 dB, 2.1 dB apart.
† Calculated by bits from the published values
What this validation status means
Everything else FaitalPRO lists
LF · Primary · 6″
- BL
- 11T·m
- Fs
- 90Hz
- Le
- 0.28mH
- Re
- 5.9Ω
- Sd
- 130cm²
- Cms
- 0.25mm/N
- Mms
- 13g
- Qes
- 0.35
- Qms
- 6.6
- Qts
- 0.33
- Rms
- 1.10kg/s
- SPL
- 92.9dB
- Vas
- 5.9L
- Xmax
- 5mm
- Power
- 120W
- Impedance
- 8Ω
- Sensitivity
- 95dB
- Low limit
- 80Hz
- Power Program
- 240
- Calculated sensitivity †
- 92.9dB
- High limit
- 8000Hz
- Manufacturer sensitivity
- 95dB
- Weight
- 1kg
- Diameter
- 186.5mm
- Depth
- 73mm
- Cutout
- 147mm
- Bolt circle
- 172mm
02
Compare
Same-size drivers, compared with the 6PR160. Clear differences are green when better and red when worse.
This driver6PR160
Best price
£82.89
Fs
90 Hz
Qts
0.33
Vas
5.9 L
BL
11 T·m
Xmax
5 mm
Sensitivity
92.9 dB
Power
120 W
FaitalPRO6FE400
£37.20 · 55% less, betterFs100 Hz +11%, worse
Qts0.36 +9%
Vas5 L −15%, better
BL10.5 T·m −5%
Xmax4.8 mm −5%
Sensitivity93 dB –
Beyma6CMV2
£40.92 · 51% less, betterFs90 Hz –
Qts0.34 +3%
Vas6.5 L +10%, worse
BL9.4 T·m −15%, worse
Xmax5.7 mm +14%, better
Sensitivity92.3 dB −0.6
SB AcousticsSB15NRXC30-8
£54.13 · 35% less, betterFs38 Hz −58%, better
Qts0.33 –
Vas20.7 L +251%, worse
BL5.6 T·m −49%, worse
Xmax5 mm –
Sensitivity87.1 dB −5.8, worse
CelestionTFX0615
£58.53 · 29% less, betterFs97 Hz +8%
Qts0.38 +14%, worse
Vas7.2 L +22%, worse
BL9.8 T·m −11%, worse
Xmax5.3 mm +5%
Sensitivity93.8 dB +0.9
CIAREFXI6
£62.80 · 24% less, betterFs70 Hz −22%, better
Qts0.33 –
Vas8 L +36%, worse
BL10.6 T·m −4%
Xmax5.3 mm +6%
Sensitivity90.7 dB −2.2, worse
Beyma5P200FE
£63.23 · 24% less, betterFs72 Hz −20%, better
Qts0.33 –
Vas5.7 L −3%
BL8.5 T·m −23%, worse
Xmax5.7 mm +14%, better
Sensitivity89.9 dB −3, worse
FaitalPRO5PR160
£65.31 · 21% less, betterFs90 Hz –
Qts0.31 −6%
Vas3.7 L −37%, better
BL9.6 T·m −13%, worse
Xmax5.1 mm –
Sensitivity91.2 dB −1.7
SB AudienceROSSO-6MW150D
£67.15 · 19% less, betterFs66 Hz −27%, better
Qts0.32 −3%
Vas8.8 L +49%, worse
BL11.6 T·m +5%
Xmax5.2 mm +5%
Sensitivity90.9 dB −2, worse
PRV Audio6MB550FT
£67.26 · 19% less, betterFs85 Hz −6%
Qts0.34 +3%
Vas8.2 L +39%, worse
BL9.8 T·m −11%, worse
Xmax5.4 mm +8%
Sensitivity93.3 dB –
B&C6MBX44
£74.45 · 10% less, betterFs113 Hz +26%, worse
Qts0.31 −6%
Vas4.1 L −31%, better
BL11.7 T·m +6%
Xmax3.5 mm −30%, worse
Sensitivity94.4 dB +1.5
FaitalPRO6PR150
£85.46 · 3% moreFs100 Hz +11%, worse
Qts0.34 +3%
Vas4.9 L −17%, better
BL11.6 T·m +5%
Xmax2.6 mm −47%, worse
Sensitivity93.5 dB +0.6
B&C6PS44
£86.62 · 4% moreFs71 Hz −21%, better
Qts0.33 –
Vas7 L +19%, worse
BL11 T·m –
Xmax4.5 mm −10%, worse
Sensitivity90.7 dB −2.2, worse
B&C6PS38
£89.63 · 8% more, worseFs75 Hz −17%, better
Qts0.30 −9%
Vas8 L +36%, worse
BL10.8 T·m –
Xmax6 mm +20%, better
Sensitivity92.4 dB −0.5
CIARENDI6
£89.68 · 8% more, worseFs71 Hz −21%, better
Qts0.29 −12%, better
Vas8.5 L +44%, worse
BL10.8 T·m –
Xmax5.3 mm +6%
Sensitivity91.8 dB −1.1
Eighteen Sound6NMB420
£115.20 · 39% more, worseFs110 Hz +22%, worse
Qts0.33 –
Vas6.1 L +3%
BL9 T·m −18%, worse
Xmax3 mm −40%, worse
Sensitivity95.3 dB +2.4, better
WavecorSW178WA01
£120.66 · 46% more, worseFs38 Hz −58%, better
Qts0.36 +11%, worse
Vas12.2 L +107%, worse
BL12 T·m +9%
Xmax5 mm –
Sensitivity84.6 dB −8.3, worse
B&C6FHX51
£129.07 · 56% more, worseFs85 Hz −6%
Qts0.37 +12%, worse
Vas5 L −15%, better
BL11.3 T·m –
Xmax5.7 mm +14%, better
Sensitivity90.9 dB −2, worse
FaitalPRO6HX150
£155.14 · 87% more, worseFs88 Hz –
Qts0.34 +3%
Vas6.3 L +7%
BL12 T·m +9%
Xmax4.3 mm −13%, worse
Sensitivity92.9 dB –
Eighteen Sound6NTLW2000
£157.41 · 90% more, worseFs86 Hz −4%
Qts0.35 +6%
Vas4.6 L −22%, better
BL11.6 T·m +5%
Xmax4.9 mm –
Sensitivity90.9 dB −2, worse
B&C6HCX51
£175.82 · 112% more, worseFs89 Hz –
Qts0.38 +15%, worse
Vas5 L −15%, better
BL10.9 T·m –
Xmax5.5 mm +10%, better
Sensitivity91.5 dB −1.4
AccutonC173-6-191
£325.80 · 293% more, worseFs39 Hz −57%, better
Qts0.34 +3%
Vas21.6 L +266%, worse
BL8.8 T·m −20%, worse
Xmax5 mm –
Sensitivity87.3 dB −5.6, worse
B&C6CLA51
No current priceFs96 Hz +7%
Qts0.32 −3%
Vas4.3 L −27%, better
BL11.4 T·m +4%
Xmax4.8 mm −4%
Sensitivity92.3 dB −0.6
PRV Audio6MB550FT-4
No current priceFs86 Hz −4%
Qts0.34 +3%
Vas6.6 L +12%, worse
BL8.6 T·m −22%, worse
Xmax5.4 mm +8%
Sensitivity92.9 dB –
BMS6CN160
No current priceFs79 Hz −12%, better
Qts0.34 +3%
Vas8.9 L +51%, worse
BL10 T·m −9%
Xmax5 mm –
Sensitivity92.7 dB –
Beyma6CX200FE
No current priceFs65 Hz −28%, better
Qts0.32 −3%
Vas10.5 L +79%, worse
BL9.2 T·m −16%, worse
Xmax5 mm –
Sensitivity91.3 dB −1.6
Oberton6NCX
No current priceFs89 Hz –
Qts0.36 +10%, worse
Vas7.0 L +19%, worse
BL9 T·m −18%, worse
Xmax4.8 mm −5%
Sensitivity93.1 dB –
CelestionNTR06-17X
No current priceFs60 Hz −33%, better
Qts0.32 –
Vas13.2 L +124%, worse
BL10.4 T·m −6%
Xmax4.5 mm −10%, worse
Sensitivity91.4 dB −1.5
HiViD5.8B
No current priceFs52 Hz −42%, better
Qts0.37 +12%, worse
Vas5.6 L −5%
BL9 T·m −18%, worse
Xmax4.8 mm −4%
Sensitivity84.8 dB −8.1, worse
Sica5.5 C 1.5 CP
No current priceFs62 Hz −31%, better
Qts0.31 −6%
Vas5.4 L −8%
BL7.9 T·m −28%, worse
Xmax4 mm −20%, worse
Sensitivity87.8 dB −5.1, worse
Tune the match
Choose the published values that matter to your design. Size stays matched to this driver.
Qts
Qes
VasL
Xmaxmm
BLTm
| Shop | Price | Against the lowest | Stock | Link |
|---|---|---|---|---|
Lean Audio | £85.36, the lowest price | 2 in stock | Visit shop at Lean Audio | |
Blue Aran 9-11 weeks | £85.36 | Usually available in 9-11 weeks | Visit shop at Blue Aran | |
Lean Business | £85.36 | Stock not listed | Visit shop at Lean Business | |
Thomann Not currently listed · Last seen 20 Apr 2026 | £88.00 | 3.1% above the lowest price | Stock not listed | Visit shop at Thomann |
Thomann | £93.00 | 9.0% above the lowest price | In stock | Visit shop at Thomann |
Parts Express Import VAT and duty may apply | £151.11 | 77% above the lowest price | Back order | Visit shop at Parts Express |
Best price over time
Tracked since 1 Apr
Recent changes
- 15 OctThomann£94.00 → £93.00Down 1.1% from £94.00
- 7 OctThomann£95.00 → £94.00Down 1.1% from £95.00
- 28 AugThomann£94.00 → £95.00Up 1.1% from £94.00
