Hornresp
.txt · Hornresp driver database
Driver file ready to place in Hornresp’s Drivers folder.
Download for HornrespMedia
Auto-advancing
Overview
LF DriverHX series
FaitalPRO

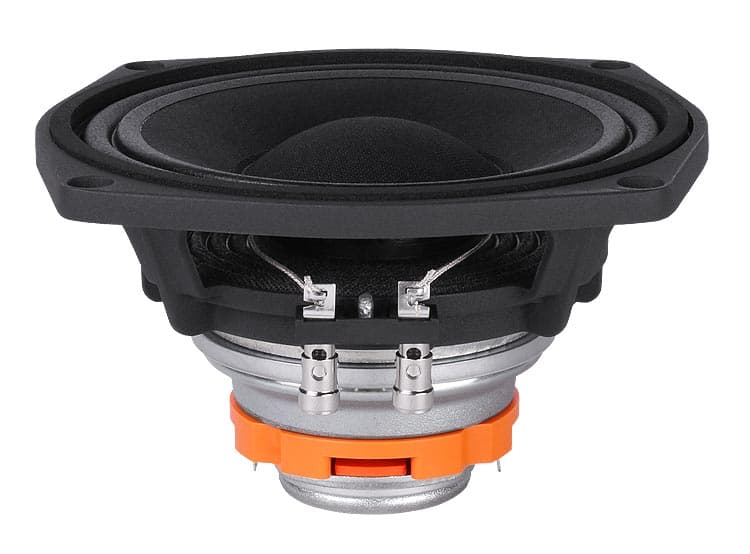

FaitalPRO 6HX150
FaitalPRO 6HX150 is a 6" 8 ohm LF driver rated at 150W RMS. The validated T/S data includes Fs 88Hz, Qts 0.34, Vas 6.3L, Xmax 4.3mm, sensitivity 92.9dB, plus 61cm³ Vd and 251 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £155.14.
Size
6"
Impedance
8Ω
RMS Power
150W
Sensitivity
92.9dB
EBP
251
Vented alignment
Vd
61cm³
Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
0 degrees103 ptsp1medium
45 degrees240 ptsp1medium
Curve provenanceInspect 3 tracesHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
0 degrees
Frequency response
103 plotted pointsMedium confidence321 selected pixels of 1,147 - Trace datasheet-response-trace-poc/v1
45 degrees
Frequency response
240 plotted pointsMedium confidence1,422 selected pixels of 2,440 - Trace datasheet-response-trace-poc/v1
impedance
Impedance response
240 plotted pointsMedium confidence708 selected pixels of 2,076
T/S Parameters
Valid
Fs88Hz
Qts0.34
Qes0.35
Qms8.3
Vas6.3L
Re5.5Ω
Le0.64mH
BL12.0Tm
Sd139cm²
Mms14g
Xmax4.3mm
SPL93dB
Power150W
Impedance8Ω
F Low90Hz
F High5000Hz
Pricing & availability
Price definitionsPrice movement
Best current price
£155.14
inc VAT·Vendor hidden
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight1.3kg
Diameter186.5mm
Overall Depth95.0mm
Cutout Diameter147.0mm
Bolt Circle Diameter172.0mm
