Wavecor WF152BD03 4Ω
LF DriverMedia
Auto-advancing
Overview
LF DriverWF152BD series
Wavecor
Wavecor WF152BD03
Wavecor WF152BD03 is a 6" 4 ohm LF driver. The validated T/S data includes Fs 56Hz, Qts 0.35, Vas 9.2L, Xmax 4.5mm, sensitivity 88.4dB, plus 42cm³ Vd and 154 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
6"
Impedance
4Ω
Sensitivity
88.4dB
EBP
154
Vented alignment
Vd
42cm³
T/S Parameters
Valid
Fs56Hz
Qts0.35
Qes0.36
Qms8.9
Vas9.2L
Re3.2Ω
BL5.8Tm
Sd93cm²
Mms11g
XmaxDerived4.5mm
SPL88dB
Impedance4Ω
Voice Coil32mm
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Not enough T/S data
Missing Le, RMS power
BASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Not enough T/S data
Missing Le, RMS power
VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Not enough T/S data
Missing Le, RMS power
00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.

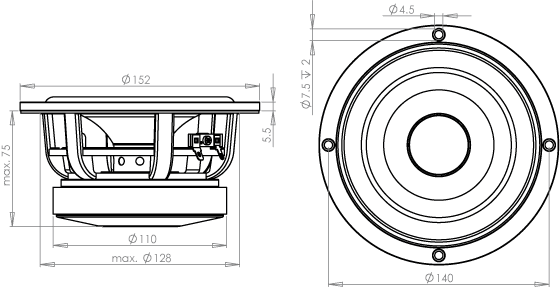

Dimensions & Physical
Diameter152.4mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Wavecor
WF152BD03
6"
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size. Pin a driver to open a side-by-side comparison.
12 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
Image unavailable
95%
Similarity
£108.94
Wavecor
WF152BD09
6"
Xmax4.5mm0%
Qts0.34-3%
BL5.8Tm0%
Vas8.6L-7%
Qes0.35-3%
Image unavailable
90%
Similarity
Wavecor
WF152BD10
6"
Xmax4.5mm0%
Qts0.32-9%
BL5.8Tm0%
Vas9.6L+4%
Qes0.33-8%
Image unavailable
89%
Similarity
Wavecor
WF152BD05
6"
Xmax4.5mm0%
Qts0.33-6%
BL6.3Tm+9%
Vas9.2L0%
Qes0.34-6%
Image unavailable
89%
Similarity
£97.08
Wavecor
WF152BD13
6"
Xmax4.5mm0%
Qts0.33-6%
BL6.3Tm+9%
Vas9.2L0%
Qes0.34-6%
Image unavailable
77%
Similarity
Wavecor
WF152BD12
6"
Xmax4.5mm0%
Qts0.38+9%
BL7.2Tm+24%
Vas9.6L+4%
Qes0.4+11%
Image unavailable
70%
Similarity
Wavecor
WF152BD06
6"
Xmax4.5mm0%
Qts0.29-17%
BL6.3Tm+9%
Vas11.5L+25%
Qes0.3-17%
Image unavailable
70%
Similarity
Wavecor
WF152BD14
6"
Xmax4.5mm0%
Qts0.29-17%
BL6.3Tm+9%
Vas11.5L+25%
Qes0.3-17%
Image unavailable
70%
Similarity
Wavecor
WF152BD11
6"
Xmax4.5mm0%
Qts0.4+14%
BL7.2Tm+24%
Vas8.6L-7%
Qes0.42+17%
70%
Similarity
Wavecor
WF152BD04
6"
Xmax4.5mm0%
Qts0.31-11%
BL7.3Tm+26%
Vas11.4L+24%
Qes0.33-8%
68%
Similarity
£106.95
SEAS
H1216-08 CA15RLY
6"
Xmax5mm+11%
Qts0.34-3%
BL5.5Tm-5%
Vas14L+52%
Qes0.42+17%
61%
Similarity
Dayton Audio
RS150T-8
6"
Xmax4mm-11%
Qts0.37+6%
BL5.7Tm-2%
Vas14.4L+57%
Qes0.47+31%
56%
Similarity
HiVi
D6.4+
6.5"
Xmax4mm-11%
Qts0.36+3%
BL6.6Tm+13%
Vas13.9L+51%
Qes0.42+17%
