Overview
LF Driver
Beyma
Beyma 6P200FE
Beyma 6P200FE is a 6.5" 16 ohm LF driver rated at 200W RMS. The validated T/S data includes Fs 66Hz, Qts 0.35, Vas 8.8L, Xmax 4mm, sensitivity 90.3dB, plus 54cm³ Vd and 174 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £88.81.
Size
6.5"
Impedance
16Ω
RMS Power
200W
Sensitivity
90.3dB
93.0dBmanufacturer; using T/S-derived value (2.7dB delta).
EBP
174
Vented alignment
Vd
54cm³
Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
frequency response240 ptsp2medium
Curve provenanceInspect 2 tracesHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
frequency response
Frequency response
240 plotted pointsMedium confidence3,946 selected pixels of 3,978 - Trace datasheet-response-trace-poc/v1
impedance
Impedance response
240 plotted pointsMedium confidence3,606 selected pixels of 3,606
Frequency response
Manufacturer-provided response plots and related charts.
T/S Parameters
Valid
Fs66Hz
Qts0.35
Qes0.38
Qms4.3
Vas8.8L
Re9.9Ω
Le0.30mH
BL13.6Tm
Sd135cm²
Mms16g
Xmax4.0mm
SPL90dB
Power200W
Impedance16Ω
F Low70Hz
F High9000Hz
Pricing & availability
Price definitionsPrice movement
Best current price
£88.81
inc VAT·Vendor hidden
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight3.1kg
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Beyma
6P200FE
6.5"
Best current price
£88.81
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size.
12 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
77%
Similarity
70% cheaper£26.27
Lavoce
WSF061.52
6.5"
Lower price
Xmax3.8mm-5%
Qts0.34-3%
BL10.8Tm-21%
Vas6.6L-25%
Qes0.36-5%
54%
Similarity
58% cheaper£37.20
FaitalPRO
6FE400
6"
Lower price
Xmax4.8mm+19%
Qts0.36+3%
BL10.5Tm-23%
Vas5L-43%
Qes0.4+5%
49%
Similarity
53% cheaper£42.07
Lavoce
WAF061.80
6.5"
Lower price
Xmax4.9mm+23%
Qts0.42+20%
BL9.5Tm-30%
Vas7.3L-18%
Qes0.44+16%
63%
Similarity
44% cheaper£49.78
Lavoce
WSN061.52
6.5"
Lower price
Xmax3.8mm-5%
Qts0.39+11%
BL9.9Tm-27%
Vas5.9L-33%
Qes0.42+11%
60%
Similarity
16% cheaper£74.45

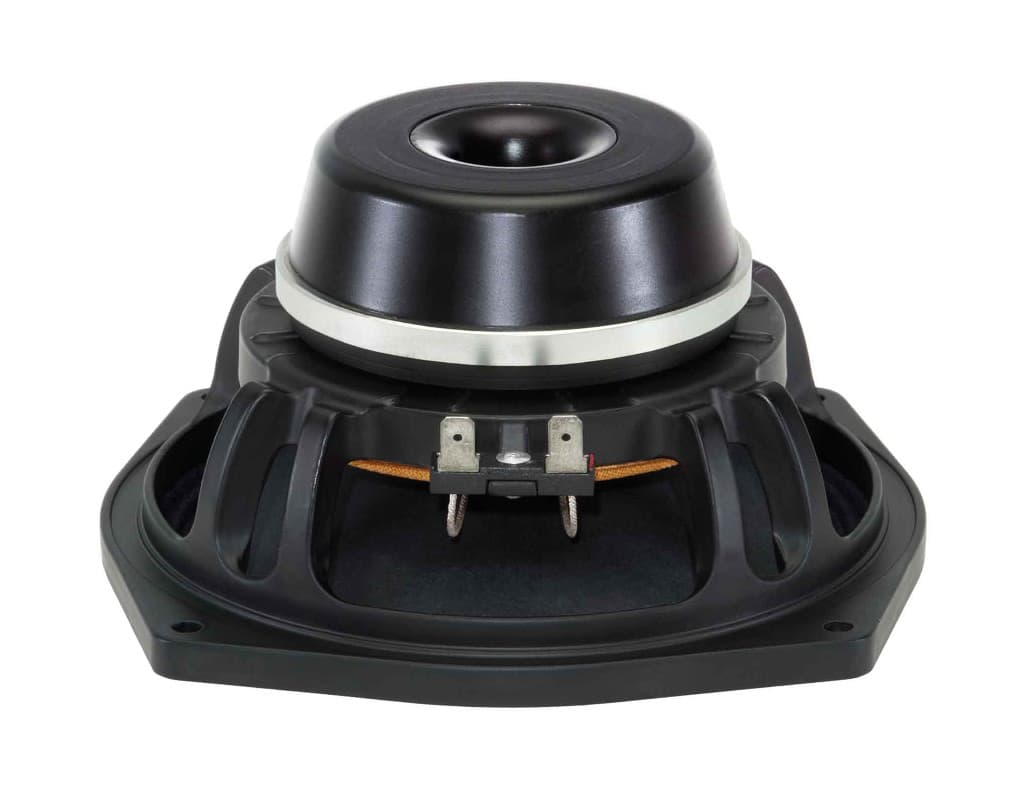

B&C
