Overview
LF Driver
Sica

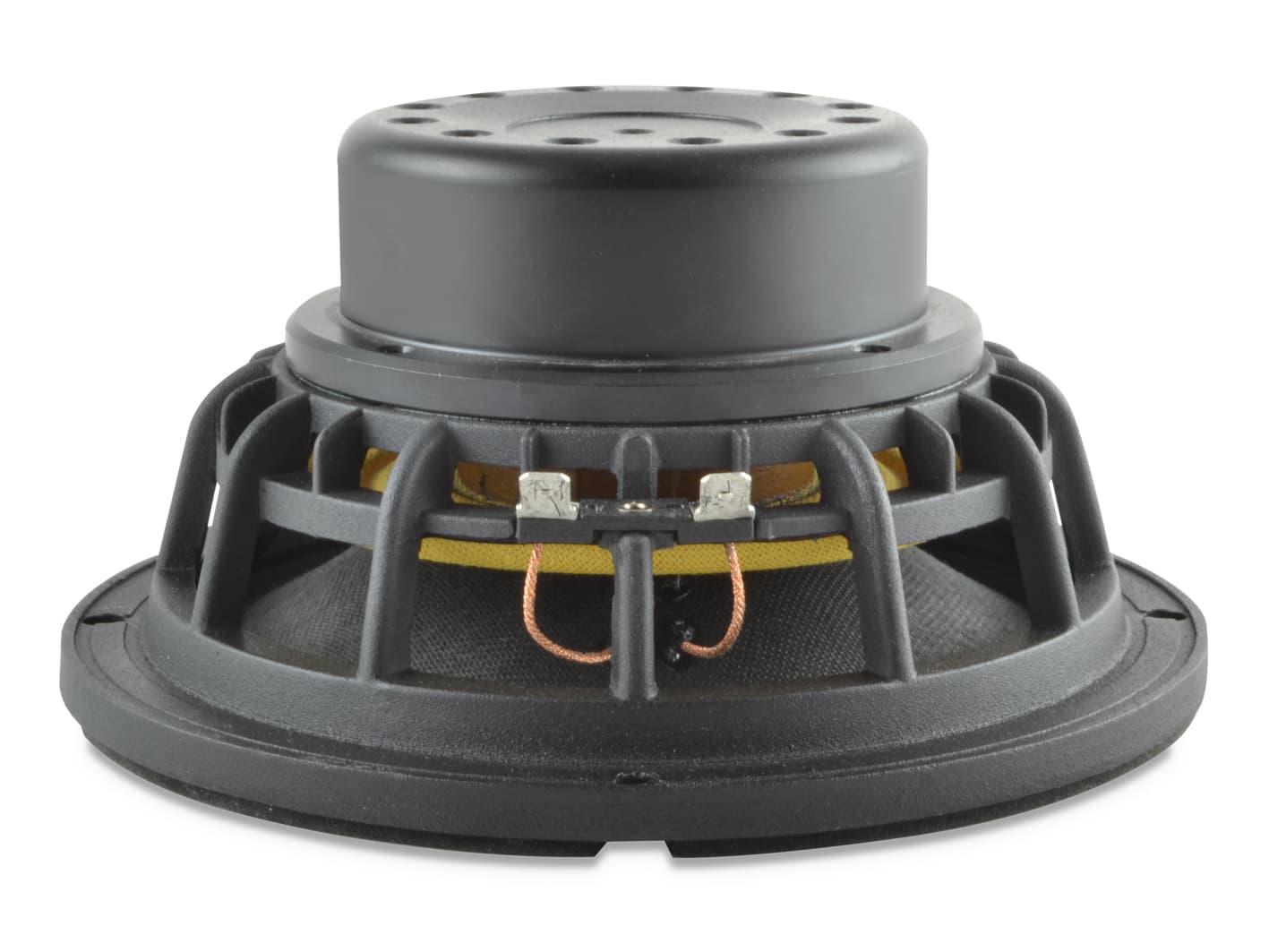

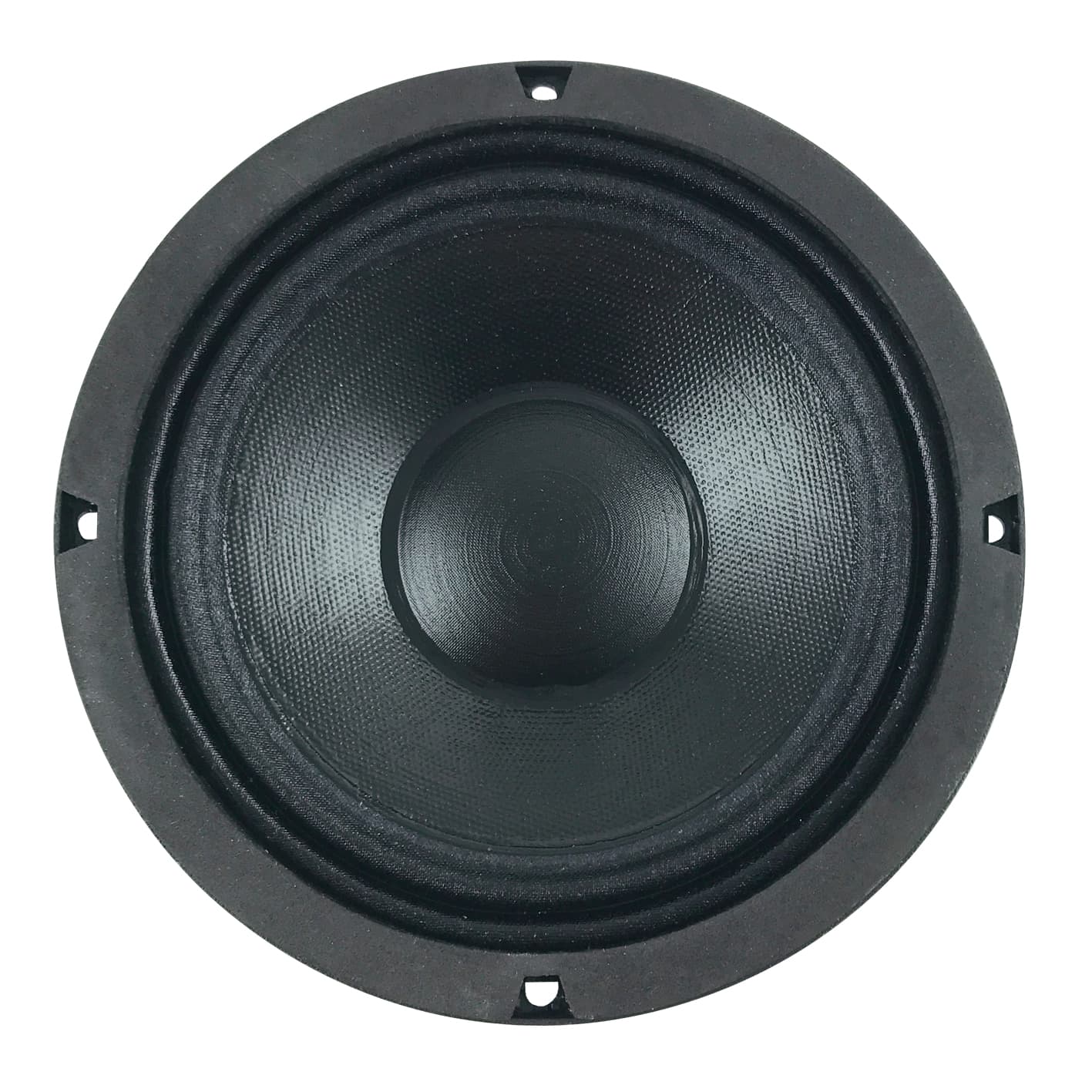

Sica 6 N 2 PL
Sica 6 N 2 PL is a 6" 8 ohm LF driver rated at 200W RMS. The validated T/S data includes Fs 68Hz, Qts 0.33, Vas 8.7L, Xmax 3.5mm, sensitivity 90.8dB, plus 43cm³ Vd and 189 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
6"
Impedance
8Ω
RMS Power
200W
Sensitivity
90.8dB
92.3dBmanufacturer; using T/S-derived value (1.5dB delta).
EBP
189
Vented alignment
Vd
43cm³
T/S Parameters
Valid
Fs68Hz
Qts0.33
Qes0.36
Qms4.0
Vas8.7L
Re5.7Ω
Le0.61mH
BL9.5Tm
Sd123cm²
Mms14g
Xmax3.5mm
SPL91dB
Power200W
Impedance8Ω
Voice Coil50mm
Flux Density1.20T
Pricing & availability
Price definitionsNo current price found
Pricing may appear after the next vendor refresh.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight1.5kg
Diameter166.0mm
Overall Depth82.8mm
Cutout Diameter143.0mm
Bolt Circle Diameter155.0mm
