Overview
LF Driver
Sica
Sica 5 NR 1.5 PL
Sica 5 NR 1.5 PL is a 5" 8 ohm LF driver rated at 130W RMS. The validated T/S data includes Fs 61Hz, Qts 0.35, Vas 7.4L, Xmax 3.5mm, sensitivity 88.4dB, plus 27cm³ Vd and 156 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
5"
Impedance
8Ω
RMS Power
130W
Sensitivity
88.4dB
90.0dBmanufacturer; using T/S-derived value (1.6dB delta).
EBP
156
Vented alignment
Vd
27cm³
T/S Parameters
Valid
Fs61Hz
Qts0.35
Qes0.39
Qms4.1
Vas7.4L
Re5.6Ω
Le0.34mH
BL6.7Tm
Sd79cm²
Mms8g
Xmax3.5mm
SPL88dB
Power130W
Impedance8Ω
Voice Coil38mm
Flux Density1.14T
Pricing & availability
Price definitionsNo current price found
Pricing may appear after the next vendor refresh.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight0.8kg
Diameter132.0mm
Overall Depth71.0mm
Cutout Diameter113.0mm
Bolt Circle Diameter139.0mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Sica
5 NR 1.5 PL
5"
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size.
12 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
76%
Similarity
Sica
5 F 1.5 CP
5"
Xmax3.5mm0%
Qts0.3-14%
BL7.6Tm+14%
Vas6.8L-8%
Qes0.33-15%
74%
Similarity

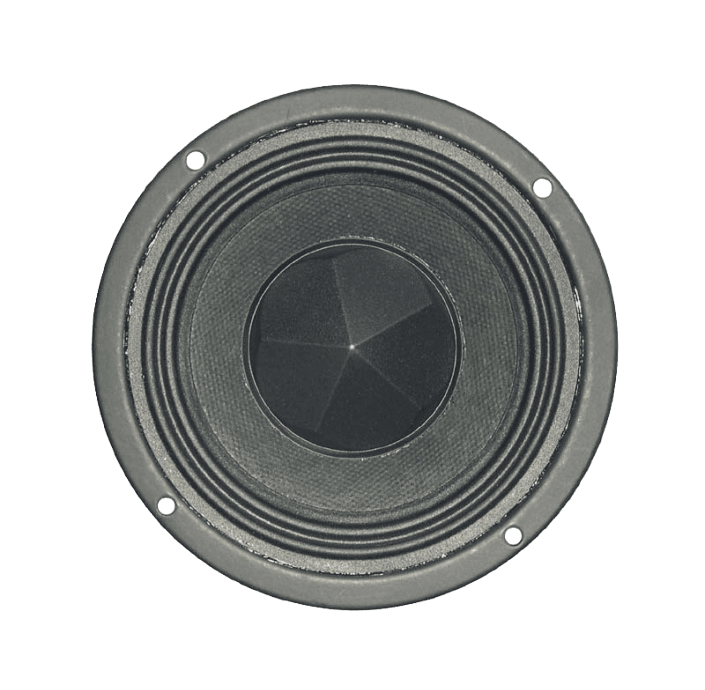

Tang Band
W4-992SD
4"
Xmax3.5mm0%
Qts0.350%
BL6.4Tm-3%
Vas5.7L-23%
Qes0.4+3%
71%
Similarity
£63.95
Scanspeak
12W/8524G00
5"
Xmax3mm-14%
Qts0.32-9%
BL5.4Tm-19%
Vas8.2L+11%
Qes0.35-10%
70%
Similarity
Dayton Audio
RS125-8
5"
Xmax4mm+14%
Qts0.34-3%
BL5.7Tm-14%
Vas4.8L-36%
Qes0.42+8%
69%
Similarity
£289.95

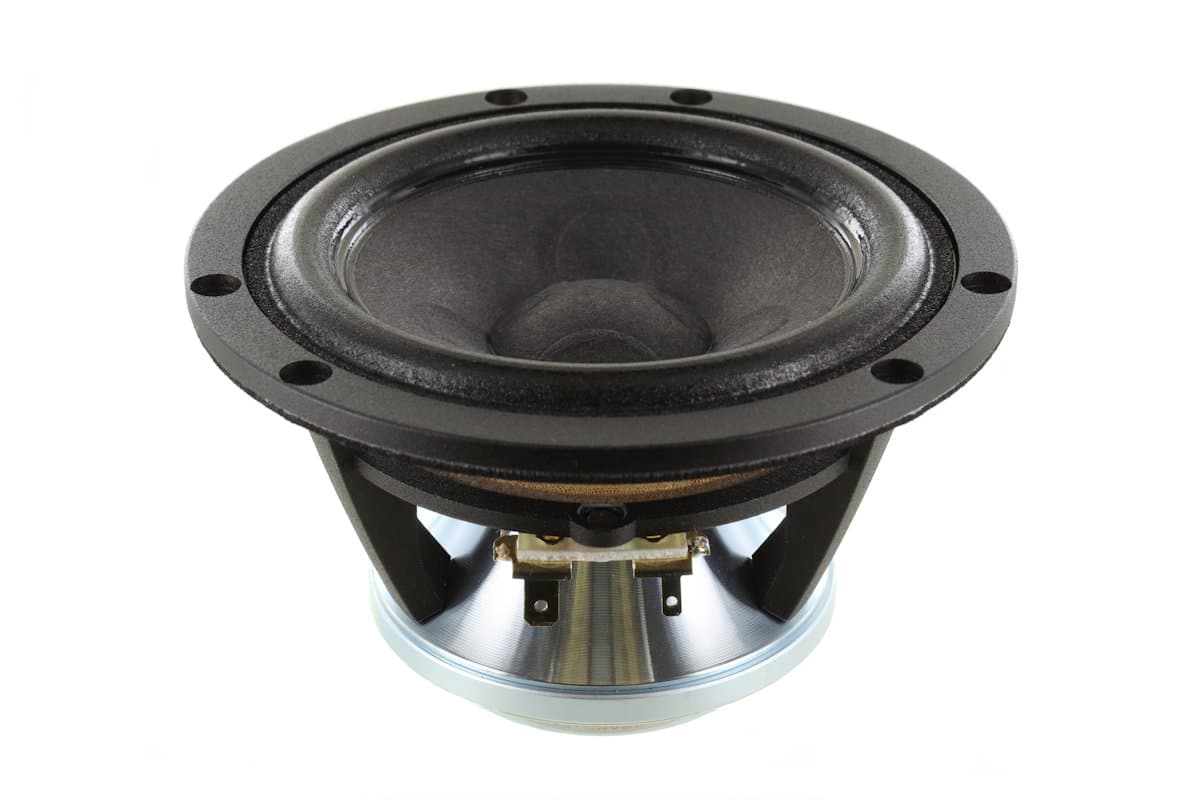

Scanspeak
12MU/8731T00
5"
Xmax3.4mm-3%
Qts0.29-17%
BL6.1Tm-8%
Vas5.8L-22%
Qes0.31-21%
65%
Similarity
Tang Band
W5-704D
5"
Xmax3.3mm-6%
Qts0.38+9%
BL6.2Tm-7%
Vas11.6L+56%
Qes0.46+18%
63%
Similarity

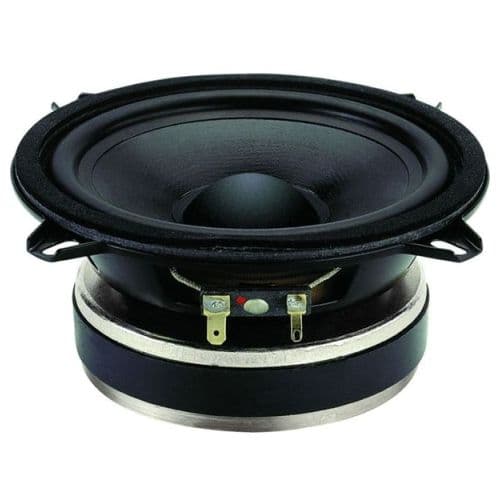

CIARE
CW131
5"
Xmax4mm+14%
Qts0.39+11%
BL5.7Tm-15%
Vas5.3L-28%
Qes0.45+15%
62%
Similarity

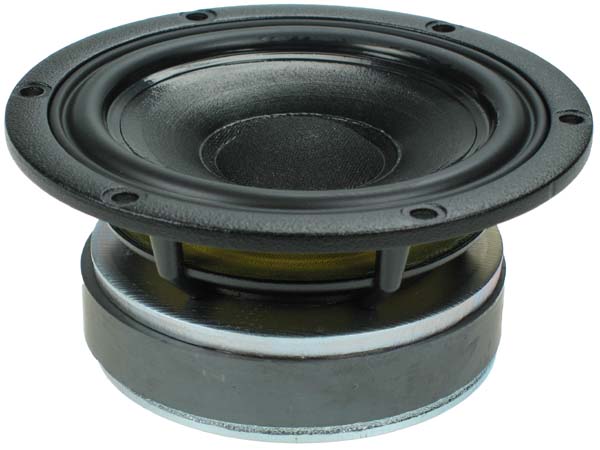

SEAS
H1152-08 CA12RCY
4.5"
Xmax3mm-14%
Qts0.31-11%
BL6.3Tm-5%
Vas5L-32%
Qes0.36-8%
61%
Similarity

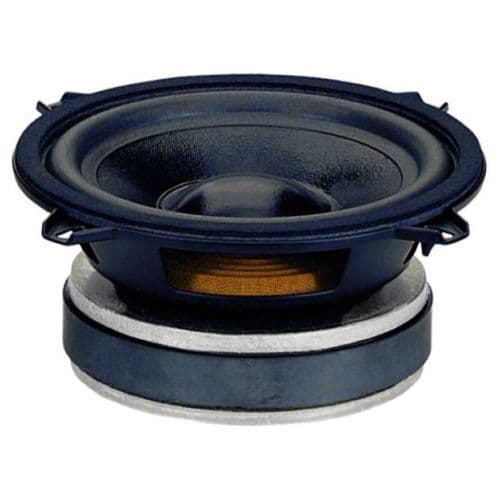

CIARE
HW131
5"
Xmax4.4mm+26%
Qts0.39+11%
BL7Tm+6%
Vas5.6L-24%
Qes0.46+18%
61%
Similarity
£37.58
CIARE
PWA5.38
5"
Xmax3.9mm+11%
Qts0.37+6%
BL8.9Tm+34%
Vas4.5L-39%
Qes0.41+5%
58%
Similarity
Tang Band
W4-1798S
4"
Xmax3mm-14%
Qts0.3-14%
BL5.8Tm-14%
Vas7.4L0%
Qes0.37-5%
58%
Similarity
Tang Band
W4-1798S
4"
Xmax3mm-14%
Qts0.3-14%
BL5.8Tm-14%
Vas7.4L0%
Qes0.37-5%
