LF Driver
Tang Band

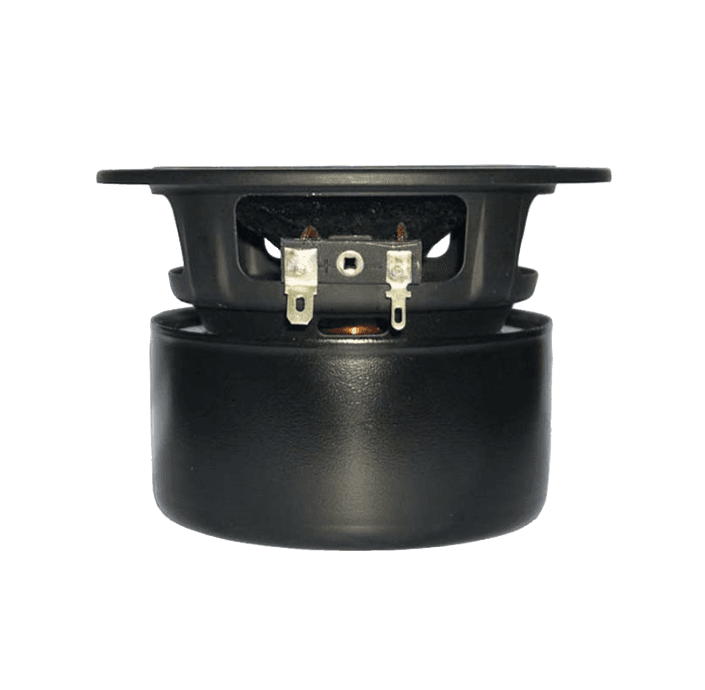

Tang Band W4-992SD
Tang Band W4-992SD is a 4" 8 ohm LF driver rated at 28W RMS. The validated T/S data includes Fs 55Hz, Qts 0.35, Vas 5.7L, Xmax 3.5mm, sensitivity 85.8dB, plus 20cm³ Vd and 138 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
4"
Impedance
8Ω
RMS Power
28W
Sensitivity
85.8dB
EBP
138
Vented alignment
Vd
20cm³
Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
spl240 ptsp1medium
Curve provenanceInspect 2 tracesHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
spl
Frequency response
240 plotted pointsMedium confidence1,144 selected pixels of 1,952 - Trace datasheet-response-trace-poc/v1
impedance
Impedance response
240 plotted pointsMedium confidence2,982 selected pixels of 2,982
T/S Parameters
Valid
Fs55Hz
Qts0.35
Qes0.40
Qms2.9
Vas5.7L
Re7.0Ω
Le0.87mH
BL6.4Tm
Sd57cm²
Mms7g
Xmax3.5mm
SPL86dB
Power28W
Impedance8Ω
Pricing & availability
Price definitionsNo current price found
Pricing may appear after the next vendor refresh.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
