Audio Technology 4 H 52 06 13 SD 8Ω
8 Ω
No current price
- Fs
- 48Hz
- Xmax
- 3.5mm
- SPL
- 88dB
- Pe
- 120W
- BL
- 6.1T·m
- Vd
- 34cm³
- Qts
- 0.33
- Vas
- 16L
Audio Technology 4 H 52 06 13 SD is a 4-inch 8 ohm LF driver rated at 120 W RMS. The validated T/S data includes Fs 48 Hz, Qts 0.33, Vas 16 L, Xmax 3.5 mm, sensitivity 88.4 dB, plus 34 cm³ Vd and 117 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
The published T/S values agree with each other
Thiele/Small
- Fs
- 48Hz
- Qts
- 0.33
- Qes
- 0.41
- Qms
- 1.8
- Vas
- 16L
- Re
- 5.5Ω
- Le
- 0.12mH
Motor and cone
- BL
- 6.1T·m
- Sd
- 96cm²
- Mms
- 9g
- Xmax
- 3.5mm
- Vd †
- 34cm³
Power and response
- Sensitivity †
- 88.4dB
- Manufacturer sensitivity
- 88dB
- Power
- 120W
- Impedance
- 8Ω
- EBP †
- 117 · Leans vented
Other published values
- Cms
- 1.20mm/N
- Rms
- 1.60kg/s
- Xmech
- 32
† Calculated by bits from the published values
What this validation status means
Everything else Audio Technology lists
LF · Primary · 4″
- BL
- 6.1T·m
- Fs
- 48Hz
- Le
- 0.12mH
- Re
- 5.5Ω
- Sd
- 96cm²
- Cms
- 1.20mm/N
- Mms
- 9g
- Qes
- 0.41
- Qms
- 1.8
- Qts
- 0.33
- Rms
- 1.60kg/s
- SPL
- 88.4dB
- Vas
- 16L
- Xmax
- 3.5mm
- Xmech
- 32
- Power
- 120W
- Impedance
- 8Ω
- Sensitivity
- 88dB
- Calculated sensitivity †
- 88.4dB
- Manufacturer sensitivity
- 88dB
02
Compare
Same-size drivers, compared with the 4 H 52 06 13 SD. Clear differences are green when better and red when worse.
This driver4 H 52 06 13 SD
Best price
–
Fs
48 Hz
Qts
0.33
Vas
16 L
BL
6.1 T·m
Xmax
3.5 mm
Sensitivity
88.4 dB
Power
120 W
SB AcousticsSB13PFCR25-8
£23.25Fs45 Hz −6%
Qts0.33 –
Vas13.4 L −16%, better
BL6.2 T·m –
Xmax9 mm +157%, better
Sensitivity87 dB −1.4
Dayton AudioRS125-8
£37.84Fs59 Hz +23%, worse
Qts0.34 +3%
Vas4.8 L −70%, better
BL5.7 T·m −7%
Xmax4 mm +14%, better
Sensitivity85.8 dB −2.6, worse

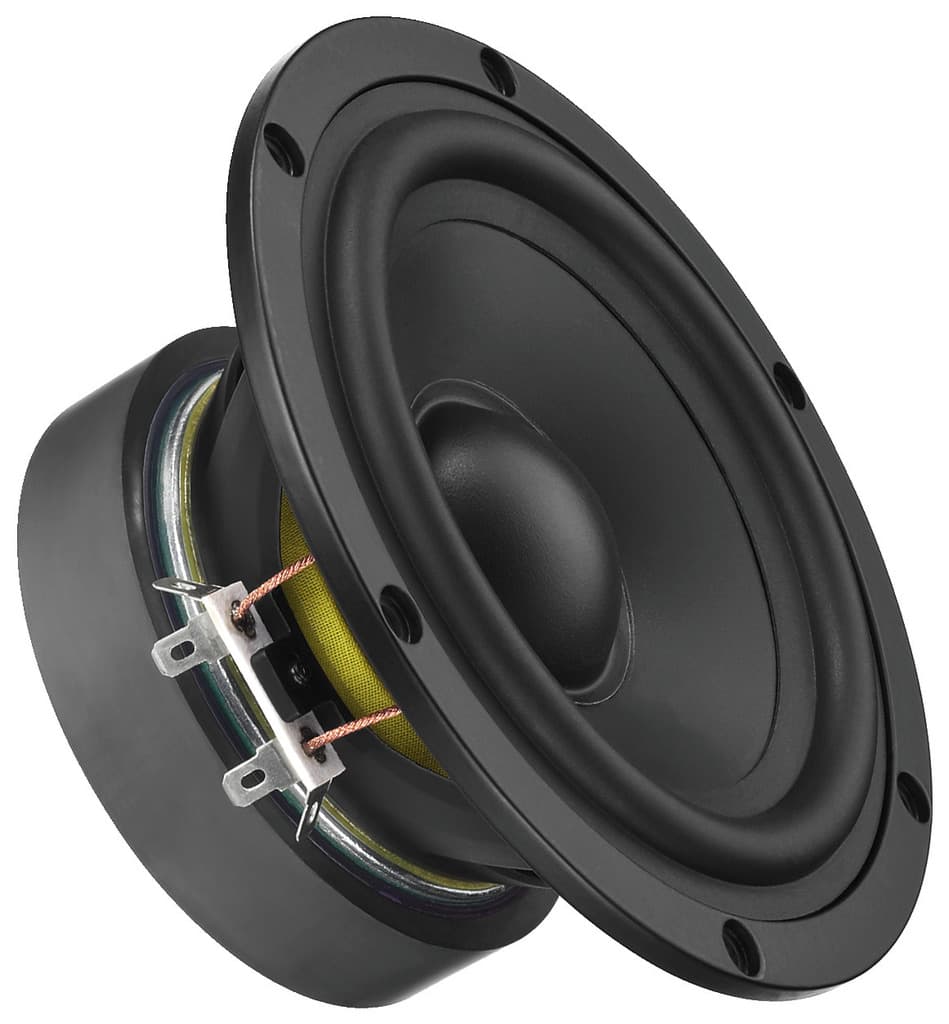

MonacorSPH-5M
£38.11Fs45 Hz −6%
Qts0.41 +24%, worse
Vas13.5 L −16%, better
BL6.4 T·m +5%
Xmax3.5 mm –
Sensitivity86.2 dB −2.2, worse
Eighteen Sound5W430
£44.95Fs52 Hz +8%
Qts0.32 −3%
Vas15 L −6%
BL6.3 T·m +3%
Xmax6 mm +71%, better
Sensitivity89.7 dB +1.3
SB AcousticsSB15MFC30-8
£48.66Fs39 Hz −19%, better
Qts0.37 +12%, worse
Vas17.7 L +11%, worse
BL5.6 T·m −8%
Xmax10 mm +186%, better
Sensitivity86.2 dB −2.2, worse
SB AcousticsSB15NRX2C30-8
£49.12Fs37 Hz −24%, better
Qts0.34 +3%
Vas20 L +25%, worse
BL5.8 T·m −6%
Xmax10 mm +186%, better
Sensitivity86.2 dB −2.2, worse
Scanspeak12W/8524G00
£54.93Fs52 Hz +8%
Qts0.32 −3%
Vas8.2 L −49%, better
BL5.4 T·m −11%, worse
Xmax3 mm −14%, worse
Sensitivity87.2 dB −1.2
SB AcousticsSB15NBAC30-8
£62.57Fs36 Hz −26%, better
Qts0.37 +12%, worse
Vas17 L +6%
BL5.7 T·m −7%
Xmax10 mm +186%, better
Sensitivity84.7 dB −3.7, worse
Sica5 NR 1.5 PL
£64.54Fs61 Hz +27%, worse
Qts0.35 +6%
Vas7.4 L −54%, better
BL6.7 T·m +9%
Xmax3.5 mm –
Sensitivity88.4 dB –
SB AcousticsSB15CAC30-8
£76.56Fs36 Hz −26%, better
Qts0.38 +15%, worse
Vas17.9 L +12%, worse
BL5.7 T·m −7%
Xmax10 mm +186%, better
Sensitivity84.8 dB −3.6, worse
SEASH1152-08 CA12RCY
£80.38Fs57 Hz +19%, worse
Qts0.31 −6%
Vas5 L −69%, better
BL6.3 T·m +4%
Xmax3 mm −14%, worse
Sensitivity86.1 dB −2.3, worse
SEASH1455-08 ER15RLY
£81.20Fs44 Hz −8%
Qts0.32 −3%
Vas15 L −6%
BL5.5 T·m −10%
Xmax5 mm +43%, better
Sensitivity87 dB −1.4
SEASH1216-08 CA15RLY
£90.44Fs44 Hz −8%
Qts0.34 +3%
Vas14 L −13%, better
BL5.5 T·m −10%
Xmax5 mm +43%, better
Sensitivity86.6 dB −1.8
£102.19
Fs36 Hz −25%, better
Qts0.32 −3%
Vas25 L +56%, worse
BL6.3 T·m +3%
Xmax4 mm +14%, better
Sensitivity86.9 dB −1.5
SB AcousticsMR13P-8
£135.77Fs45 Hz −6%
Qts0.31 −6%
Vas12.5 L −22%, better
BL6.1 T·m –
Xmax6 mm +71%, better
Sensitivity87.4 dB −1
SB AcousticsMW13PNW-8
£139.69Fs41 Hz −15%, better
Qts0.31 −6%
Vas15 L −6%
BL5.7 T·m −7%
Xmax10 mm +186%, better
Sensitivity87 dB −1.4
MorelTIW 634ND
£207.50Fs40 Hz −17%, better
Qts0.36 +9%
Vas16.5 L +3%
BL6.5 T·m +7%
Xmax5.5 mm +57%, better
Sensitivity86.4 dB −2, worse
SB AcousticsMW13TX-8
£227.83Fs40 Hz −17%, better
Qts0.32 −3%
Vas14.8 L −7%
BL5.7 T·m −7%
Xmax10 mm +186%, better
Sensitivity86.5 dB −1.9
MorelEW 638
£228.64Fs39 Hz −19%, better
Qts0.32 −3%
Vas20.3 L +27%, worse
BL7.0 T·m +16%, better
Xmax6 mm +71%, better
Sensitivity86.9 dB −1.5
MorelTICW 634ND
£274.84Fs40 Hz −17%, better
Qts0.35 +6%
Vas17.3 L +8%
BL6.6 T·m +8%
Xmax5.5 mm +57%, better
Sensitivity86.8 dB −1.6
£296.39
Fs38 Hz −21%, better
Qts0.36 +9%
Vas14 L −13%, better
BL5.5 T·m −10%
Xmax4 mm +14%, better
Sensitivity84.5 dB −3.9, worse
Tang BandW4-992SD
No current priceFs55 Hz +15%, worse
Qts0.35 +6%
Vas5.7 L −64%, better
BL6.4 T·m +5%
Xmax3.5 mm –
Sensitivity85.8 dB −2.6, worse

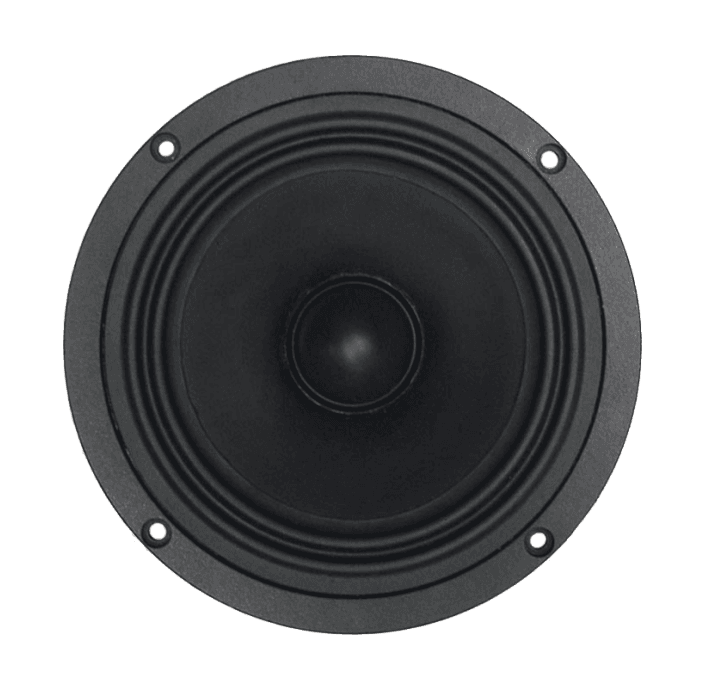

Tang BandW5-704D
No current priceFs55 Hz +15%, worse
Qts0.38 +15%, worse
Vas11.6 L −28%, better
BL6.2 T·m –
Xmax3.3 mm −6%
Sensitivity88.2 dB –
No current price
Fs37 Hz −23%, better
Qts0.33 –
Vas15 L −6%
BL5.3 T·m −13%, worse
Xmax7 mm +100%, better
Sensitivity85 dB −3.4, worse
Tang BandW3-1401SD
No current priceFs75 Hz +56%, worse
Qts0.31 −6%
Vas1.6 L −90%, better
BL5.6 T·m −9%
Xmax3.5 mm –
Sensitivity84.7 dB −3.7, worse
Tang BandW4-657D
No current priceFs70 Hz +46%, worse
Qts0.32 −3%
Vas5.6 L −65%, better
BL5.6 T·m −8%
Xmax3.3 mm −6%
Sensitivity89.4 dB +1
No current price
Fs39 Hz −19%, better
Qts0.35 +6%
Vas14 L −13%, better
BL7.3 T·m +20%, better
Xmax7 mm +100%, better
Sensitivity85.1 dB −3.3, worse
E J JordanEIKONA
No current priceFs43 Hz −10%, better
Qts0.35 +8%
Vas11.0 L −31%, better
BL6.5 T·m +7%
Xmax5 mm +43%, better
Sensitivity85.3 dB −3.1, worse

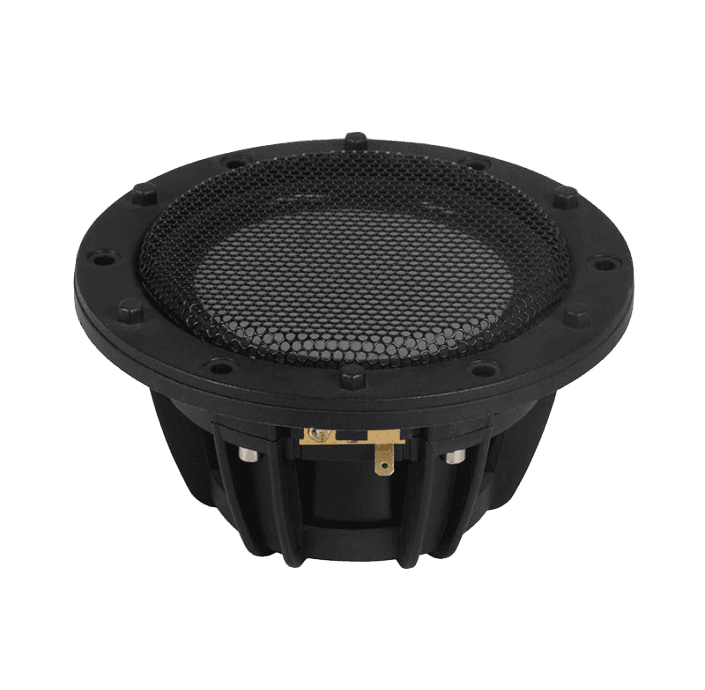

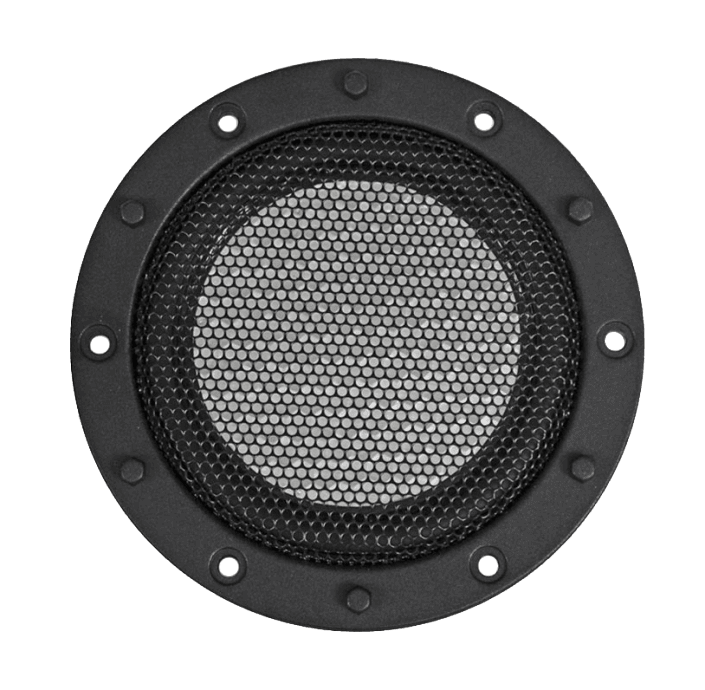

Tang BandW4-1798S
No current priceFs60 Hz +25%, worse
Qts0.30 −9%
Vas7.4 L −54%, better
BL5.8 T·m −6%
Xmax3 mm −14%, worse
Sensitivity88.4 dB –
