SEAS E0049-04S W16NX001 4Ω
4 Ω · 45–2500 Hz
£375.54
Falcon Acoustics · In stock · All 1 offer
- Fs
- 37Hz
- Xmax
- 7mm
- SPL
- 85dB
- Pe
- 80W
- BL
- 5.3T·m
- Vd
- 66cm³
- Qts
- 0.33
- Vas
- 15L

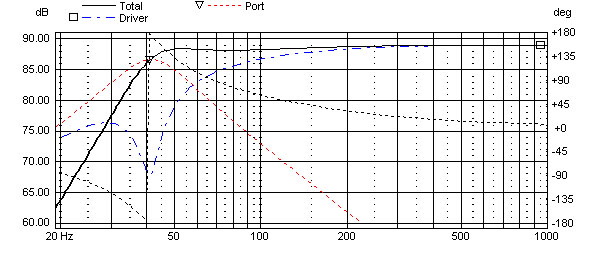

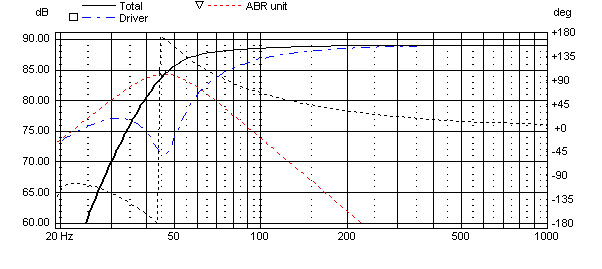

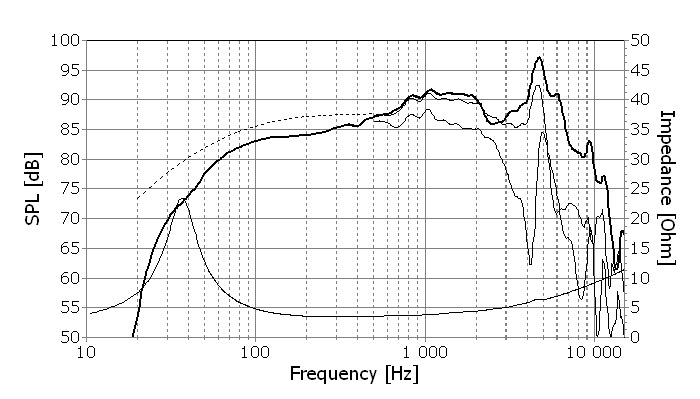

Published graphs
SEAS E0049-04S W16NX001 is a 5-inch 4 ohm LF driver rated at 80 W RMS. The validated T/S data includes Fs 37 Hz, Qts 0.33, Vas 15 L, Xmax 7 mm, sensitivity 85 dB, plus 66 cm³ Vd and 97 EBP. bits tracks UK, EU and US shop prices, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £375.54.
The published T/S values agree with each other

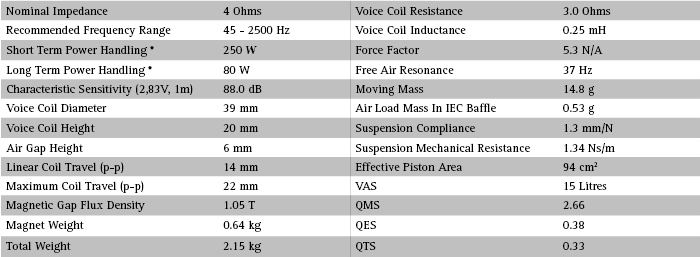

Thiele/Small
- Fs
- 37Hz
- Qts
- 0.33
- Qes
- 0.38
- Qms
- 2.7
- Vas
- 15L
- Re
- 3Ω
- Le
- 0.25mH
Motor and cone
- BL
- 5.3T·m
- Sd
- 94cm²
- Mms
- 15g
- Xmax
- 7mm
- Vd †
- 66cm³
- Voice coil
- 39mm
- Flux density
- 1.05T
Power and response
- Sensitivity †
- 85dB
- Manufacturer sensitivity
- 88dB
- Power
- 80W
- Impedance
- 4Ω
- Range
- 45–2500Hz
- EBP †
- 97 · Sealed or vented

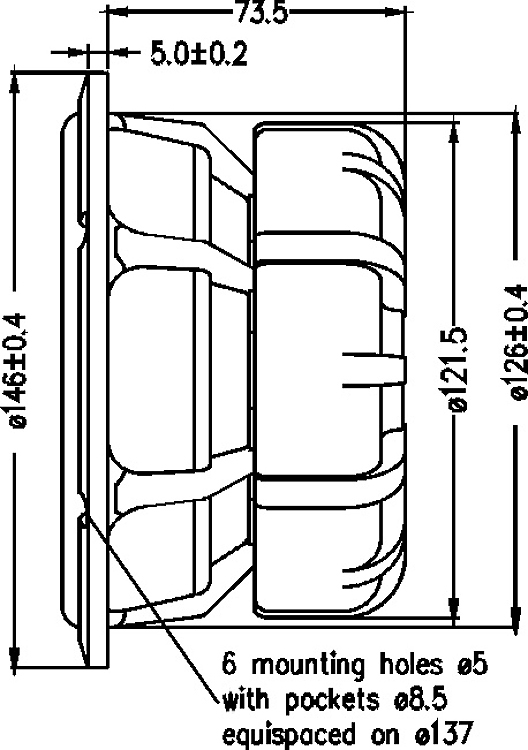

Size and mounting
- Weight
- 2.1kg
Other published values
- Cms
- 1.30mm/N
- Rms
- 1.34kg/s
- Xmech
- 11
- Power Peak
- 250
Sensitivity shows 85.0 dB, calculated from the T/S values. SEAS publishes 88.0 dB, 3.0 dB apart.
† Calculated by bits from the published values
What this validation status means
Everything else SEAS lists
LF · Primary · 5″
- BL
- 5.3T·m
- Fs
- 37Hz
- Le
- 0.25mH
- Re
- 3Ω
- Sd
- 94cm²
- Cms
- 1.30mm/N
- Mms
- 15g
- Qes
- 0.38
- Qms
- 2.7
- Qts
- 0.33
- Rms
- 1.34kg/s
- SPL
- 85dB
- Vas
- 15L
- Xmax
- 7mm
- Xmech
- 11
- Power
- 80W
- Impedance
- 4Ω
- Power Peak
- 250
- Flux density
- 1.05T
- Sensitivity
- 88dB
- Low limit
- 45Hz
- Calculated sensitivity †
- 85dB
- High limit
- 2500Hz
- Manufacturer sensitivity
- 88dB
- Voice coil
- 39mm
- Weight
- 2.1kg
