LF DriverRevelator series
Scanspeak

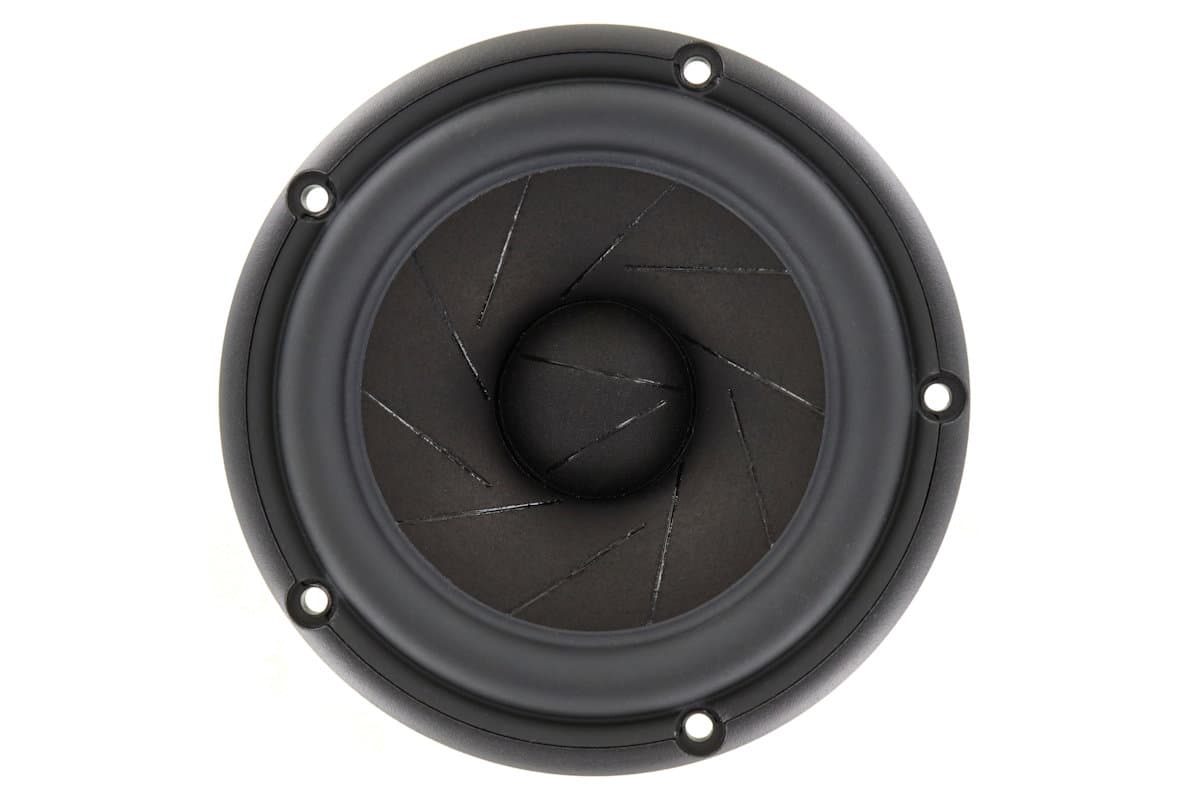

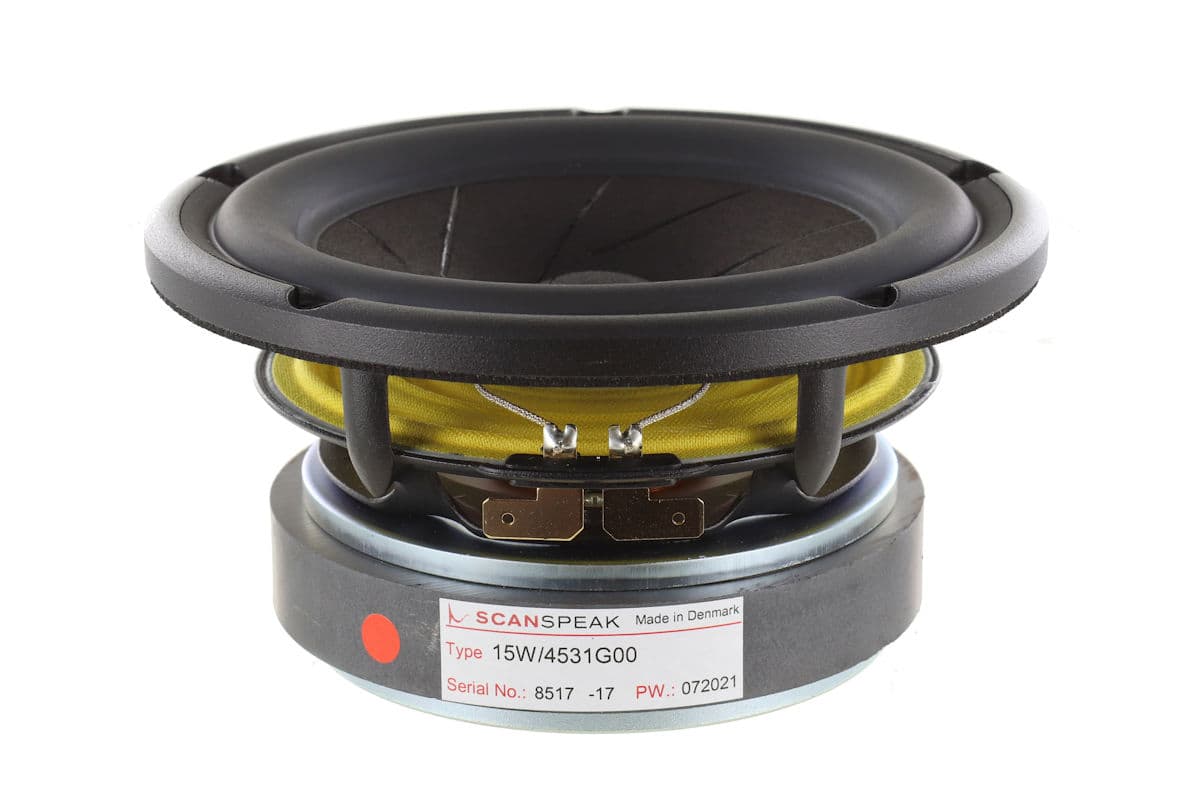

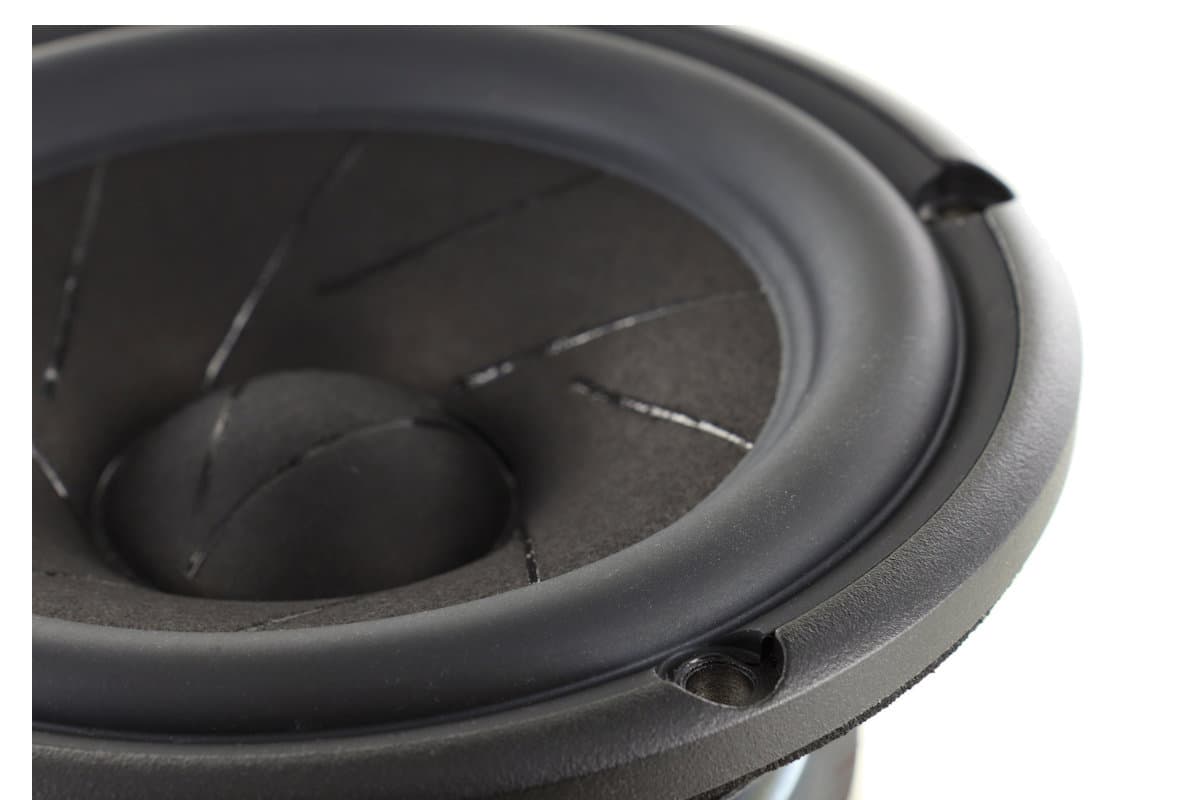

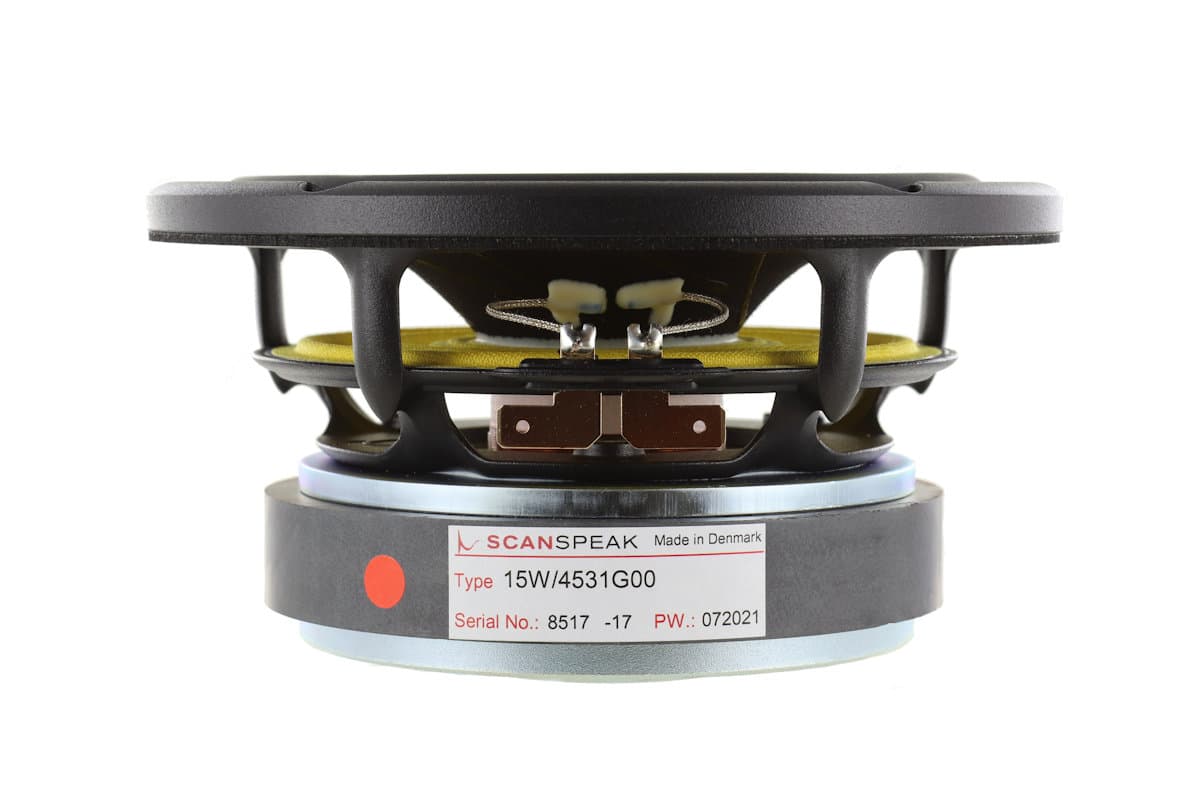

Scanspeak 15W/4531G00
Scanspeak 15W/4531G00 is a 6" 4 ohm LF driver rated at 60W RMS. The validated T/S data includes Fs 40Hz, Qts 0.32, Vas 15.8L, Xmax 6.5mm, sensitivity 86.8dB, plus 62cm³ Vd and 118 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £192.95.
Size
6"
Impedance
4Ω
RMS Power
60W
Sensitivity
86.8dB
EBP
118
Vented alignment
Vd
62cm³
T/S Parameters
Valid
Fs40Hz
Qts0.32
Qes0.34
Qms4.6
Vas15.8L
Re3.4Ω
Le0.25mH
BL5.7Tm
Sd95cm²
Mms13g
Xmax6.5mm
SPL87dB
Power60W
Impedance4Ω
Min Impedance4.4Ω
Voice Coil38mm
Pricing & availability
Price definitionsPrice movement
Best current price
£192.95
inc VAT·Vendor hidden
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Diameter150.0mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Scanspeak
15W/4531G00
6"
Best current price
£192.95
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size.
12 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
24%
Similarity
86% cheaper£27.70
Dayton Audio
DSA135-8
5"
Lower price
Xmax4.9mm-25%
Qts0.38+19%
BL6.2Tm+9%
Vas7.9L-50%
Qes0.47+38%
70%
Similarity
77% cheaper£44.95
Eighteen Sound
5W430
5"
Lower price
Xmax6mm-8%
Qts0.320%
BL6.3Tm+11%
Vas15L-5%
Qes0.36+6%
40%
Similarity
73% cheaper£52.41
Dayton Audio
RS180P-8
7"
Lower price
Xmax6mm-8%
Qts0.34+6%
BL7.2Tm+26%
Vas22L+39%
Qes0.44+29%
65%
Similarity
60% cheaper£77.96
CIARE
HWG130
5"
Lower price
Xmax6.5mm0%
Qts0.34+6%
BL5Tm-12%
Vas12.5L-21%
Qes0.36+6%
63%
Similarity
40% cheaper£115.00
SB Acoustics
MR13PNW-8
5"
Lower price
Xmax6mm-8%
Qts0.3-6%
BL6.2Tm+9%
Vas12.9L-18%
Qes0.32-6%
67%
Similarity
30% cheaper£135.77
SB Acoustics
MR13P-8
5"
Lower price
Xmax6mm-8%
Qts0.31-3%
BL6.1Tm+7%
Vas12.5L-21%
Qes0.33-3%
Image unavailable
35%
Similarity
18% cheaper£158.03
Wavecor
WF182BD13
7"
Lower price
Xmax5.5mm-15%
Qts0.26-19%
BL6.9Tm+21%
Vas20.8L+32%
Qes0.27-21%
69%
Similarity
4% cheaper£185.95
Scanspeak
15W/8531K00
6"
Lower price
Xmax6.5mm0%
Qts0.38+19%
BL6.6Tm+16%
Vas16.7L+6%
Qes0.42+24%
67%
Similarity
2% cheaper£188.95

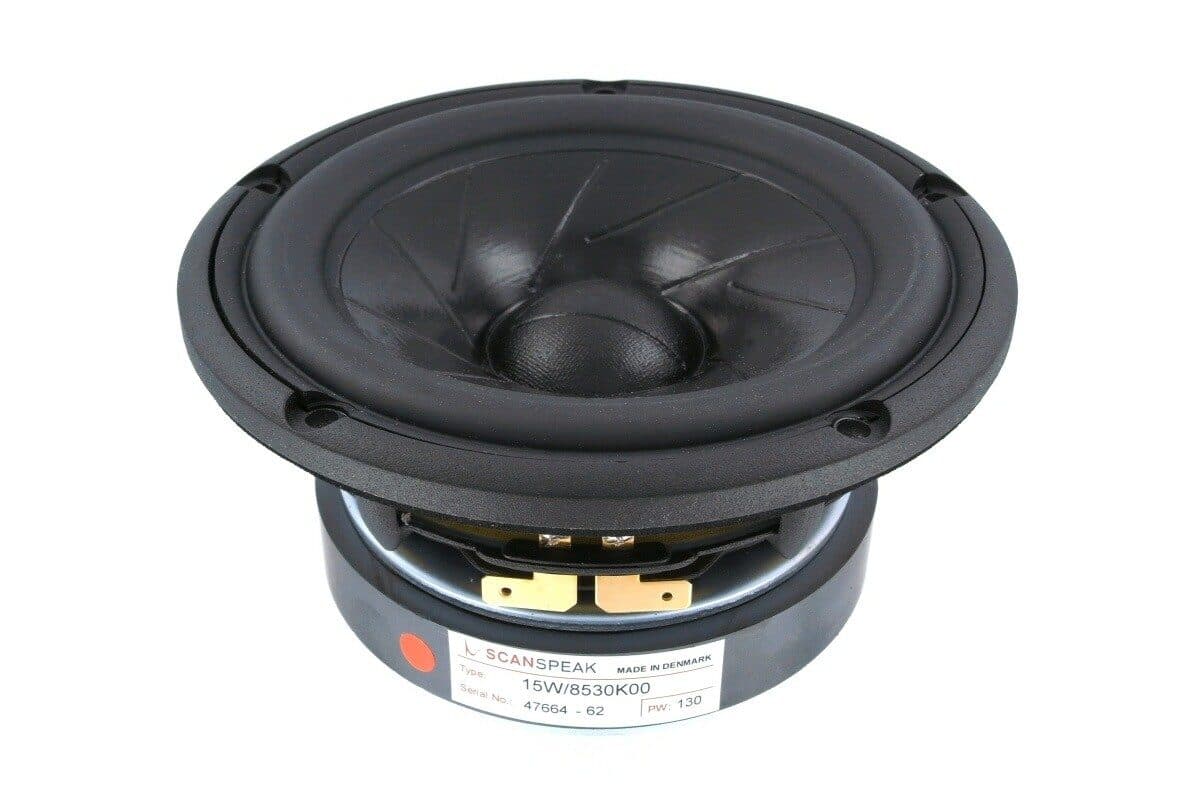

Scanspeak
15W/8530K00
6"
Lower price
Xmax6.5mm0%
Qts0.39+22%
BL6.6Tm+16%
Vas16L+1%
Qes0.43+26%
85%
Similarity
Kartesian
Lom155_vKi
6"
Xmax6mm-8%
Qts0.33+3%
BL6.3Tm+11%
Vas16.6L+5%
Qes0.36+6%
83%
Similarity
Audio Technology
15 J 52 15 06 SD
6"
Xmax5.2mm-20%
Qts0.320%
BL5.5Tm-4%
Vas15L-5%
Qes0.37+9%
69%
Similarity
SEAS
H1216-08 CA15RLY
6"
Xmax5mm-23%
Qts0.34+6%
BL5.5Tm-4%
Vas14L-11%
Qes0.42+24%
