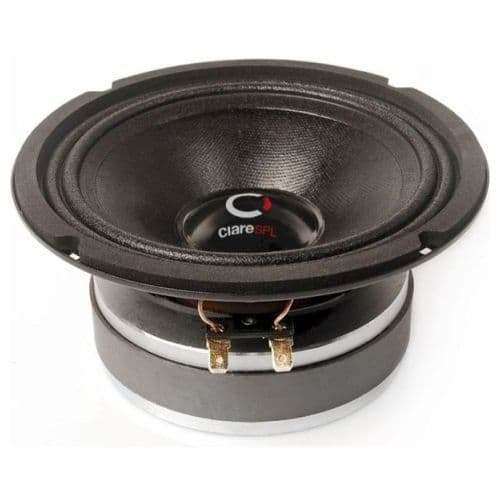

CIARE CM161
CIARE CM161 is a 6.5" 4 ohm LF driver rated at 80W RMS. The validated T/S data includes Fs 66Hz, Qts 0.32, Vas 17.7L, Xmax 1.5mm, sensitivity 93.8dB, plus 20cm³ Vd and 194 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
6.5"
Impedance
4Ω
RMS Power
80W
Sensitivity
93.8dB
EBP
194
Vented alignment
Vd
20cm³
Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
frequency response240 ptsp1medium
Curve provenanceInspect 1 traceHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
frequency response
Frequency response
240 plotted pointsMedium confidence1,890 selected pixels of 1,890
T/S Parameters
Valid
Fs66Hz
Qts0.32
Qes0.34
Qms7.3
Vas17.7L
Re3.5Ω
Le0.11mH
BL6.6Tm
Sd135cm²
Mms9g
Xmax1.5mm
SPL94dB
Power80W
Power Nominal80W
Impedance4Ω
F Low80Hz
F High8000Hz
Voice Coil38mm
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight2.4kg
Diameter165.5mm
Overall Depth80.0mm
Cutout Diameter142.0mm
Bolt Circle Diameter156.0mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
CIARE
CM161
6.5"
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size. Pin a driver to open a side-by-side comparison.
2 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
75%
Similarity

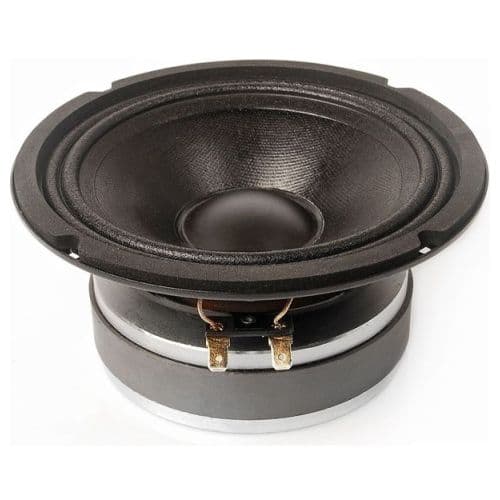

CIARE
PM160
6.5"
Xmax1.8mm+20%
Qts0.31-3%
BL8Tm+22%
Vas17.7L0%
Qes0.32-6%
55%
Similarity

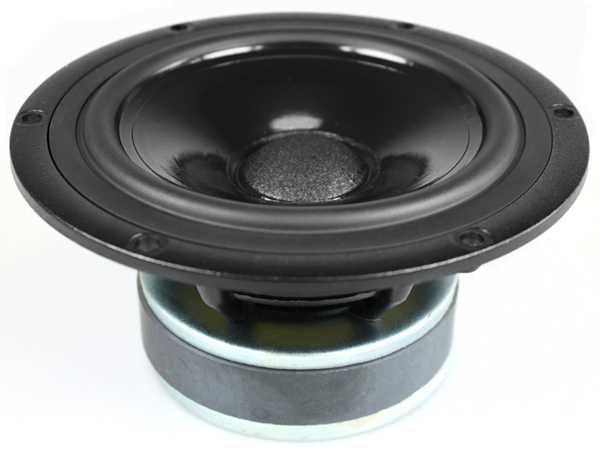

SEAS
