Overview
LF DriverWF182BD series
Wavecor

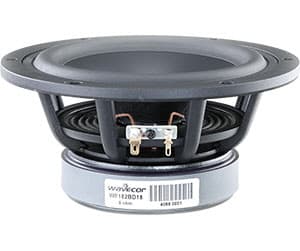

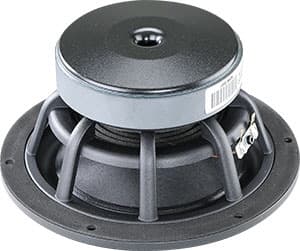

Wavecor WF182BD17
Wavecor WF182BD17 is a 7" 4 ohm LF driver. The validated T/S data includes Fs 33Hz, Qts 0.35, Vas 24.3L, Xmax 5.5mm, sensitivity 85.8dB, plus 72cm³ Vd and 89 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
7"
Impedance
4Ω
Sensitivity
85.8dB
EBP
89
Either alignment
Vd
72cm³
T/S Parameters
Valid
Fs33Hz
Qts0.35
Qes0.37
Qms10.9
Vas24.3L
Re3.2Ω
BL6.5Tm
Sd131cm²
Mms23g
Xmax5.5mm
SPL86dB
Impedance4Ω
Voice Coil39mm
Pricing & availability
Price definitionsNo current price found
Pricing may appear after the next vendor refresh.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Not enough T/S data
Missing Le, RMS power
BASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Not enough T/S data
Missing Le, RMS power
VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Not enough T/S data
Missing Le, RMS power
00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Diameter177.8mm
