LF DriverSPH series
Monacor
Monacor SPH-176
Monacor SPH-176 is a 6.5" 8 ohm LF driver rated at 70W RMS. The validated T/S data includes Fs 39Hz, Qts 0.37, Vas 27L, Xmax 5.5mm, sensitivity 87.6dB, plus 77cm³ Vd and 89 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £58.80.
Size
6.5"
Impedance
8Ω
RMS Power
70W
Sensitivity
87.6dB
90.0dBmanufacturer; using T/S-derived value (2.4dB delta).
EBP
89
Either alignment
Vd
77cm³
T/S Parameters
Valid
Fs39Hz
Qts0.37
Qes0.44
Qms2.3
Vas27.0L
Re6.6Ω
Le0.75mH
BL7.7Tm
Sd140cm²
Mms14g
Xmax5.5mm
SPL88dB
Power70W
Impedance8Ω
F Low3Hz
F High4500Hz
Voice Coil25mm
Pricing & availability
Price definitionsPrice movement
Best current price
£58.80
inc VAT·Vendor hidden
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.

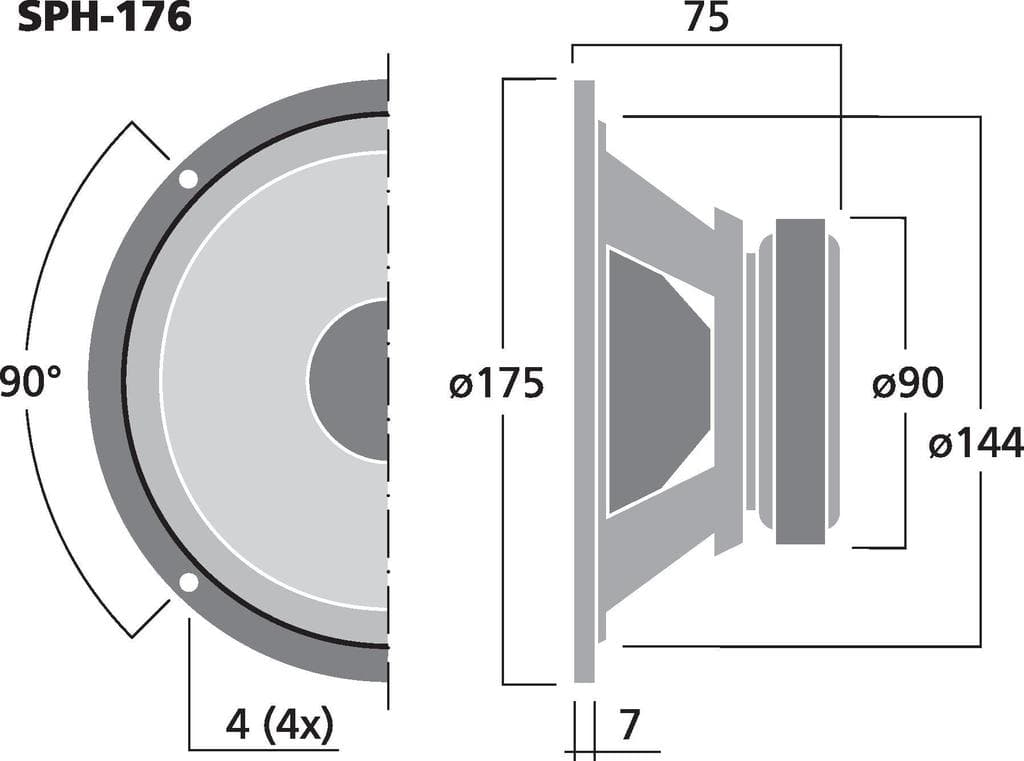

Dimensions & Physical
Weight1.2kg
Diameter175.0mm
Overall Depth75.0mm
Cutout Diameter144.0mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Monacor
SPH-176
6.5"
Best current price
£58.80
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size.
12 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
47%
Similarity
30% cheaper£41.18
Dayton Audio
RS150-8
6"
Lower price
Xmax4mm-27%
Qts0.34-8%
BL5.6Tm-27%
Vas16.6L-39%
Qes0.43-2%
73%
Similarity
11% cheaper£52.41
Dayton Audio
RS180P-8
7"
Lower price
Xmax6mm+9%
Qts0.34-8%
BL7.2Tm-7%
Vas22L-19%
Qes0.440%
74%
Similarity
4% cheaper£56.16
Dayton Audio
RS180S-8
7"
Lower price
Xmax6mm+9%
Qts0.36-3%
BL7.3Tm-5%
Vas23L-15%
Qes0.49+11%
42%
Similarity
10% more£64.95
Monacor
SPH-6M
6.5"
Higher price
Xmax4mm-27%
Qts0.3-19%
BL9.7Tm+26%
Vas17.6L-35%
Qes0.35-20%
71%
Similarity
34% more£78.95
Monacor
SPH-175HQ
6.5"
Higher price
Xmax5.5mm0%
Qts0.42+14%
BL6.4Tm-17%
Vas33L+22%
Qes0.5+14%
53%
Similarity
44% more£84.95
Scanspeak
18W/4434G00
7"
Higher price
Xmax4.3mm-22%
Qts0.35-5%
BL6Tm-22%
Vas20.7L-23%
Qes0.37-16%
55%
Similarity
48% more£86.95
Scanspeak
18W/8434G00
7"
Higher price
Xmax4.2mm-24%
Qts0.43+16%
BL7.2Tm-6%
Vas19.5L-28%
Qes0.46+5%
63%
Similarity
84% more£107.95
Fountek
FW168K
6.5"
Higher price
Xmax5mm-9%
Qts0.43+15%
BL7.9Tm+3%
Vas15.1L-44%
Qes0.52+19%
82%
Similarity
85% more£109.00
Celestion
NTR06-1705D
6.5"
Higher price
Xmax6mm+9%
Qts0.38+2%
BL8.2Tm+6%
Vas21.4L-21%
Qes0.4-8%
54%
Similarity
190% more£170.59
Volt
BM165.4
6.5"
Higher price
Xmax6mm+9%
Qts0.3-19%
BL9.6Tm+25%
Vas32.3L+20%
Qes0.32-27%
65%
Similarity
192% more£171.95
Scanspeak
15W/8534T00
6"
Higher price
Xmax5mm-9%
Qts0.39+5%
BL5.5Tm-29%
Vas30L+11%
Qes0.43-2%
61%
Similarity
216% more£185.95
Scanspeak
15W/8531K00
6"
Higher price
Xmax6.5mm+18%
Qts0.38+3%
BL6.6Tm-14%
Vas16.7L-38%
Qes0.42-5%
