LF DriverPrestige series
SEAS
SEAS H1571-08 U18RNX/P
SEAS H1571-08 U18RNX/P is a 6.5" 8 ohm LF driver rated at 60W RMS. The validated T/S data includes Fs 36Hz, Qts 0.32, Vas 25L, Xmax 4mm, sensitivity 86.9dB, plus 40cm³ Vd and 95 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
6.5"
Impedance
8Ω
RMS Power
60W
Sensitivity
86.9dB
EBP
95
Either alignment
Vd
40cm³
T/S Parameters
Valid
Fs36Hz
Qts0.32
Qes0.38
Qms2.2
Vas25.0L
Re6.2Ω
Le0.81mH
BL6.3Tm
Sd99cm²
Mms10g
Xmax4.0mm
SPL87dB
Power60W
Impedance8Ω
F Low45Hz
F High3000Hz
Voice Coil26mm
Flux Density1.10T
Pricing & availability
Price definitionsNo current price found
Pricing may appear after the next vendor refresh.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.

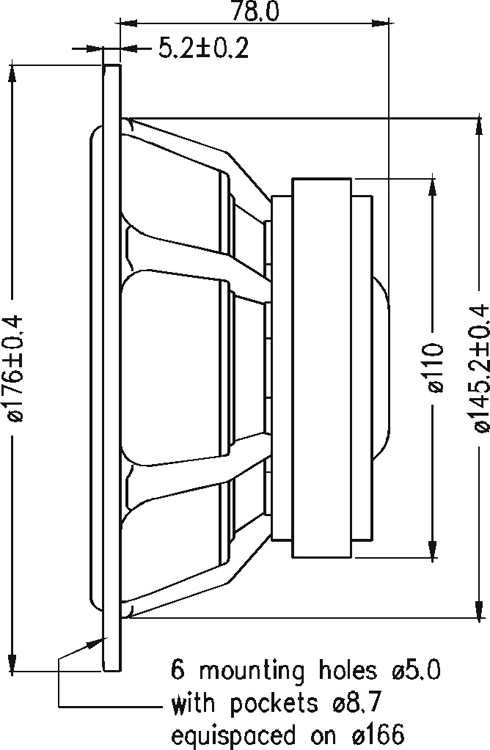

Dimensions & Physical
Weight1.3kg
