LF DriverExcel series
SEAS
SEAS E0042-08S W18NX001
SEAS E0042-08S W18NX001 is a 15" 8 ohm LF driver rated at 80W RMS. The validated T/S data includes Fs 40Hz, Qts 0.34, Vas 24L, Xmax 7mm, sensitivity 87.8dB, plus 88cm³ Vd and 98 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
15"
Impedance
8Ω
RMS Power
80W
Sensitivity
87.8dB
EBP
98
Either alignment
Vd
88cm³

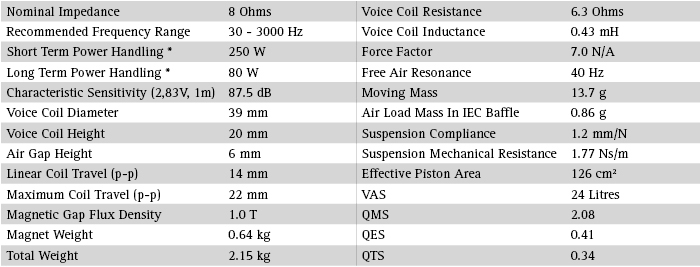

T/S Parameters
Valid
Fs40Hz
Qts0.34
Qes0.41
Qms2.1
Vas24.0L
Re6.3Ω
Le0.43mH
BL7.0Tm
Sd126cm²
Mms14g
Xmax7.0mm
SPL88dB
Power80W
Impedance8Ω
F Low30Hz
F High3000Hz
Voice Coil39mm
Flux Density1.00T
Pricing & availability
Price definitionsNo current price found
Pricing may appear after the next vendor refresh.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.

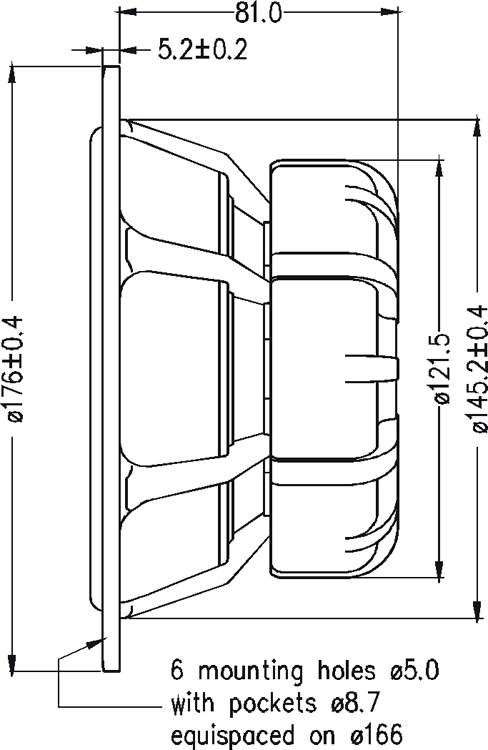

Dimensions & Physical
Weight2.1kg
