LF DriverExcel series
SEAS
SEAS E0076-08 W19NX001
SEAS E0076-08 W19NX001 is a 7" 8 ohm LF driver rated at 200W RMS. The validated T/S data includes Fs 34Hz, Qts 0.41, Vas 24L, Xmax 7mm, sensitivity 85.2dB, plus 95cm³ Vd and 76 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
7"
Impedance
8Ω
RMS Power
200W
Sensitivity
85.2dB
EBP
76
Either alignment
Vd
95cm³

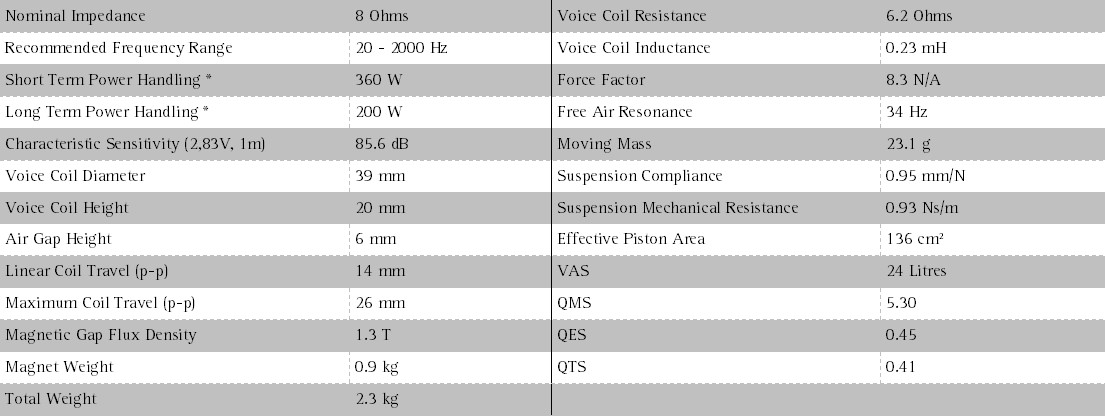

T/S Parameters
Valid
Fs34Hz
Qts0.41
Qes0.45
Qms5.3
Vas24.0L
Re6.2Ω
Le0.23mH
BL8.3Tm
Sd136cm²
Mms23g
Xmax7.0mm
SPL85dB
Power200W
Impedance8Ω
F Low20Hz
F High2000Hz
Voice Coil39mm
Flux Density1.30T
Pricing & availability
Price definitionsNo current price found
Pricing may appear after the next vendor refresh.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.

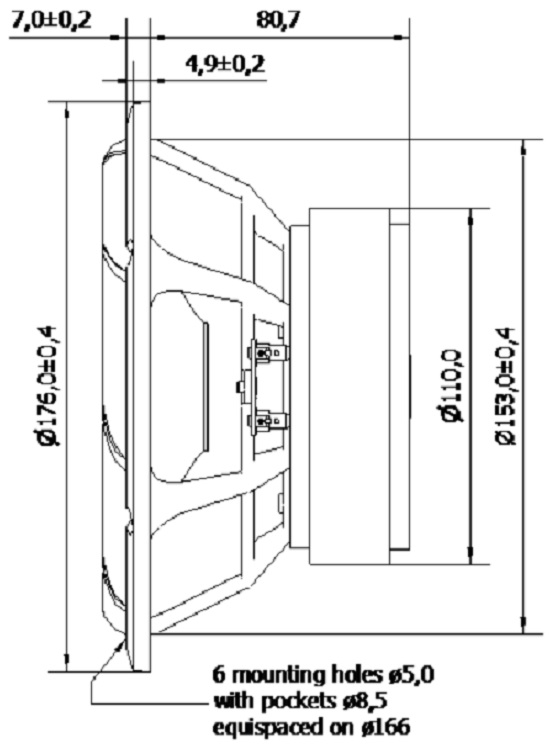

Dimensions & Physical
Weight2.3kg
