6.5-inch LF driver · Excel series

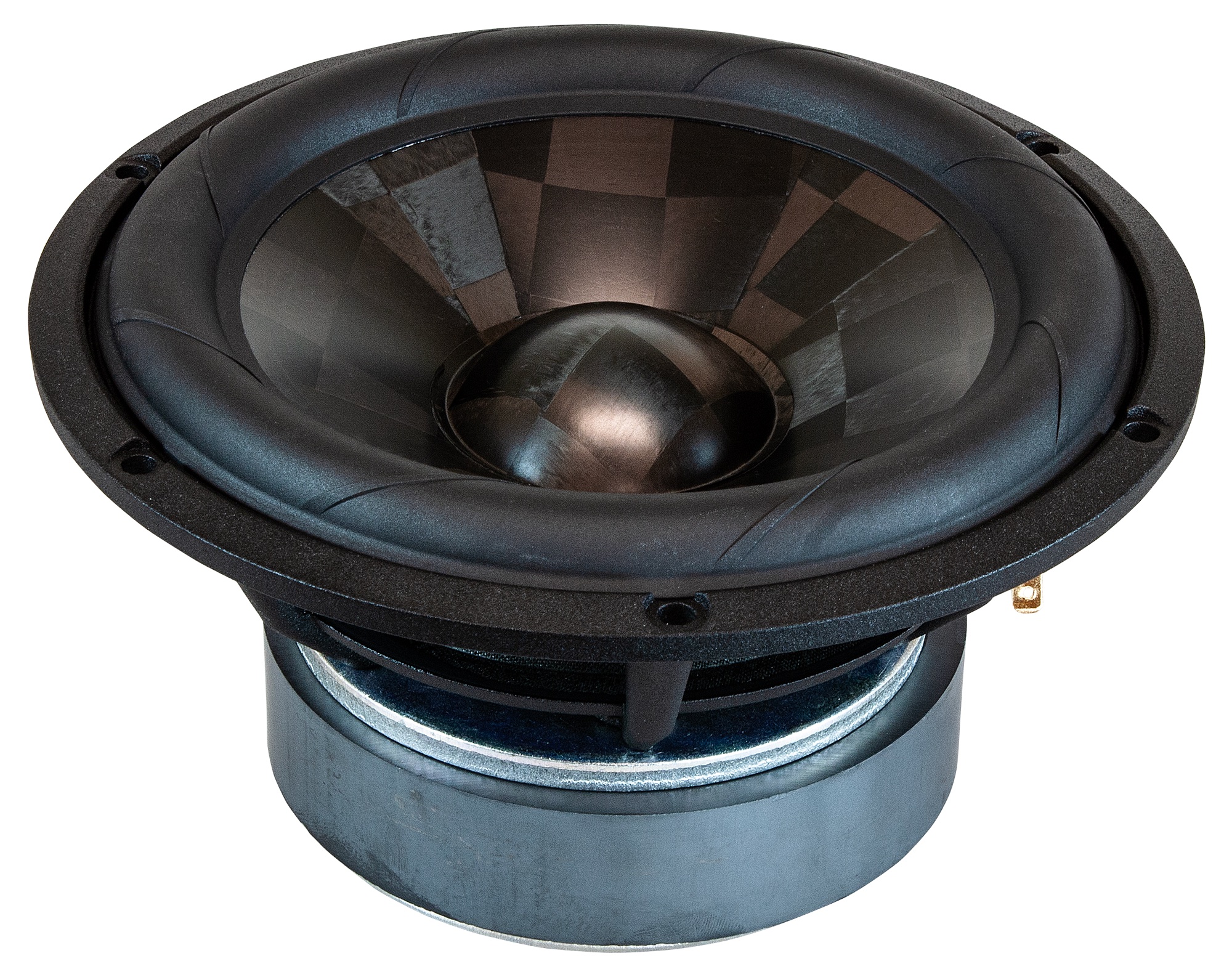

SEAS E0117-08 W19NX004 8Ω
8 Ω
£512.21
SteadySoundImports · 4 in stock · All 1 offer
- Fs
- 33Hz
- Xmax
- 7mm
- SPL
- 87dB
- Pe
- –
- BL
- 7.9T·m
- Vd
- 102cm³
- Qts
- 0.39
- Vas
- 33L

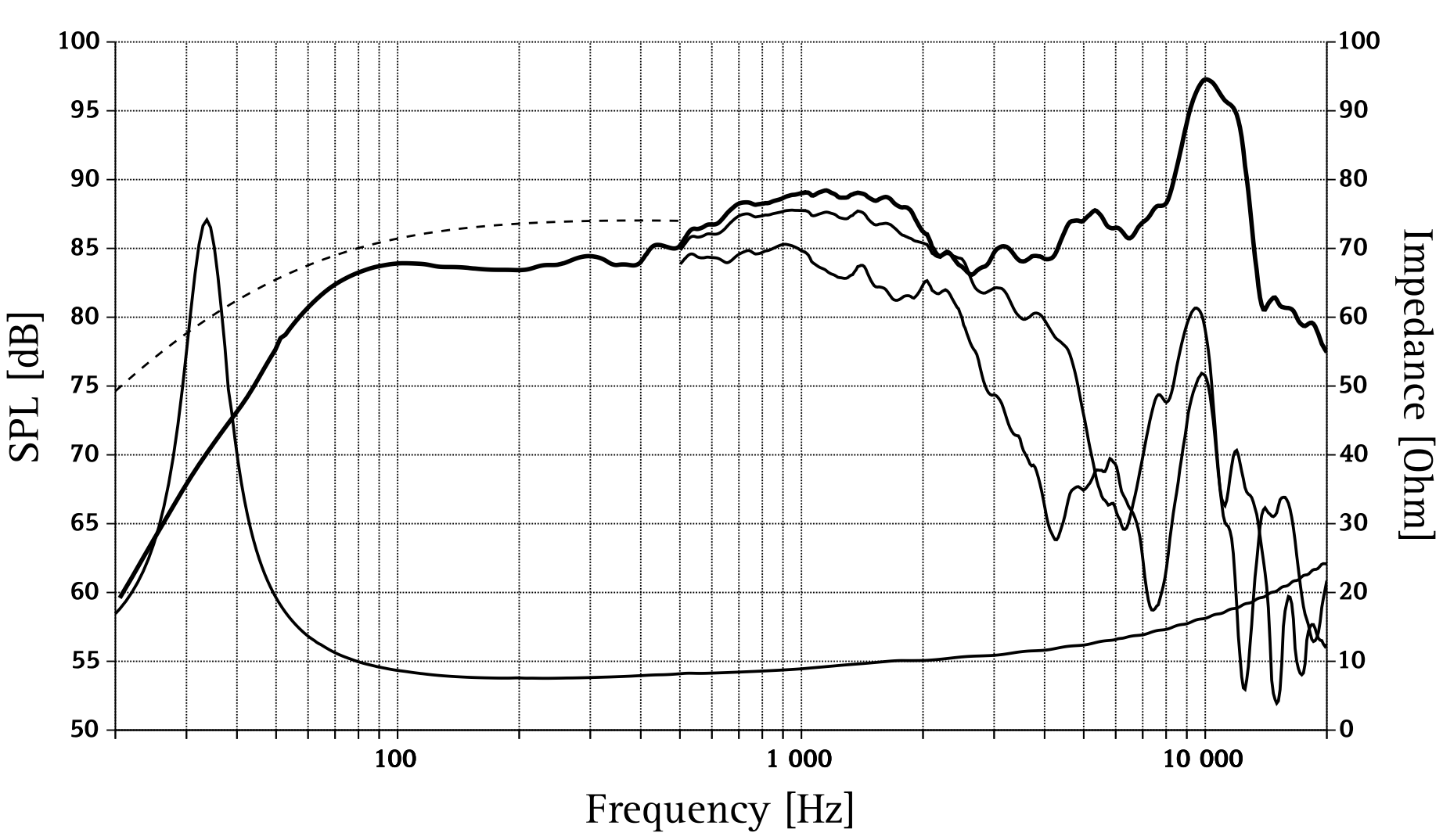

Published graphs
SEAS E0117-08 W19NX004 is a 6.5-inch 8 ohm LF driver. The validated T/S data includes Fs 33 Hz, Qts 0.39, Vas 33 L, Xmax 7 mm, sensitivity 86.5 dB, plus 102 cm³ Vd and 79 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £512.21.
The published T/S values agree with each other
Thiele/Small
- Fs
- 33Hz
- Qts
- 0.39
- Qes
- 0.42
- Qms
- 4.8
- Vas
- 33L
- Re
- 6Ω
Motor and cone
- BL
- 7.9T·m
- Sd
- 146cm²
- Mms
- 21g
- Xmax
- 7mm
- Vd †
- 102cm³
Power and response
- Sensitivity †
- 86.5dB
- Impedance
- 8Ω
- EBP †
- 79 · Sealed or vented
Other published values
- Cms
- 1.06mm/N
- Rms
- 0.91kg/s
† Calculated by bits from the published values
What this validation status means
Everything else SEAS lists
LF · Primary · 6.5″
- BL
- 7.9T·m
- Fs
- 33Hz
- Re
- 6Ω
- Sd
- 146cm²
- Cms
- 1.06mm/N
- Mms
- 21g
- Qes
- 0.42
- Qms
- 4.8
- Qts
- 0.39
- Rms
- 0.91kg/s
- SPL
- 86.5dB
- Vas
- 33L
- Xmax
- 7mm
- Impedance
- 8Ω
- Calculated sensitivity †
- 86.5dB
02
Compare
Same-size drivers, compared with the E0117-08 W19NX004. Clear differences are green when better and red when worse.
This driverE0117-08 W19NX004
Best price
£512.21
Fs
33 Hz
Qts
0.39
Vas
33 L
BL
7.9 T·m
Xmax
7 mm
Sensitivity
86.5 dB
Power
–
PeerlessHDS-P830875
£37.40 · 93% less, betterFs48 Hz +45%, worse
Qts0.39 –
Vas18.6 L −44%, better
BL8.7 T·m +9%
Xmax7.3 mm +5%
Sensitivity88.7 dB +2.2, better
PeerlessHDS-P835025
£37.40 · 93% less, betterFs43 Hz +30%, worse
Qts0.42 +8%
Vas19 L −42%, better
BL8.6 T·m +9%
Xmax7.4 mm +6%
Sensitivity87.1 dB +0.6
MonacorSPH-176
£58.80 · 89% less, betterFs39 Hz +18%, worse
Qts0.37 −5%
Vas27 L −18%, better
BL7.7 T·m –
Xmax5.5 mm −21%, worse
Sensitivity87.6 dB +1.1
Dayton AudioRS180-8
£60.44 · 88% less, betterFs36 Hz +8%
Qts0.31 −21%, better
Vas24.4 L −26%, better
BL7.8 T·m –
Xmax6 mm −14%, worse
Sensitivity86.3 dB –
HiViE6.5
£64.21 · 87% less, betterFs37 Hz +12%, worse
Qts0.32 −18%, better
Vas31 L −6%
BL8.1 T·m –
Xmax5.8 mm −18%, worse
Sensitivity88.3 dB +1.8
CIAREHWB160
£66.59 · 87% less, betterFs43 Hz +30%, worse
Qts0.37 −5%
Vas28 L −15%, better
BL7.3 T·m −8%
Xmax4.5 mm −36%, worse
Sensitivity89.4 dB +2.9, better
WavecorWF182BD12
£119.39 · 77% less, betterFs30 Hz −11%, better
Qts0.37 −5%
Vas32.4 L –
BL8.2 T·m +4%
Xmax5.5 mm −21%, worse
Sensitivity85.4 dB −1.1
VisatonAL 170
£149.36 · 71% less, betterFs38 Hz +15%, worse
Qts0.39 –
Vas34 L +3%
BL6.9 T·m −13%, worse
Xmax11 mm +57%, better
Sensitivity88.4 dB +1.9
£149.36 · 71% less, better
Fs43 Hz +30%, worse
Qts0.37 −5%
Vas22 L −33%, better
BL6.9 T·m −13%, worse
Xmax6 mm −14%, worse
Sensitivity87.9 dB +1.4
Scanspeak15W/8531K00
£150.70 · 71% less, betterFs39 Hz +18%, worse
Qts0.38 –
Vas16.7 L −49%, better
BL6.6 T·m −16%, worse
Xmax6.5 mm −7%
Sensitivity85.8 dB −0.7
Scanspeak15W/8530K00
£157.03 · 69% less, betterFs39 Hz +18%, worse
Qts0.39 –
Vas16 L −52%, better
BL6.6 T·m −16%, worse
Xmax6.5 mm −7%
Sensitivity85.5 dB −1
Scanspeak18W/8542-10
£157.04 · 69% less, betterFs43 Hz +30%, worse
Qts0.35 −10%, better
Vas26 L −21%, better
BL6.9 T·m −13%, worse
Xmax6.5 mm −7%
Sensitivity88.7 dB +2.2, better
WavecorWF182BD20
£192.09 · 62% less, betterFs30 Hz −11%, better
Qts0.37 −5%
Vas32.4 L –
BL8.2 T·m +4%
Xmax5.5 mm −21%, worse
Sensitivity85.4 dB −1.1
£256.08 · 50% less, better
Fs40 Hz +21%, worse
Qts0.34 −13%, better
Vas24 L −27%, better
BL7 T·m −11%, worse
Xmax7 mm –
Sensitivity87.8 dB +1.3
Scanspeak18WU/8747T00
£290.23 · 43% less, betterFs36 Hz +9%
Qts0.38 –
Vas36.2 L +10%
BL7.4 T·m −6%
Xmax9 mm +29%, better
Sensitivity88 dB +1.5
Scanspeak18WU/8741T00
£315.85 · 38% less, betterFs35 Hz +6%
Qts0.39 –
Vas37.1 L +12%, worse
BL7.3 T·m −8%
Xmax9 mm +29%, better
Sensitivity87.6 dB +1.1
AccutonC158-8-085
£332.92 · 35% less, betterFs37 Hz +12%, worse
Qts0.36 −8%
Vas27.3 L −17%, better
BL7.7 T·m –
Xmax5 mm −29%, worse
Sensitivity87.5 dB +1
£597.58 · 17% more, worse
Fs34 Hz +3%
Qts0.41 +5%
Vas24 L −27%, better
BL8.3 T·m +5%
Xmax7 mm –
Sensitivity85.2 dB −1.3
No current price
Fs35 Hz +6%
Qts0.34 −13%, better
Vas31 L −6%
BL7.4 T·m −6%
Xmax7 mm –
Sensitivity87.5 dB +1
CelestionNTR06-1705D
No current priceFs49 Hz +48%, worse
Qts0.38 −3%
Vas21.4 L −35%, better
BL8.2 T·m +3%
Xmax6 mm −14%, worse
Sensitivity90 dB +3.5, better
VisatonAL 170 - 8 OHM
No current priceFs38 Hz +15%, worse
Qts0.39 –
Vas34 L +3%
BL6.9 T·m −13%, worse
Xmax11 mm +57%, better
Sensitivity88.4 dB +1.9
No current price
Fs42 Hz +27%, worse
Qts0.39 –
Vas31 L −6%
BL6.6 T·m −16%, worse
Xmax3 mm −57%, worse
Sensitivity89.4 dB +2.9, better
Supravox165 GMF
No current priceFs70 Hz +112%, worse
Qts0.39 –
Vas40 L +21%, worse
BL5.6 T·m −29%, worse
Xmax6 mm −14%, worse
Sensitivity97.2 dB +10.7, better
HiViS6.5R
No current priceFs41 Hz +24%, worse
Qts0.38 –
Vas23.2 L −30%, better
BL6.5 T·m −18%, worse
Xmax5.8 mm −17%, worse
Sensitivity87.8 dB +1.3
SEASH1456-08 ER18RNX
No current priceFs37 Hz +12%, worse
Qts0.32 −18%, better
Vas32 L −3%
BL7.2 T·m −9%
Xmax6 mm −14%, worse
Sensitivity88.2 dB +1.7
WavecorWF182BD11
No current priceFs34 Hz +3%
Qts0.42 +8%
Vas24.3 L −26%, better
BL8.2 T·m +4%
Xmax5.5 mm −21%, worse
Sensitivity85.4 dB −1.1
WavecorWF182BD19
No current priceFs34 Hz +3%
Qts0.42 +8%
Vas24.3 L −26%, better
BL8.2 T·m +4%
Xmax5.5 mm −21%, worse
Sensitivity85.4 dB −1.1
HiViSS6.5
No current priceFs42 Hz +27%, worse
Qts0.39 –
Vas24.8 L −25%, better
BL6.4 T·m −19%, worse
Xmax5.8 mm −17%, worse
Sensitivity88.1 dB +1.6
HiViSS6.5R
No current priceFs42 Hz +27%, worse
Qts0.39 –
Vas21.6 L −35%, better
BL6.5 T·m −18%, worse
Xmax5.8 mm −17%, worse
Sensitivity87.7 dB +1.2
Tune the match
Choose the published values that matter to your design. Size stays matched to this driver.
Qts
Qes
VasL
Xmaxmm
BLTm
| Shop | Price | Against the lowest | Stock | Link |
|---|---|---|---|---|
SoundImports | £512.21, the lowest price | 4 in stock | Visit shop at SoundImports |
Best price over time
Tracked since 1 Apr
