LF DriverPrestige series
SEAS
SEAS H1456-08 ER18RNX
SEAS H1456-08 ER18RNX is a 15" 8 ohm LF driver rated at 80W RMS. The validated T/S data includes Fs 37Hz, Qts 0.32, Vas 32L, Xmax 6mm, sensitivity 88.2dB, plus 82cm³ Vd and 95 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
15"
Impedance
8Ω
RMS Power
80W
Sensitivity
88.2dB
EBP
95
Either alignment
Vd
82cm³

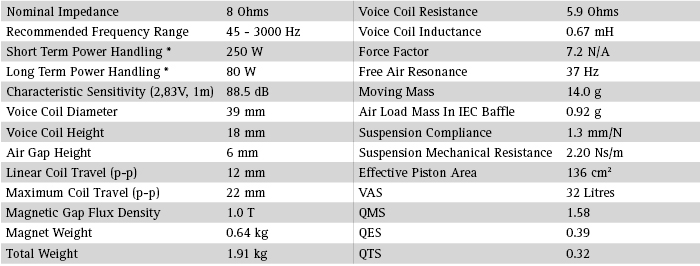

T/S Parameters
Valid
Fs37Hz
Qts0.32
Qes0.39
Qms1.6
Vas32.0L
Re5.9Ω
Le0.67mH
BL7.2Tm
Sd136cm²
Mms14g
Xmax6.0mm
SPL88dB
Power80W
Impedance8Ω
F Low45Hz
F High3000Hz
Voice Coil39mm
Flux Density1.00T
Pricing & availability
Price definitionsNo current price found
Pricing may appear after the next vendor refresh.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.

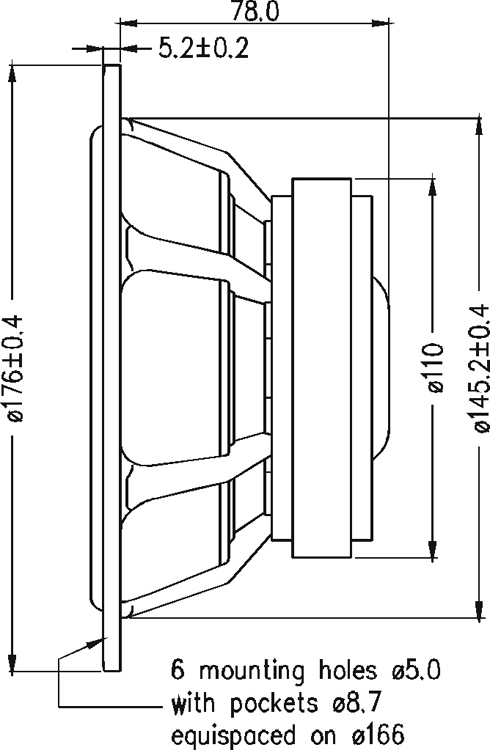

Dimensions & Physical
Weight1.9kg
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
SEAS
H1456-08 ER18RNX
15"
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size.
4 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
76%
Similarity

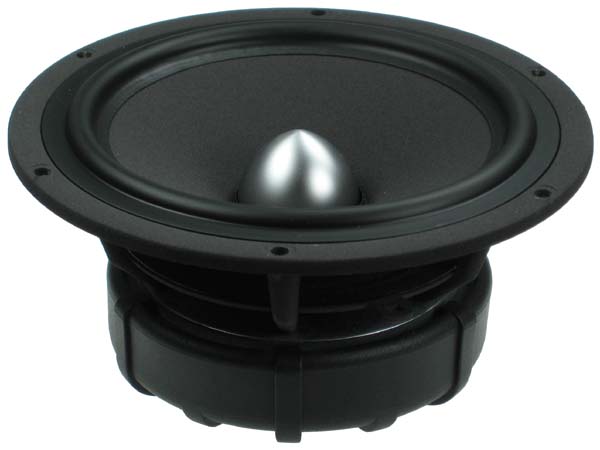

SEAS
E0042-08S W18NX001
15"
Xmax7mm+17%
Qts0.34+6%
BL7Tm-3%
Vas24L-25%
Qes0.41+5%
66%
Similarity

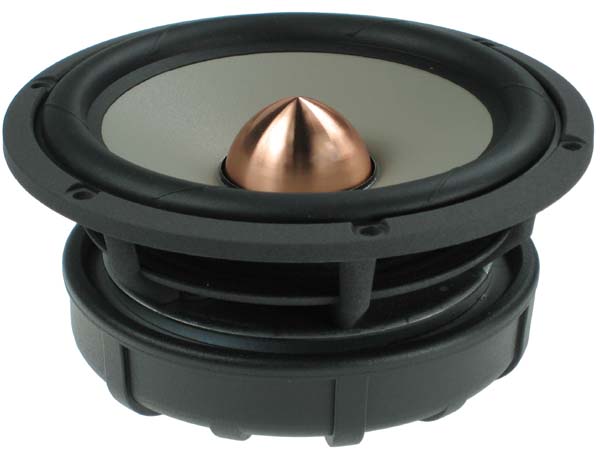

SEAS
E0049-08S W16NX001
15"
Xmax7mm+17%
Qts0.35+9%
BL7.3Tm+1%
Vas14L-56%
Qes0.41+5%
63%
Similarity
SEAS
H1455-08 ER15RLY
15"
Xmax5mm-17%
Qts0.320%
BL5.5Tm-24%
Vas15L-53%
Qes0.41+5%
60%
Similarity

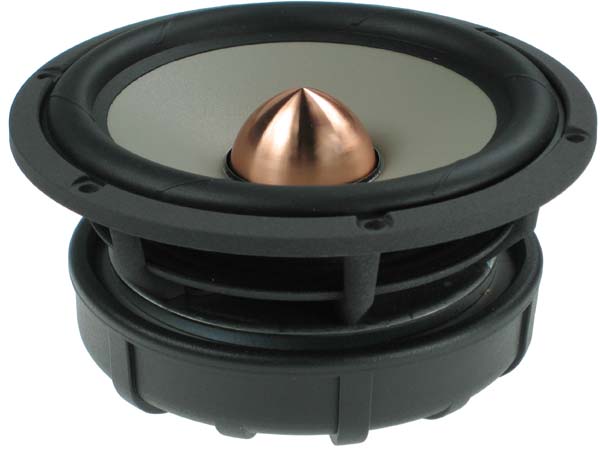

SEAS
E0049-04S W16NX001
15"
Xmax7mm+17%
Qts0.33+3%
BL5.3Tm-26%
Vas15L-53%
Qes0.38-3%
