7-inch LF driver · C-Quenze series · 150 W
Audio Technology 18 H 52 17 06 SD 4Ω
4 Ω
No current price
- Fs
- 36Hz
- Xmax
- 6.3mm
- SPL
- 89dB
- Pe
- 150W
- BL
- 6.6T·m
- Vd
- 86cm³
- Qts
- 0.28
- Vas
- 34L
Audio Technology 18 H 52 17 06 SD is a 7-inch 4 ohm LF driver rated at 150 W RMS. The validated T/S data includes Fs 36 Hz, Qts 0.28, Vas 34 L, Xmax 6.3 mm, sensitivity 88.8 dB, plus 86 cm³ Vd and 109 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
The published T/S values agree with each other
Thiele/Small
- Fs
- 36Hz
- Qts
- 0.28
- Qes
- 0.33
- Qms
- 1.8
- Vas
- 34L
- Re
- 4.2Ω
- Le
- 0.15mH
Motor and cone
- BL
- 6.6T·m
- Sd
- 137cm²
- Mms
- 15g
- Xmax
- 6.3mm
- Vd †
- 86cm³
Power and response
- Sensitivity †
- 88.8dB
- Manufacturer sensitivity
- 89dB
- Power
- 150W
- Impedance
- 4Ω
- EBP †
- 109 · Leans vented
Other published values
- Cms
- 1.28mm/N
- Rms
- 1.90kg/s
- Xmech
- 32
† Calculated by bits from the published values
What this validation status means
Everything else Audio Technology lists
LF · Primary · 7.09″
- BL
- 6.6T·m
- Fs
- 36Hz
- Le
- 0.15mH
- Re
- 4.2Ω
- Sd
- 137cm²
- Cms
- 1.28mm/N
- Mms
- 15g
- Qes
- 0.33
- Qms
- 1.8
- Qts
- 0.28
- Rms
- 1.90kg/s
- SPL
- 88.8dB
- Vas
- 34L
- Xmax
- 6.3mm
- Xmech
- 32
- Power
- 150W
- Impedance
- 4Ω
- Sensitivity
- 89dB
- Calculated sensitivity †
- 88.8dB
- Manufacturer sensitivity
- 89dB
02
Compare
Same-size drivers, compared with the 18 H 52 17 06 SD. Clear differences are green when better and red when worse.
This driver18 H 52 17 06 SD
Best price
–
Fs
36 Hz
Qts
0.28
Vas
34 L
BL
6.6 T·m
Xmax
6.3 mm
Sensitivity
88.8 dB
Power
150 W
Beyma8P300FE
£79.99Fs53 Hz +47%, worse
Qts0.31 +11%, worse
Vas24.8 L −27%, better
BL11.6 T·m +76%, better
Xmax6 mm −5%
Sensitivity92.7 dB +3.9, better
CIAREHWG160
£103.33Fs39 Hz +8%
Qts0.33 +18%, worse
Vas27 L −21%, better
BL5.6 T·m −15%, worse
Xmax6.5 mm +3%
Sensitivity88.6 dB –

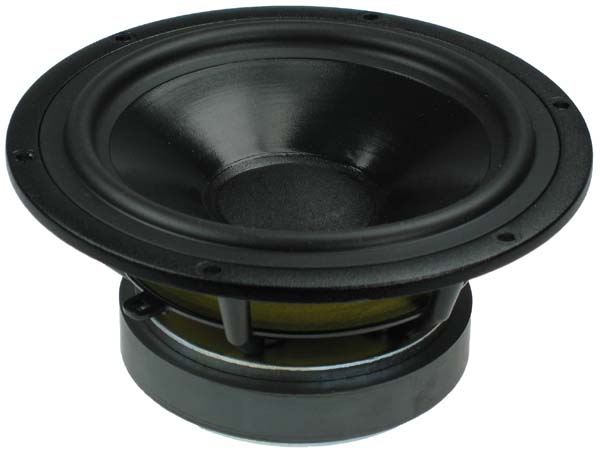

SEASH1215-08 CA18RNX
£109.59Fs35 Hz –
Qts0.31 +11%, worse
Vas33 L –
BL7.2 T·m +9%
Xmax6 mm −5%
Sensitivity87.9 dB −0.9
SEASH1456-08 ER18RNX
£110.55Fs37 Hz –
Qts0.32 +14%, worse
Vas32 L −6%
BL7.2 T·m +9%
Xmax6 mm −5%
Sensitivity88.2 dB −0.6
B&C8MBX51
£113.58Fs60 Hz +67%, worse
Qts0.29 +4%
Vas23 L −32%, better
BL11.4 T·m +73%, better
Xmax6 mm −5%
Sensitivity94.1 dB +5.3, better
Eighteen Sound8NMB420
£121.21Fs59 Hz +64%, worse
Qts0.31 +11%, worse
Vas31 L −9%
BL7 T·m +6%
Xmax5.8 mm −8%
Sensitivity94.8 dB +6, better
MonacorSPH-225C
£130.43Fs39 Hz +8%
Qts0.30 +7%
Vas24 L −29%, better
BL13.2 T·m +100%, better
Xmax6 mm −5%
Sensitivity88.6 dB –

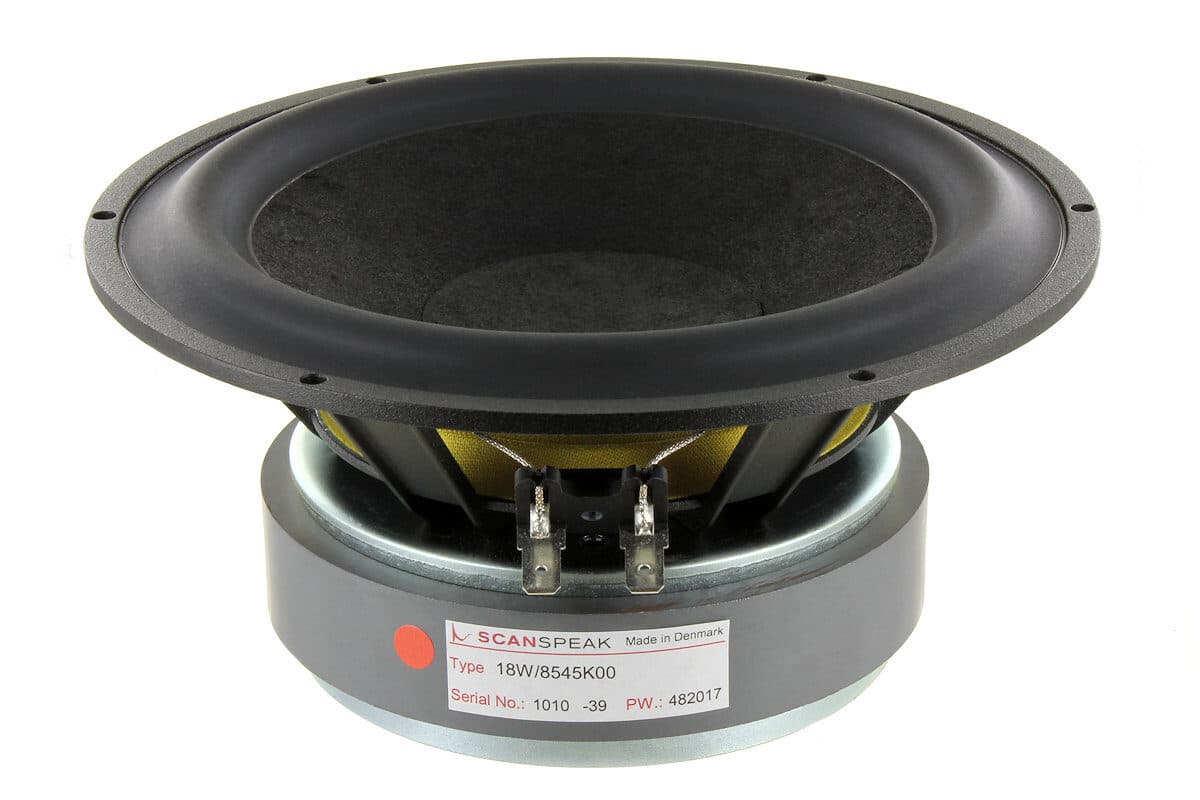

Scanspeak18W/8545K00
