Overview
LF Driver
Eighteen Sound

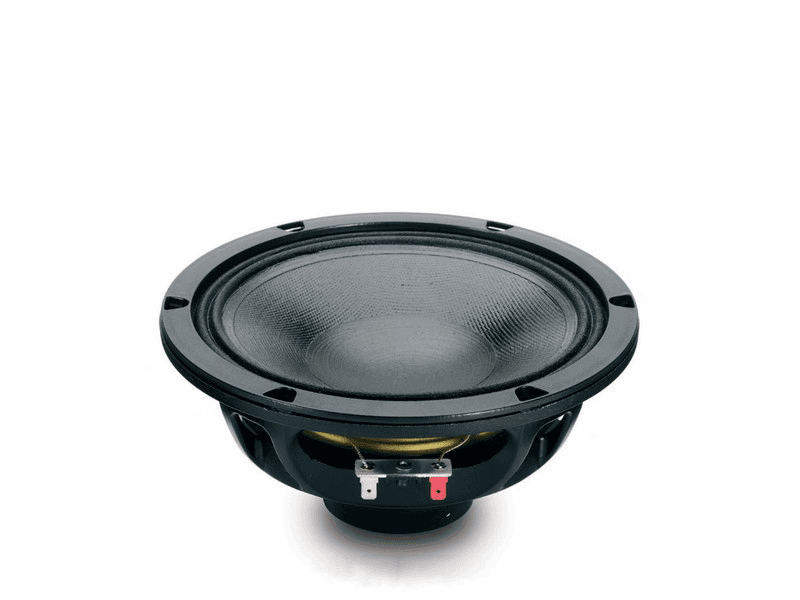

Eighteen Sound 8NMB420
Eighteen Sound 8NMB420 is a 8" 4 ohm LF driver rated at 280W RMS. The validated T/S data includes Fs 59Hz, Qts 0.31, Vas 31L, Xmax 5.8mm, sensitivity 94.8dB, plus 132cm³ Vd and 174 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
8"
Impedance
4Ω
RMS Power
280W
Sensitivity
94.8dB
EBP
174
Vented alignment
Vd
132cm³
T/S Parameters
Valid
Fs59Hz
Qts0.31
Qes0.34
Qms3.8
Vas31.0L
Re2.6Ω
Le0.27mH
BL7.0Tm
Sd227cm²
Mms17g
Xmax5.8mm
SPL95dB
Power280W
Power Nominal280W
Impedance4Ω
F Low60Hz
F High5500Hz
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight1.7kg
Diameter210.0mm
Overall Depth99.0mm
Cutout Diameter186.0mm
Bolt Circle Diameter195.0mm
