PeerlessSDS-P830657
£25.08 · 84% less, betterFs48 Hz +26%, worse
Qts0.47 +81%, worse
Vas20.1 L −3%
BL6.9 T·m –
Xmax5.5 mm –
Sensitivity88 dB –
7-inch LF driver · WF182BD series · 39 mm voice coil
Wavecor WF182BD13 4Ω
4 Ω
£157.84
SteadyParts Express · 8 in stock · Ships from United States · All 2 offers
- Fs
- 38Hz
- Xmax
- 5.5mm
- SPL
- 88dB
- Pe
- –
- BL
- 6.9T·m
- Vd
- 64cm³
- Qts
- 0.26
- Vas
- 21L
Wavecor WF182BD13 is a 7-inch 4 ohm LF driver. The validated T/S data includes Fs 38 Hz, Qts 0.26, Vas 20.8 L, Xmax 5.5 mm, sensitivity 88.3 dB, plus 64 cm³ Vd and 141 EBP. bits tracks UK, EU and US shop prices, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £157.84.
The published T/S values agree with each other
Thiele/Small
- Fs
- 38Hz
- Qts
- 0.26
- Qes
- 0.27
- Qms
- 10.9
- Vas
- 20.8L
- Re
- 3.3Ω
Motor and cone
- BL
- 6.9T·m
- Sd
- 117cm²
- Mms
- 16g
- Xmax
- 5.5mm
- Vd †
- 64cm³
- Voice coil
- 39mm
Power and response
- Sensitivity †
- 88.3dB
- Impedance
- 4Ω
- EBP †
- 141 · Leans vented
Size and mounting
- Diameter
- 177.8mm
Other published values
- Cms
- 1.07mm/N
- Rms
- 0.35kg/s
† Calculated by bits from the published values
What this validation status means
Everything else Wavecor lists
LF · Primary · 7″
- BL
- 6.9T·m
- Fs
- 38Hz
- Re
- 3.3Ω
- Sd
- 117cm²
- Cms
- 1.07mm/N
- Mms
- 16g
- Qes
- 0.27
- Qms
- 10.9
- Qts
- 0.26
- Rms
- 0.35kg/s
- SPL
- 88.3dB
- Vas
- 20.8L
- Xmax
- 5.5mm
- Impedance
- 4Ω
- Calculated sensitivity †
- 88.3dB
- Voice coil
- 39mm
- Diameter
- 177.8mm
02
Compare
Same-size drivers, compared with the WF182BD13. Clear differences are green when better and red when worse.
This driverWF182BD13
Best price
£157.84
Fs
38 Hz
Qts
0.26
Vas
20.8 L
BL
6.9 T·m
Xmax
5.5 mm
Sensitivity
88.3 dB
Power
–
Dayton AudioDS175-8
£37.39 · 76% less, betterFs37 Hz –
Qts0.27 +4%
Vas17 L −18%, better
BL10.4 T·m +51%, better
Xmax5.3 mm −5%
Sensitivity86.3 dB −2, worse
Scanspeak15W/8424G00
£49.40 · 69% less, betterFs46 Hz +21%, worse
Qts0.25 −4%
Vas14.5 L −30%, better
BL6.6 T·m −4%
Xmax2.6 mm −53%, worse
Sensitivity89.2 dB +0.9
Scanspeak15W/8434G00
£56.10 · 64% less, betterFs45 Hz +18%, worse
Qts0.25 −4%
Vas12.8 L −38%, better
BL7.3 T·m +6%
Xmax4.2 mm −24%, worse
Sensitivity88.4 dB –
SB AcousticsSB17NRX2L35-4
£59.85 · 62% less, betterFs41 Hz +8%
Qts0.25 −4%
Vas21.9 L +5%
BL6.5 T·m −7%
Xmax4.8 mm −13%, worse
Sensitivity89.7 dB +1.4
SB AcousticsSB17NRX2L35-8
£71.13 · 55% less, betterFs38 Hz –
Qts0.28 +8%
Vas26.1 L +25%, worse
BL7.8 T·m +14%, better
Xmax4.8 mm −13%, worse
Sensitivity88.7 dB –
Beyma6P200FE
£88.70 · 44% less, betterFs58 Hz +53%, worse
Qts0.26 –
Vas11.1 L −47%, better
BL10.5 T·m +52%, better
Xmax5 mm −9%
Sensitivity91.1 dB +2.8, better
Beyma8WR300
£90.05 · 43% less, betterFs65 Hz +71%, worse
Qts0.27 +4%
Vas15 L −28%, better
BL15.5 T·m +125%, better
Xmax6 mm +9%
Sensitivity93.6 dB +5.3, better
B&C8FMB51
£96.76 · 39% less, betterFs67 Hz +76%, worse
Qts0.28 +8%
Vas20.7 L –
BL11.3 T·m +64%, better
Xmax5.5 mm –
Sensitivity95.1 dB +6.8, better
Eighteen Sound6ND430
£109.14 · 31% less, betterFs64 Hz +68%, worse
Qts0.24 −8%
Vas12.2 L −41%, better
BL7.8 T·m +13%, better
Xmax5 mm −9%
Sensitivity93.1 dB +4.8, better
B&C8MDN51
£136.46 · 14% less, betterFs68 Hz +79%, worse
Qts0.27 +4%
Vas17.5 L −16%, better
BL17.8 T·m +158%, better
Xmax6 mm +9%
Sensitivity94.8 dB +6.5, better
Eighteen Sound8NW650
£138.53 · 12% less, betterFs62 Hz +63%, worse
Qts0.25 −4%
Vas19.0 L −9%
BL19.1 T·m +177%, better
Xmax5.5 mm –
Sensitivity94.4 dB +6.1, better
Scanspeak15M/4531K00
£150.70 · 5% lessFs42 Hz +11%, worse
Qts0.27 +4%
Vas16 L −23%, better
BL6 T·m −13%, worse
Xmax3 mm −45%, worse
Sensitivity88.3 dB –
WavecorWF182BD03
£190.66 · 21% more, worseFs39 Hz –
Qts0.29 +12%, worse
Vas24.4 L +17%, worse
BL6.8 T·m –
Xmax5.5 mm –
Sensitivity88.9 dB +0.6
WavecorWF182BD16
£191.74 · 21% more, worseFs37 Hz –
Qts0.30 +15%, worse
Vas23 L +11%, worse
BL8.5 T·m +23%, better
Xmax5.5 mm –
Sensitivity87.8 dB −0.5
B&C8CXN51
£224.40 · 42% more, worseFs68 Hz +79%, worse
Qts0.27 +4%
Vas17 L −18%, better
BL12.6 T·m +83%, better
Xmax6 mm +9%
Sensitivity94.7 dB +6.4, better
Scanspeak15WU/4741T00
£261.31 · 66% more, worseFs34 Hz −11%, better
Qts0.23 −12%, better
Vas20 L −4%
BL6 T·m −13%, worse
Xmax9 mm +64%, better
Sensitivity87 dB −1.3
AccutonC158-6-851
£293.02 · 86% more, worseFs31 Hz −18%, better
Qts0.28 +8%
Vas25.7 L +24%, worse
BL8.7 T·m +26%, better
Xmax5 mm −9%
Sensitivity86.2 dB −2.1, worse
Scanspeak15WU/8741T00
£301.39 · 91% more, worseFs35 Hz −8%
Qts0.26 –
Vas19.9 L −4%
BL7.5 T·m +9%
Xmax9 mm +64%, better
Sensitivity86.9 dB −1.4
£373.14 · 136% more, worse
Fs34 Hz −11%, better
Qts0.26 –
Vas30 L +44%, worse
BL8.4 T·m +22%, better
Xmax5 mm −9%
Sensitivity88 dB –

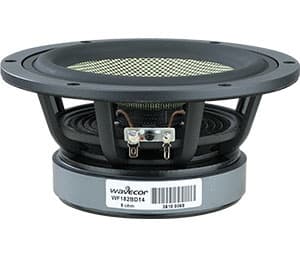

WavecorWF182BD14
No current priceFs36 Hz −5%
Qts0.25 −4%
Vas23 L +11%, worse
BL6.9 T·m –
Xmax5.5 mm –
Sensitivity88.2 dB –
PurifiPTT6.5W04-NFA-06
No current priceFs32 Hz −16%, better
Qts0.26 –
Vas28.3 L +36%, worse
BL7.6 T·m +10%, better
Xmax5.9 mm +7%
Sensitivity87.2 dB −1.1
WavecorWF182BD04
No current priceFs34 Hz −11%, better
Qts0.25 −4%
Vas32.4 L +56%, worse
BL6.8 T·m –
Xmax5.5 mm –
Sensitivity88.9 dB +0.6
PurifiPTT6.5W04-NAA-08
No current priceFs33 Hz −13%, better
Qts0.30 +15%, worse
Vas23.3 L +12%, worse
BL7.7 T·m +12%, better
Xmax5.9 mm +7%
Sensitivity86.3 dB −2, worse
PurifiPTT6.5M04-NAA-08
No current priceFs36 Hz −5%
Qts0.27 +4%
Vas22.7 L +9%
BL8.2 T·m +19%, better
Xmax2.9 mm −47%, worse
Sensitivity87.8 dB −0.5
Dayton AudioPS65LP-4
No current priceFs67 Hz +77%, worse
Qts0.24 −8%
Vas17.3 L −17%, better
BL6 T·m −13%, worse
Xmax4 mm −27%, worse
Sensitivity95.1 dB +6.8, better
No photo
PHL Audio1343
No current priceFs40 Hz +5%
Qts0.28 +8%
Vas29.9 L +44%, worse
BL8.1 T·m +17%, better
Xmax5 mm −9%
Sensitivity90.2 dB +1.9
No photo
PHL Audio1343NDU
No current priceFs40 Hz +5%
Qts0.28 +8%
Vas29.9 L +44%, worse
BL8.1 T·m +17%, better
Xmax5 mm −9%
Sensitivity90.2 dB +1.9
Dayton AudioPM180-8
No current priceFs53 Hz +40%, worse
Qts0.28 +8%
Vas28 L +35%, worse
BL7.7 T·m +12%, better
Xmax4.6 mm −16%, worse
Sensitivity93.5 dB +5.2, better
Tang BandW6-1559S
No current priceFs45 Hz +18%, worse
Qts0.24 −8%
Vas13.3 L −36%, better
BL13.7 T·m +99%, better
Xmax5.5 mm –
Sensitivity88.9 dB +0.6
Tune the match
Choose the published values that matter to your design. Size stays matched to this driver.
Qts
Qes
VasL
Xmaxmm
BLTm
| Shop | Price | Against the lowest | Stock | Link |
|---|---|---|---|---|
Parts Express Import VAT and duty may apply | £157.84, the lowest price | 8 in stock | Visit shop at Parts Express | |
Lautsprechershop Import VAT and duty may apply | £191.74 | 22% above the lowest price | Stock not listed | Visit shop at Lautsprechershop |
Best price over time
Tracked since 22 Jul
