Overview
LF Driver
Eighteen Sound

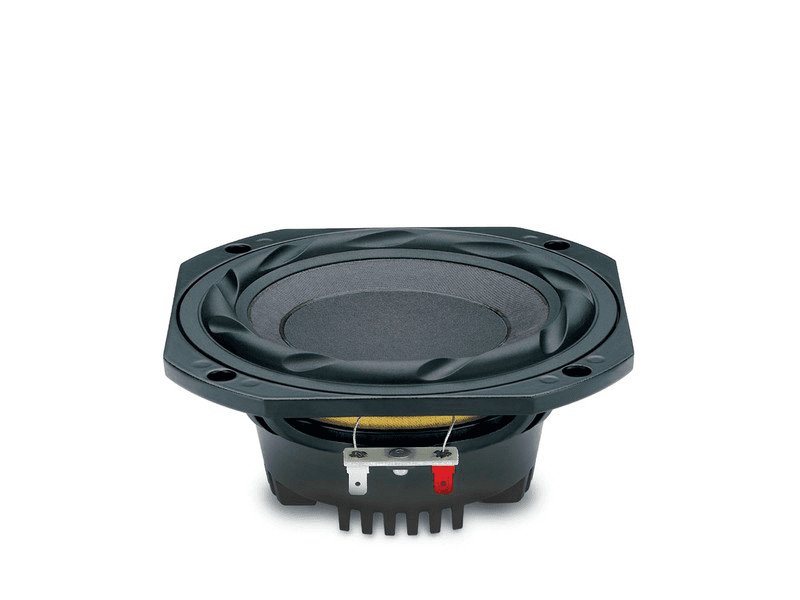

Eighteen Sound 6ND430
Eighteen Sound 6ND430 is a 6.5" 4 ohm LF driver rated at 200W RMS. The validated T/S data includes Fs 64Hz, Qts 0.24, Vas 12.2L, Xmax 5mm, sensitivity 93.1dB, plus 67cm³ Vd and 256 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
6.5"
Impedance
4Ω
RMS Power
200W
Sensitivity
93.1dB
EBP
256
Vented alignment
Vd
67cm³
Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
frequency response174 ptsp2medium
Curve provenanceInspect 2 tracesHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v2
frequency response
Frequency response
174 plotted pointsSource file SHA-256 9f8aed4be13c…Medium confidence2,393 selected pixels of 2,857 - Trace datasheet-response-trace-poc/v2
impedance
Impedance response
240 plotted pointsSource file SHA-256 9f8aed4be13c…Medium confidence472 selected pixels of 837
T/S Parameters
Valid
Fs64Hz
Qts0.24
Qes0.25
Qms6.5
Vas12.2L
Re2.9Ω
Le0.17mH
BL7.8Tm
Sd133cm²
Mms14g
Xmax5.0mm
SPL93dB
Power200W
Power Nominal200W
Impedance4Ω
F Low63Hz
F High5500Hz
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight1.3kg
Diameter162.0mm
Overall Depth73.0mm
Cutout Diameter148.0mm
Bolt Circle Diameter170.0mm
