Eighteen Sound 6ND430 16Ω

LF Driver
WatchWatch priceSimSimulate
  1. Home
  2. /Drivers
  3. /Eighteen Sound
  4. /6ND430

Media

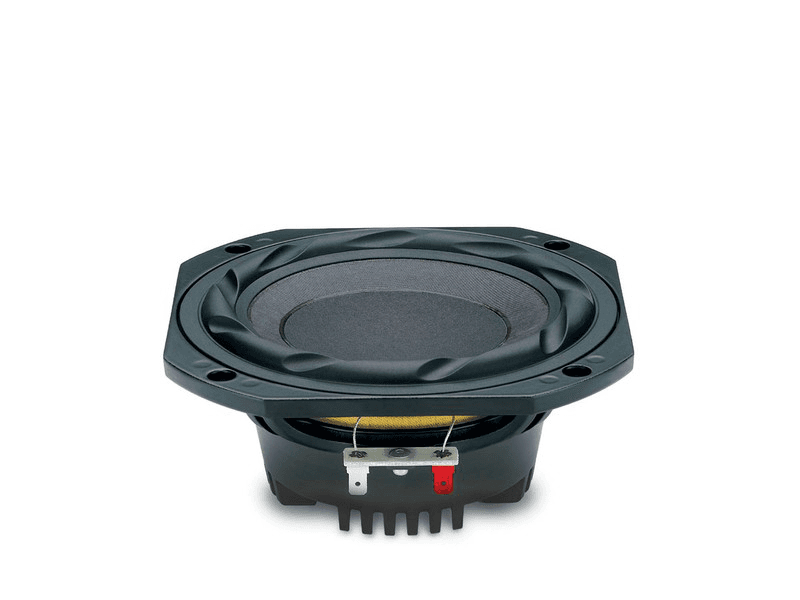

Eighteen Sound 6ND430 6.5 inch 16 ohm loudspeaker driver

Overview

LF Driver
Eighteen Sound

Eighteen Sound 6ND430

Eighteen Sound 6ND430 is a 6.5" 16 ohm LF driver rated at 200W RMS. The validated T/S data includes Fs 66Hz, Qts 0.30, Vas 12.6L, Xmax 5mm, sensitivity 92.6dB, plus 67cm³ Vd and 206 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.

Size
6.5"
Impedance
16Ω
RMS Power
200W
Sensitivity
92.6dB
94.0dBmanufacturer; using T/S-derived value (1.4dB delta).
EBP
206
Vented alignment
Vd
67cm³
Datasheet

Datasheet traces

Frequency and impedance curves traced from the manufacturer PDF.

2 curves
83828079785001k2k5kHzdBfrequency response
frequency response153 ptsp2medium
Curve provenanceInspect 2 tracesHide details

These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works

  • frequency response

    Frequency response

    Trace datasheet-response-trace-poc/v2
    153 plotted pointsSource file SHA-256 fa895ceb7923…Medium confidence1,954 selected pixels of 3,920
    Manufacturer datasheet, page 2

  • impedance

    Impedance response

    Trace datasheet-response-trace-poc/v2
    240 plotted pointsSource file SHA-256 fa895ceb7923…Medium confidence4,269 selected pixels of 4,684
    Manufacturer datasheet, page 2

T/S Parameters

Valid
Canonical
Fs66Hz
Qts0.30
Qes0.32
Qms6.3
Vas12.6L
Re10.6Ω
Le0.42mH
BL12.0Tm
Sd133cm²
Mms10g
Xmax5.0mm
SPL93dB
Power200W
Power Nominal200W
Impedance16Ω
F Low65Hz
F High7300Hz
What this validation status means

Pricing & availability

Price definitions

No standard offers found

Check the manufacturer website for current pricing.

Use this driver

Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.

Files use canonical values. Required mechanical fields are derived only where the target format needs them.

Hornresp

.txt · Hornresp driver database

Driver file ready to place in Hornresp’s Drivers folder.

Download for Hornresp

WinISD

.wdr · WinISD driver editor

Native WinISD driver record with the required SI conversions.

Download for WinISD

BASTA!

.bastaelement · BASTA! loudspeaker simulator

Native BASTA! element file using its documented SI-unit fields.

Download for BASTA!

VituixCAD

.wdr · VituixCAD 2 Enclosure

A WinISD driver file that VituixCAD imports directly.

Download for VituixCAD

00 Simulator

Direct import · Web app

Start a new enclosure simulation with this driver already loaded.

Open in 00 Simulator

Copy spec sheet

Plain text · Clipboard

Copy the available values as a clean label-and-value list.

Dimensions & Physical

Weight1.3kg
Diameter162.0mm
Overall Depth73.0mm
Cutout Diameter148.0mm
Bolt Circle Diameter170.0mm
