6.5-inch LF driver · MAN062 series · 51 mm voice coil · 250 W
Lavoce MAN062.00 8Ω
8 Ω · 100–4000 Hz
No price for delivery to the UK
- Fs
- 103Hz
- Xmax
- 3.9mm
- SPL
- 93dB
- Pe
- 250W
- BL
- 12.7T·m
- Vd
- 51cm³
- Qts
- 0.30
- Vas
- 4L

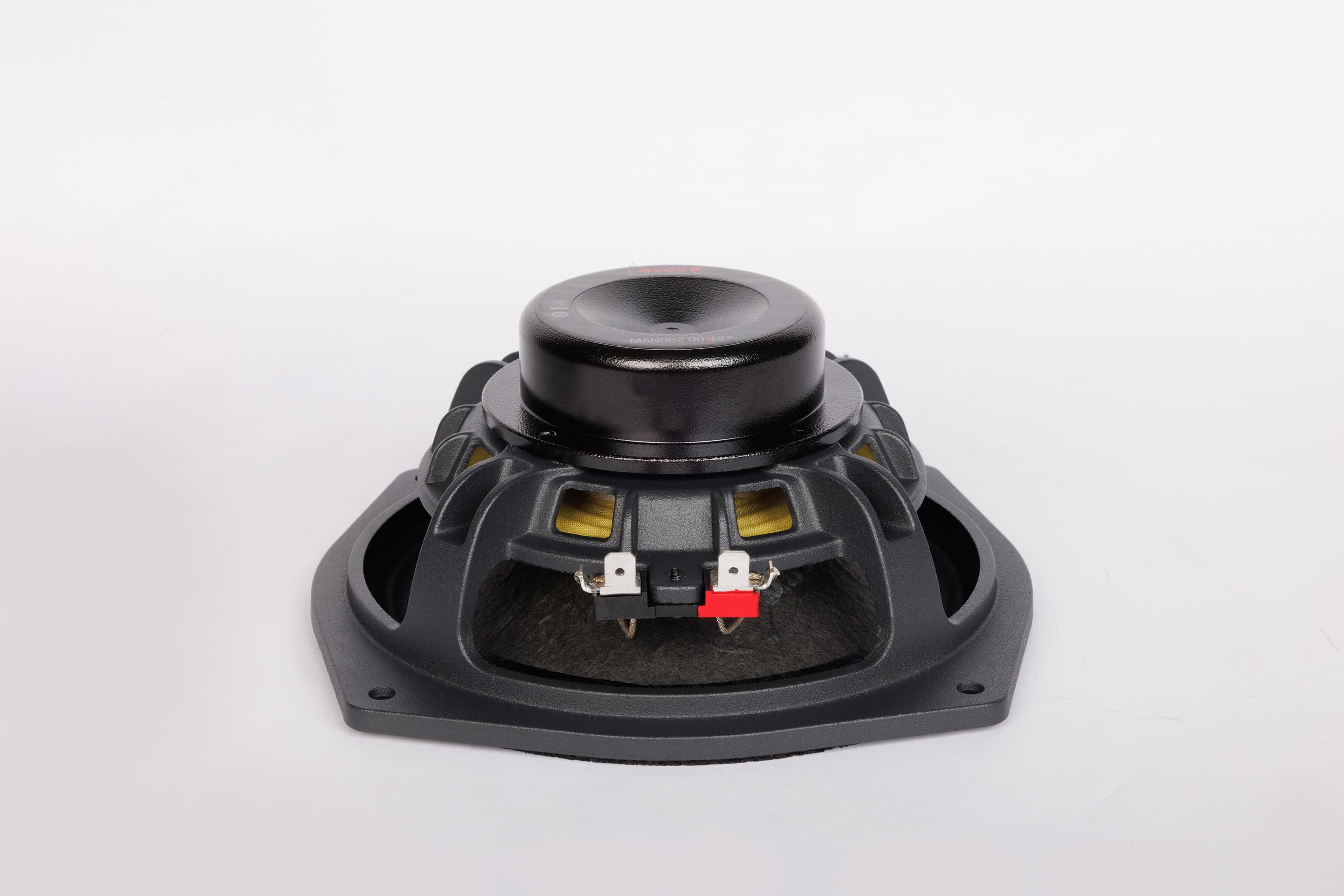

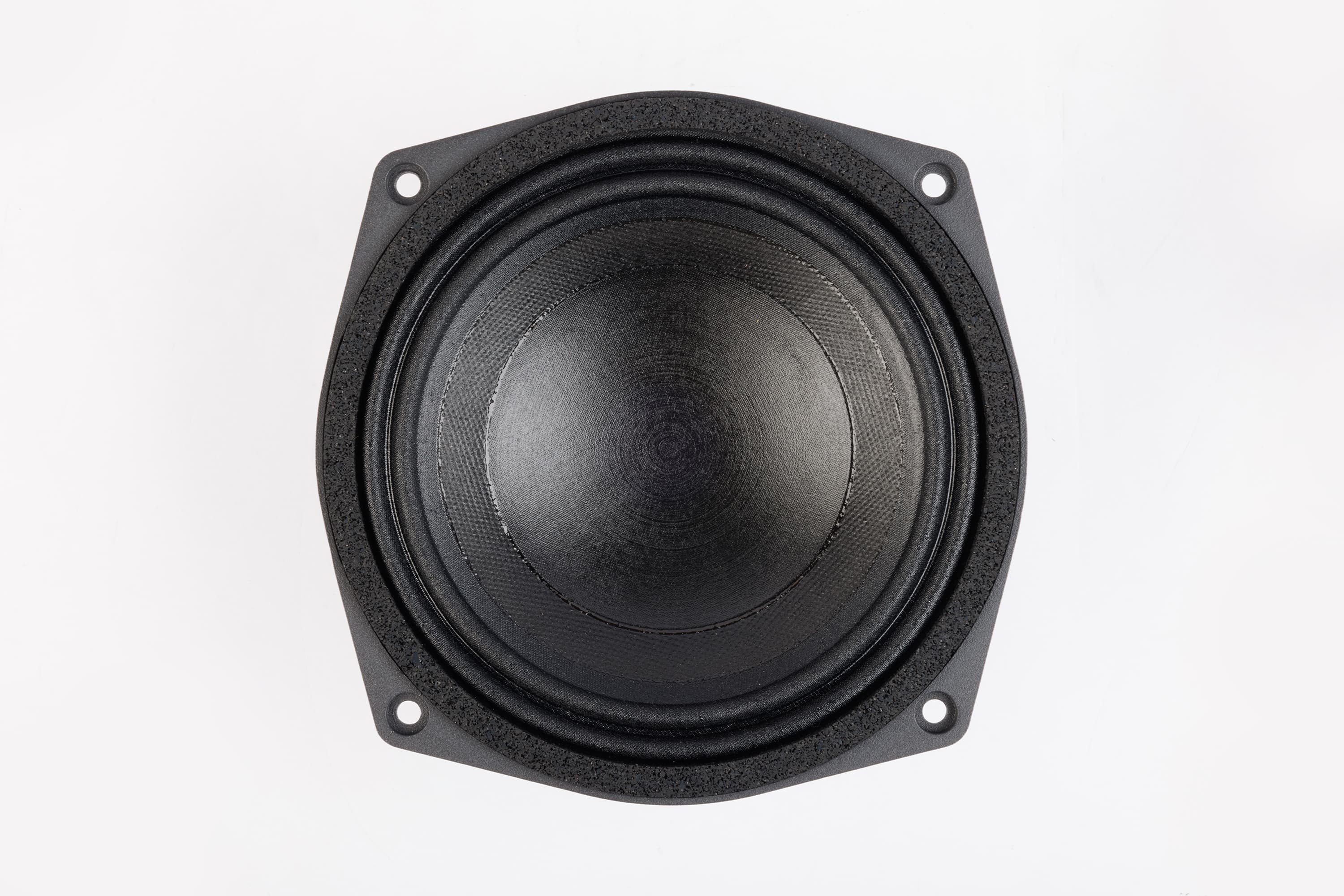

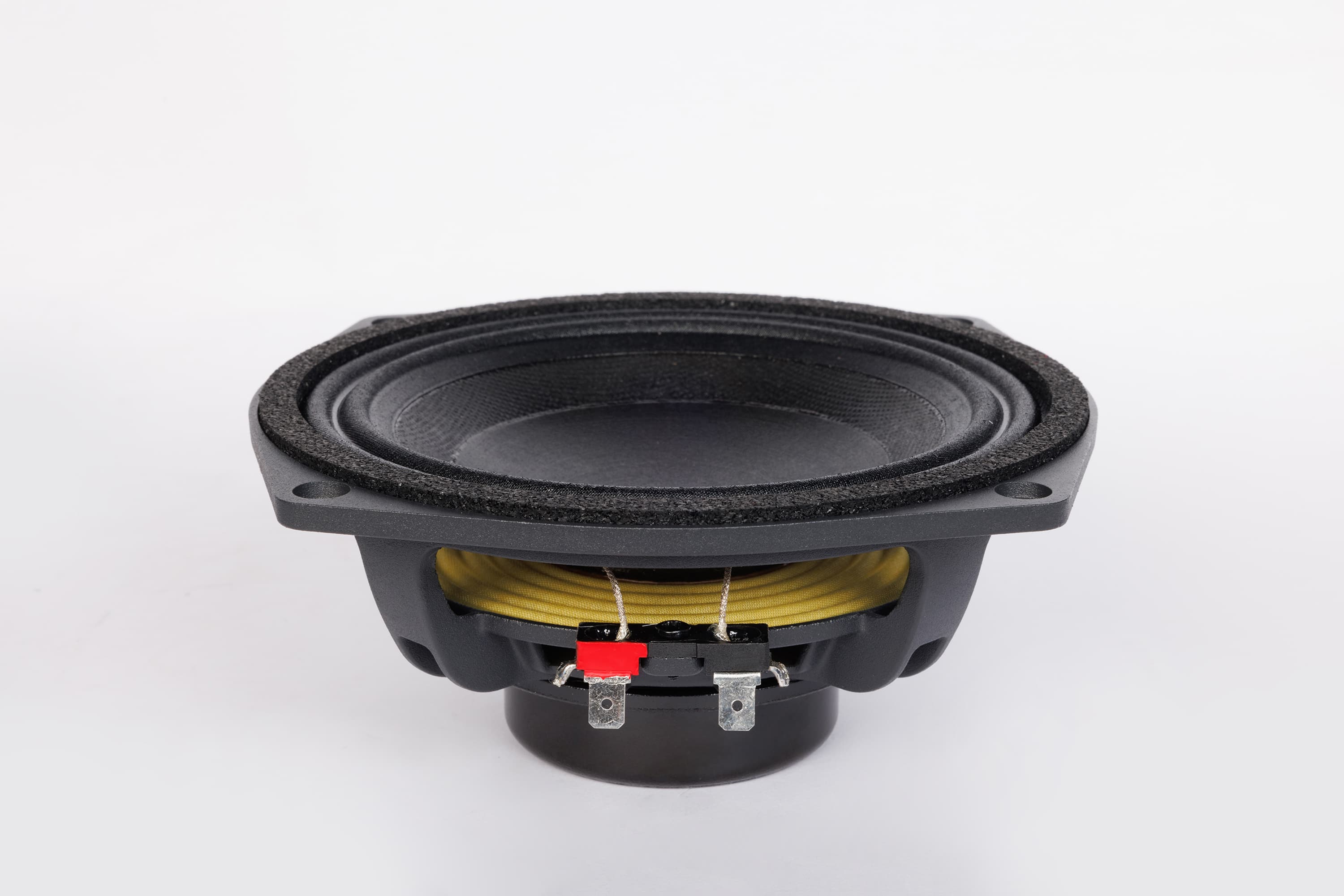

Lavoce MAN062.00 is a 6.5-inch 8 ohm LF driver rated at 250 W RMS. The validated T/S data includes Fs 103 Hz, Qts 0.30, Vas 4.1 L, Xmax 3.9 mm, sensitivity 93.3 dB, plus 51 cm³ Vd and 312 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
The published T/S values agree with each other
Thiele/Small
- Fs
- 103Hz
- Qts
- 0.30
- Qes
- 0.33
- Qms
- 2.8
- Vas
- 4.1L
- Re
- 5.7Ω
- Le
- 0.31mH
Motor and cone
- BL
- 12.7T·m
- Sd
- 132cm²
- Mms
- 15g
- Xmax
- 3.9mm
- Vd †
- 51cm³
- Voice coil
- 51mm
Power and response
- Sensitivity †
- 93.3dB
- Manufacturer sensitivity
- 95dB
- Power
- 250W
- Impedance
- 8Ω
- Min. impedance
- 6.7Ω
- Range
- 100–4000Hz
- EBP †
- 312 · Leans vented
Size and mounting
- Weight
- 0.9kg
Other published values
- Cms
- 0.17mm/N
- Xmech
- 6.4
- Power Program
- 500
Sensitivity shows 93.3 dB, calculated from the T/S values. Lavoce publishes 95.0 dB, 1.7 dB apart.
† Calculated by bits from the published values
What this validation status means
Everything else Lavoce lists
LF · Primary · 6.5″
- BL
- 12.7T·m
- Fs
- 103Hz
- Le
- 0.31mH
- Re
- 5.7Ω
- Sd
- 132cm²
- Cms
- 0.17mm/N
- Mms
- 15g
- Qes
- 0.33
- Qms
- 2.8
- Qts
- 0.30
- SPL
- 93.3dB
- Vas
- 4.1L
- Xmax
- 3.9mm
- Xmech
- 6.4
- Power
- 250W
- Impedance
- 8Ω
- Sensitivity
- 95dB
- Low limit
- 100Hz
- Power Program
- 500
- Calculated sensitivity †
- 93.3dB
- High limit
- 4000Hz
- Manufacturer sensitivity
- 95dB
- Min. impedance
- 6.7Ω
- Voice coil
- 51mm
- Weight
- 0.9kg
