Hornresp
.txt · Hornresp driver database
Driver file ready to place in Hornresp’s Drivers folder.
Not enough T/S data
Missing RMS power
Sica 5.5 C 1.5 CP 8Ω
LF DriverMedia
Auto-advancing
Overview
LF Driver
Sica

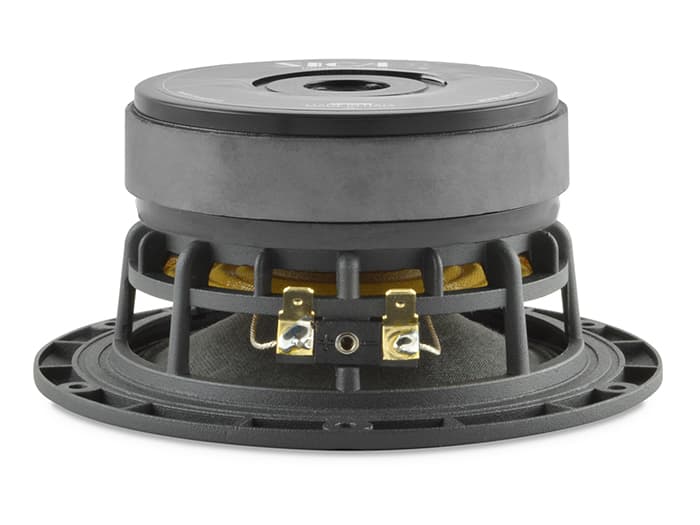

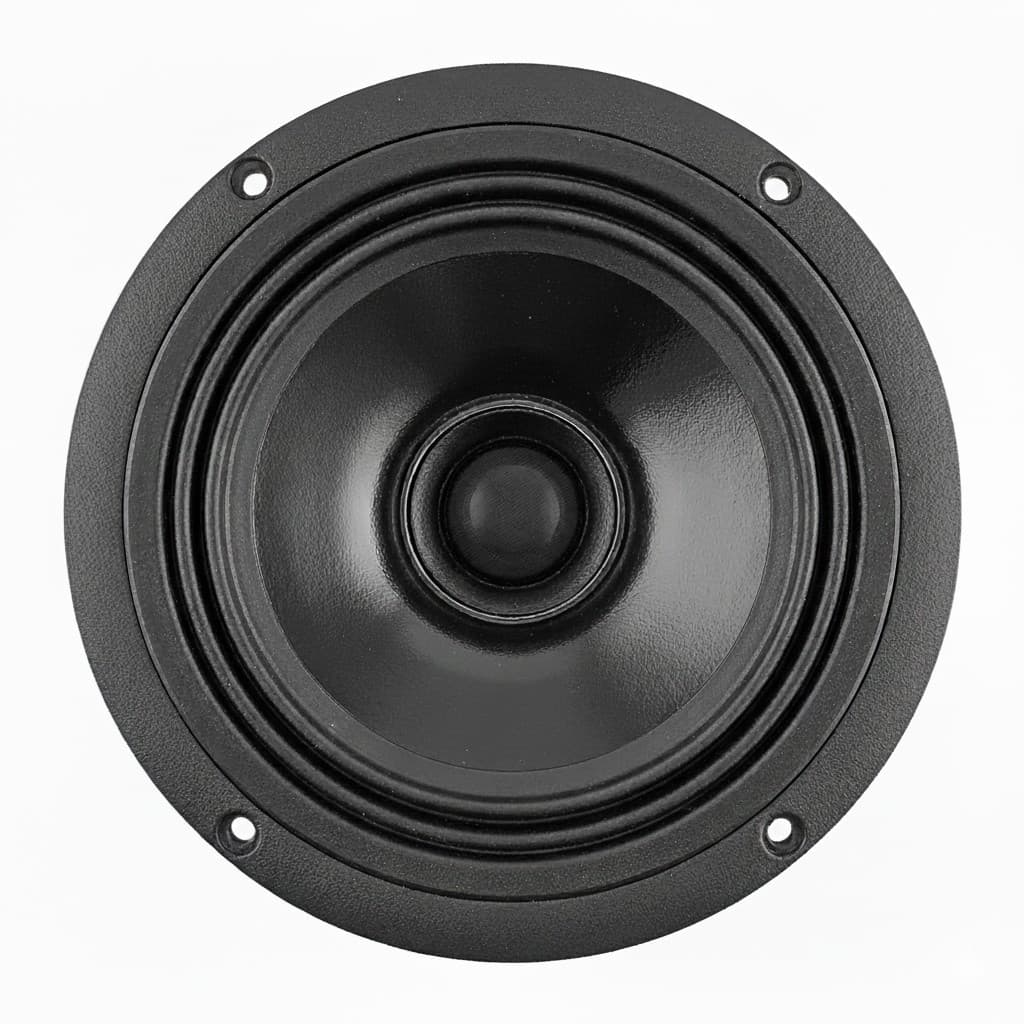

Sica 5.5 C 1.5 CP
Sica 5.5 C 1.5 CP is a 5.5" 8 ohm LF driver. The validated T/S data includes Fs 62Hz, Qts 0.31, Vas 5.4L, Xmax 4mm, sensitivity 87.8dB, plus 31cm³ Vd and 182 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
5.5"
Impedance
8Ω
Sensitivity
87.8dB
89.8dBmanufacturer; using T/S-derived value (2.0dB delta).
EBP
182
Vented alignment
Vd
31cm³
Overall Parameters
Valid
Fs62Hz
Qts0.31
Qes0.34
Qms4.7
Vas5.4L
Re5.1Ω
Le0.50mH
BL7.9Tm
Sd79cm²
Mms11g
Xmax4.0mm
SPL88dB
Impedance8Ω
Voice Coil38mm
Hybrid view: LF section is used for excursion/motor values, while frequency limits merge upper sections.
What this validation status meansPricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Not enough T/S data
Missing RMS power
BASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Not enough T/S data
Missing RMS power
VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Not enough T/S data
Missing RMS power
00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight1.7kg
Diameter148.0mm
Overall Depth73.5mm
Cutout Diameter113.0mm
Bolt Circle Diameter139.0mm
Driver Components
LFLF
5.5"Fs62 Hz
Qts0.31
Qes0.34
Qms4.7
Vas5.4 L
Re5.1 Ω
Le0.50 mH
BL7.9 Tm
Sd79 cm²
Mms11 g
Xmax4.0 mm
SPL88 dB
Impedance8 Ω
Voice Coil38 mm
Cms0.621
HFHF
Fs1500 Hz
Re6.0 Ω
SPL94 dB
Impedance8 Ω
Xover3000 Hz
Voice Coil25 mm
