LF DriverPR series
FaitalPRO

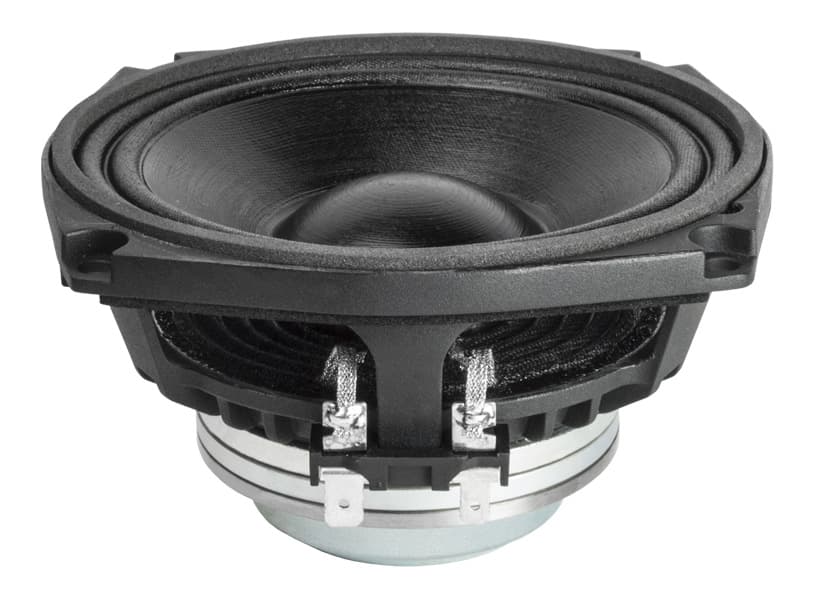

FaitalPRO 5PR160
FaitalPRO 5PR160 is a 5" 8 ohm LF driver rated at 120W RMS. The validated T/S data includes Fs 90Hz, Qts 0.31, Vas 3.7L, Xmax 5.1mm, sensitivity 91.2dB, plus 43cm³ Vd and 273 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £66.18.
Size
5"
Impedance
8Ω
RMS Power
120W
Sensitivity
91.2dB
EBP
273
Vented alignment
Vd
43cm³
Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
0 degrees201 ptsp1medium
45 degrees240 ptsp1medium
Curve provenanceInspect 3 tracesHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
0 degrees
Frequency response
201 plotted pointsMedium confidence647 selected pixels of 969 - Trace datasheet-response-trace-poc/v1
45 degrees
Frequency response
240 plotted pointsMedium confidence892 selected pixels of 1,129 - Trace datasheet-response-trace-poc/v1
impedance
Impedance response
240 plotted pointsMedium confidence1,316 selected pixels of 1,316
T/S Parameters
Valid
Fs90Hz
Qts0.31
Qes0.33
Qms4.4
Vas3.7L
Re6.1Ω
Le0.30mH
BL9.6Tm
Sd85cm²
Mms9g
Xmax5.1mm
SPL91dB
Power120W
Impedance8Ω
F Low100Hz
F High6500Hz
Pricing & availability
Price definitionsPrice movement
Best current price
£66.18
inc VAT·Vendor hidden
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight0.8kg
Diameter150.0mm
Overall Depth74.0mm
Cutout Diameter118.0mm
Bolt Circle Diameter139.0mm
