LF DriverPR series
FaitalPRO

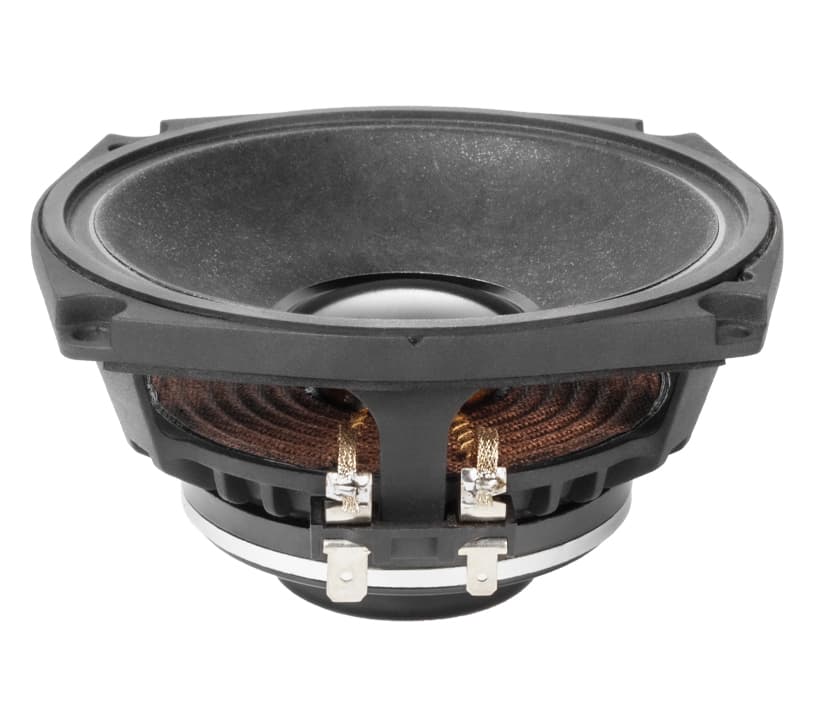

FaitalPRO 5PR120
FaitalPRO 5PR120 is a 5" 8 ohm LF driver rated at 100W RMS. The validated T/S data includes Fs 100Hz, Qts 0.27, Vas 4.2L, Xmax 3.1mm, sensitivity 93.8dB, plus 32cm³ Vd and 357 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £73.19.
Size
5"
Impedance
8Ω
RMS Power
100W
Sensitivity
93.8dB
100.0dBmanufacturer; using T/S-derived value (6.2dB delta).
EBP
357
Vented alignment
Vd
32cm³
Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
45 degrees240 ptsp1medium
Curve provenanceInspect 2 tracesHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
45 degrees
Frequency response
240 plotted pointsMedium confidence1,222 selected pixels of 1,222 - Trace datasheet-response-trace-poc/v1
impedance
Impedance response
240 plotted pointsMedium confidence1,474 selected pixels of 1,474
T/S Parameters
Valid
Fs100Hz
Qts0.27
Qes0.28
Qms8.0
Vas4.2L
Re5.0Ω
Le0.17mH
BL10.0Tm
Sd102cm²
Mms9g
Xmax3.1mm
SPL94dB
Power100W
Impedance8Ω
F Low300Hz
F High5000Hz
Pricing & availability
Price definitionsPrice movement
Best current price
£73.19
inc VAT·Vendor hidden
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight0.8kg
Diameter150.0mm
Overall Depth69.0mm
Cutout Diameter118.0mm
Bolt Circle Diameter139.0mm
