LF Driver5FG series
B&C

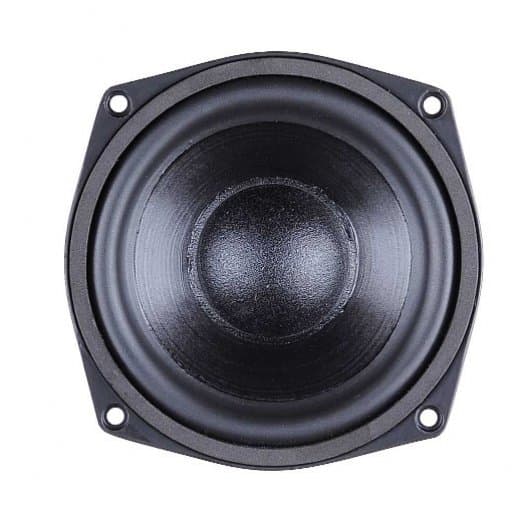

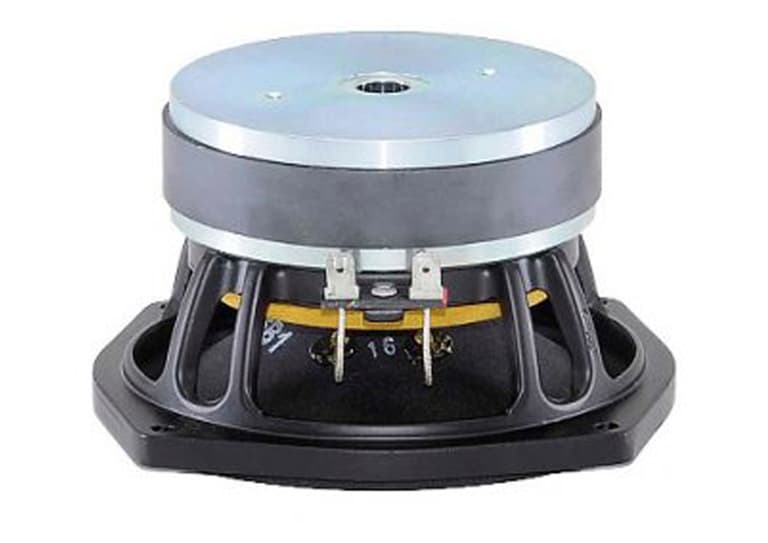

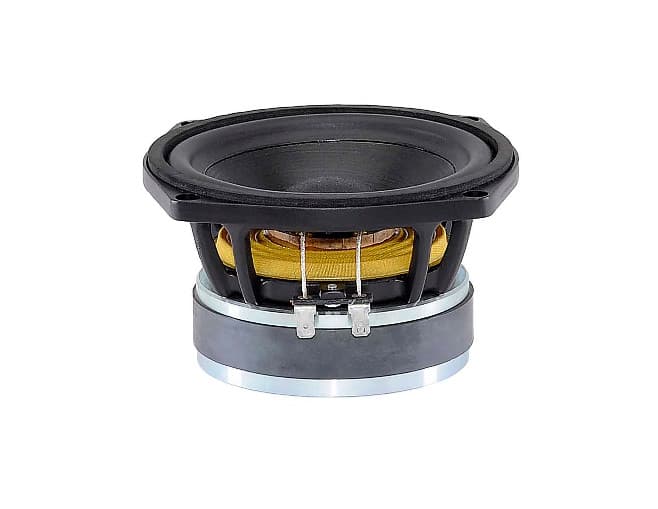

B&C 5FG44
B&C 5FG44 is a 5" 8 ohm LF driver rated at 100W RMS. The validated T/S data includes Fs 63Hz, Qts 0.27, Vas 6.3L, Xmax 3mm, sensitivity 89.2dB, plus 29cm³ Vd and 210 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £81.02.
Size
5"
Impedance
8Ω
RMS Power
100W
Sensitivity
89.2dB
92.0dBmanufacturer; using T/S-derived value (2.8dB delta).
EBP
210
Vented alignment
Vd
29cm³

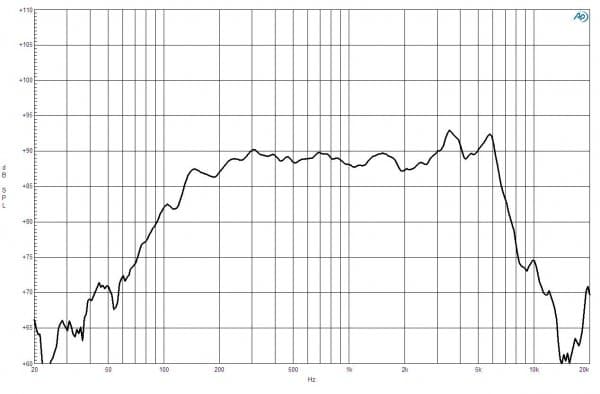

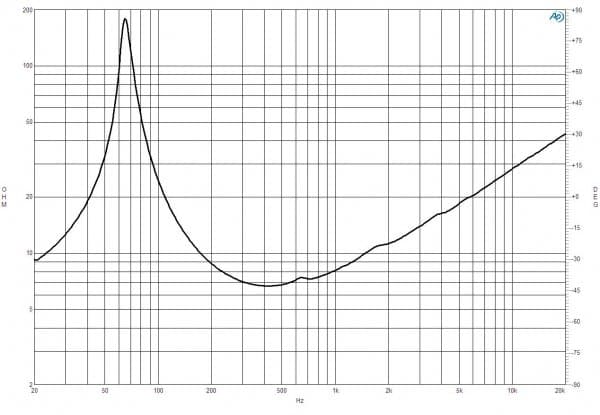

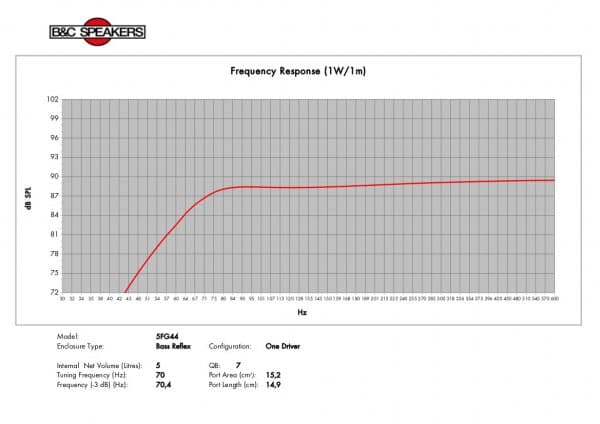

Frequency response
Manufacturer-provided response plots and related charts.
T/S Parameters
Valid
Fs63Hz
Qts0.27
Qes0.30
Qms10.0
Vas6.3L
Re5.8Ω
Le0.80mH
BL10.0Tm
Sd95cm²
Mms12g
Xmax3.0mm
SPL89dB
Power100W
Power Nominal100W
Impedance8Ω
Min Impedance6.5Ω
F Low63Hz
F High6000Hz
Voice Coil44mm
Flux Density1.10T
Pricing & availability
Price definitionsPrice movement
Best current price
£81.02
inc VAT·Vendor hidden
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight1.6kg
Diameter155.0mm
Overall Depth77.0mm
Cutout Diameter122.0mm
Bolt Circle Diameter142.0mm
Additional Manufacturer Specs
Bl10 Tm
Fs63 Hz
Le0.8 mH
Re5.8 Ω
Sd95 cm² (14.7 in²)
Ebp210 Hz
Mms12 g
Qes0.3
Qms10
Qts0.27
Vas6.3 dm³ (0.22 ft³)
η00.55 %
ConeRCK005FG448
Xmax3 mm
Xvar5 mm
SpiderSingle
Cone ShapeExponential
Pole DesignT-Pole
Winding Depth9 mm (0.35 in)
Surround ShapeRoll
Former MaterialKapton
Magnet MaterialFerrite
Nominal Diameter127 mm (5 in)
Winding MaterialCopper
Magnetic Gap Depth6 mm (0.25 in)
Recommended Tuning70 Hz
Bolt Circle Diameter142 mm (5.6 in)
Recommended Enclosure5 dm³ (0.17 ft³)
Woofer Cone TreatmentWP Waterproof Front Side
Baffle Cutout Diameter122 mm (4.8 in)
Flange And Gasket Thickness9 mm (0.35 in)
Air Volume Occupied By Driver0.5 dm³ (0.02 ft³)
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
B&C
5FG44
5"
Best current price
£81.02
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size.
8 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
32%
Similarity
37% cheaper£51.19

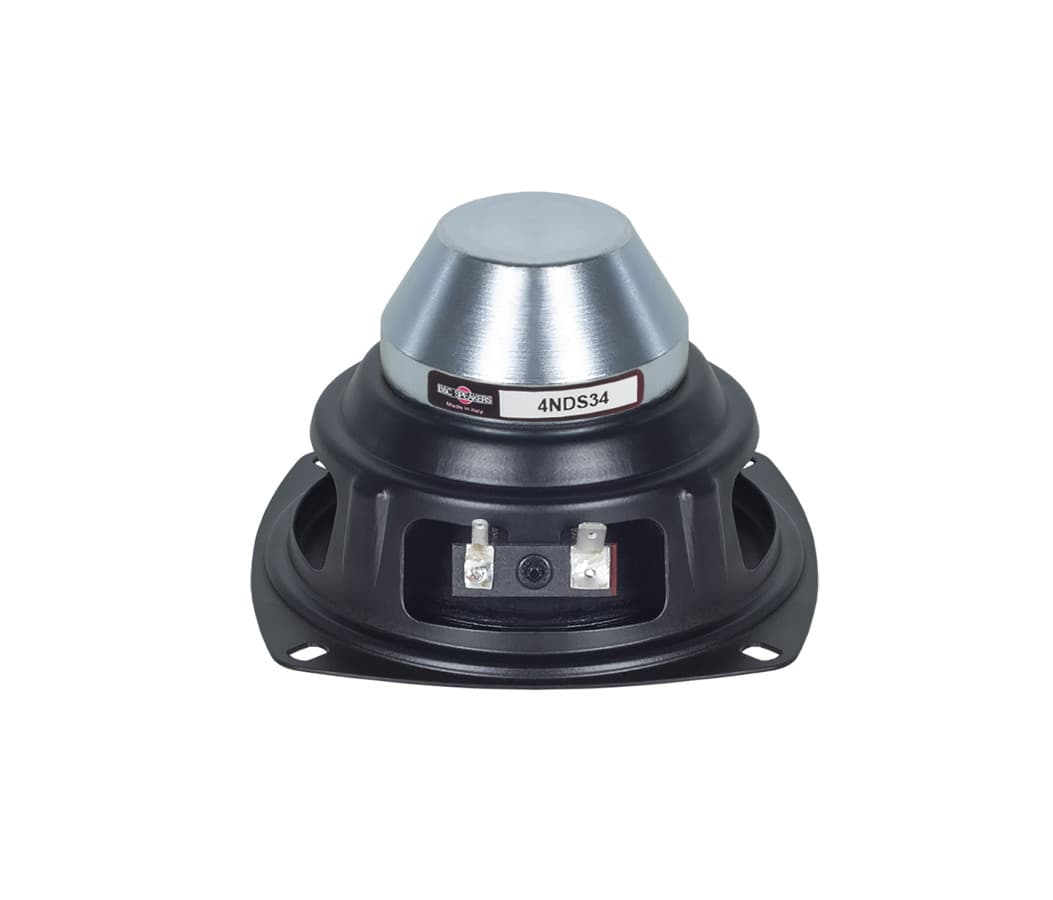

B&C
