LF Driver5FCX series
B&C
B&C 5FCX44

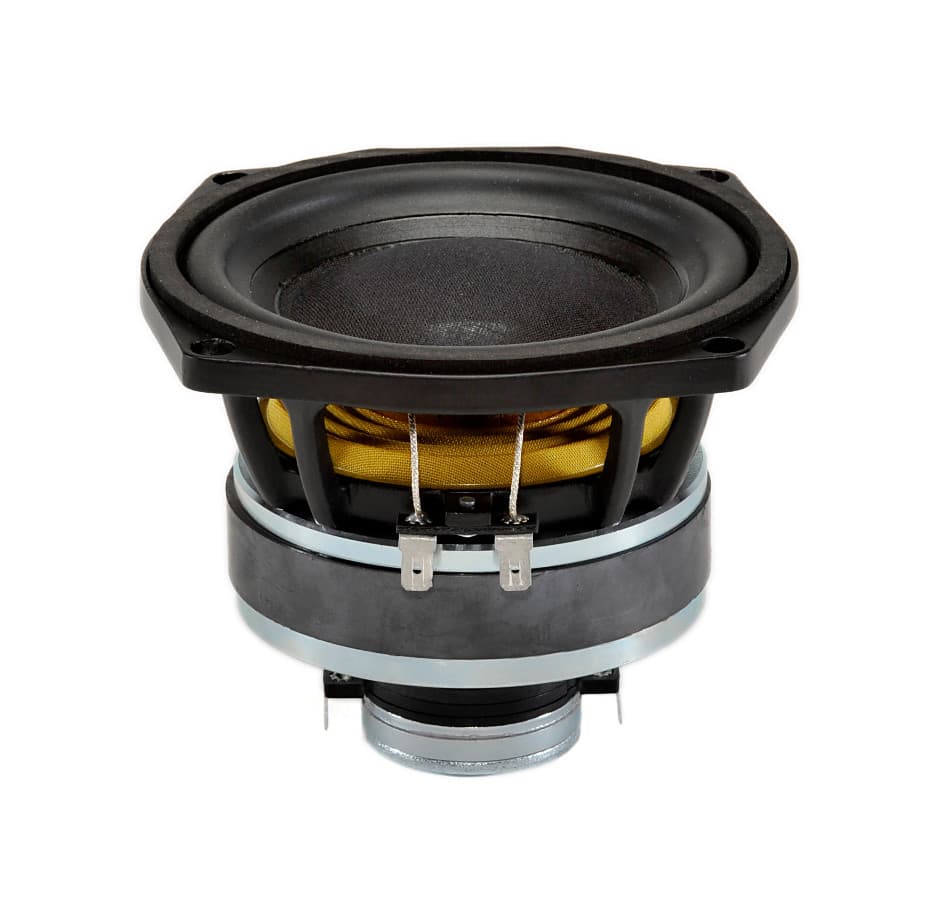

B&C 5FCX44 is a 5" 8 ohm LF driver rated at 100W RMS. The validated T/S data includes Fs 61Hz, Qts 0.25, Vas 7L, Xmax 5mm, sensitivity 90.1dB, plus 48cm³ Vd and 244 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £129.00.
Size
5"
Impedance
8Ω
RMS Power
100W
Sensitivity
90.1dB
EBP
244
Vented alignment
Vd
48cm³

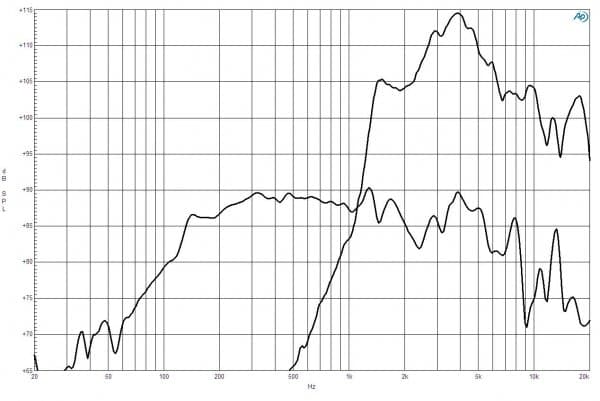

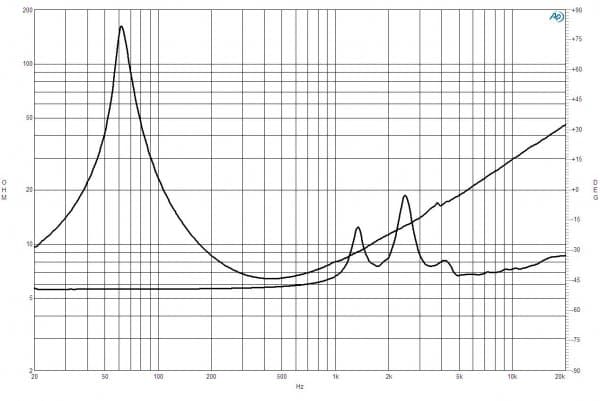

Frequency response

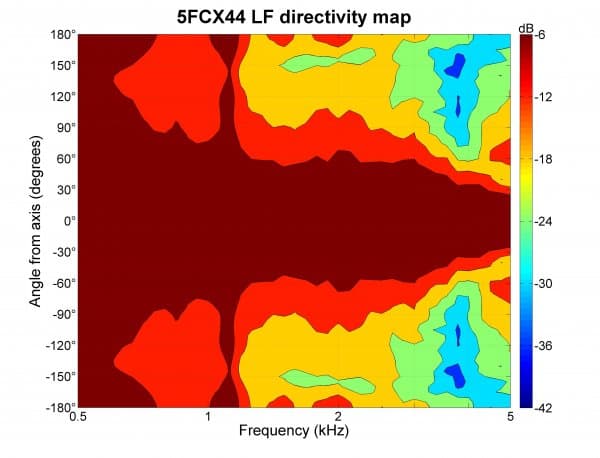

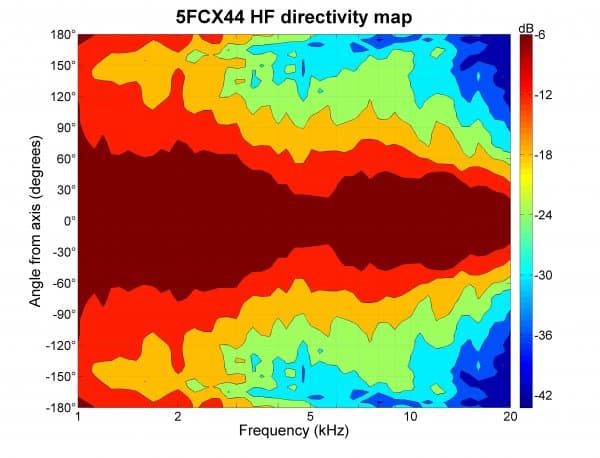

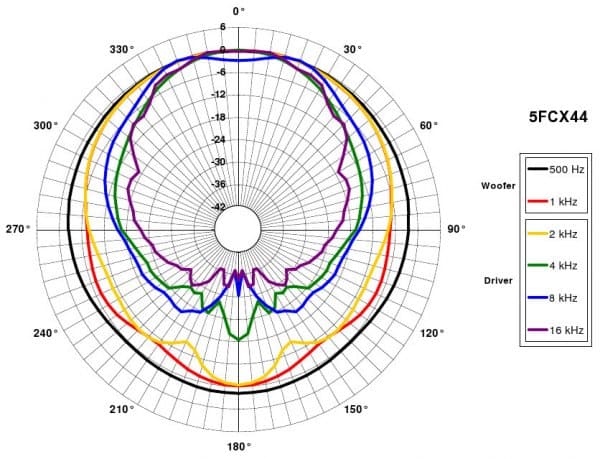

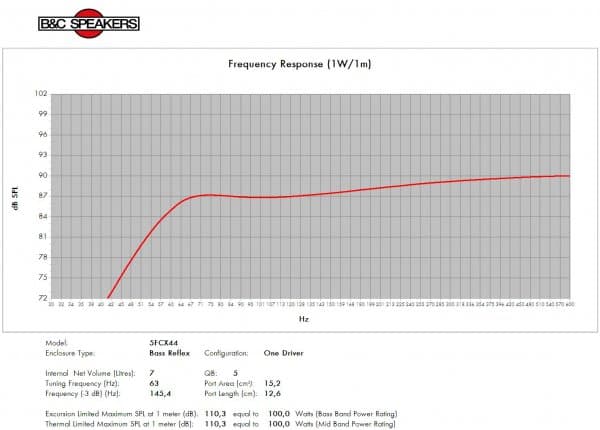

Manufacturer-provided response plots and related charts.
Overall Parameters
Valid
Fs61Hz
Qts0.25
Qes0.25
Qms7.8
Vas7.0L
Re5.6Ω
Le0.80mH
BL10.5Tm
Sd95cm²
Mms12g
Xmax5.0mm
SPL90dB
Power100W
Power Nominal100W
Impedance8Ω
Min Impedance6.5Ω
Voice Coil44mm
Flux Density1.07T
Hybrid view: LF section is used for excursion/motor values, while frequency limits merge upper sections.
What this validation status meansPricing & availability
Price definitionsPrice movement
Best current price
£129.00
inc VAT·Vendor hidden
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Driver Components
LFSpecifications LF unit
Fs61 Hz
Qts0.25
Qes0.25
Qms7.8
Vas7.0 L
Re5.6 Ω
Le0.80 mH
BL10.5 Tm
Sd95 cm²
Mms12 g
Xmax5.0 mm
SPL90 dB
Power100 W
Power Nominal100 W
Impedance8 Ω
Min Impedance6.5 Ω
Voice Coil44 mm
Flux Density1.07 T
HFSpecifications HF unit
Le0.10 mH
SPL108 dB
Power10 W
Power Nominal10 W
Impedance8 Ω
Min Impedance6.5 Ω
Xover2500 Hz
Voice Coil25 mm
Flux Density1.65 T
Additional Manufacturer Specs
Bl10.5 Tm
Fs61 Hz
Le0.8 mH
Re5.6 Ω
Sd95 cm² (14.7 in²)
Ebp244 Hz
Mms12 g
Qes0.25
Qms7.8
Qts0.25
Vas7 dm³ (0.25 ft³)
η00.6 %
Xvar5 mm
Winding Depth9 mm (0.35 in)
Former MaterialKapton
Nominal Diameter127 mm (5 in)
Winding MaterialCopper
Magnetic Gap Depth6 mm (0.24 in)
Woofer Cone TreatmentWP Waterproof Front Side
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
B&C
5FCX44
5"
Best current price
£129.00
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size.
7 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
52%
Similarity
49% cheaper£66.18
FaitalPRO
5PR160
5"
Lower price
Xmax5.1mm+2%
Qts0.31+24%
BL9.6Tm-9%
Vas3.7L-47%
Qes0.33+32%
55%
Similarity
35% cheaper£84.31
FaitalPRO
6RS140
6"
Lower price
Xmax5.6mm+12%
Qts0.27+8%
BL11Tm+5%
Vas9.3L+33%
Qes0.28+12%
76%
Similarity
28% cheaper£93.42
Beyma
5P200ND
5"
Lower price
Xmax5.7mm+14%
Qts0.23-8%
BL10.5Tm0%
Vas4.8L-31%
Qes0.24-4%
56%
Similarity
Beyma
105CX2NDN8
5"
Xmax5.7mm+14%
Qts0.28+12%
BL7.3Tm-30%
Vas9.1L+30%
Qes0.28+12%
44%
Similarity
Sica
6 N 2.5 PL
6"
Xmax4.5mm-10%
Qts0.27+8%
BL13.5Tm+29%
Vas4.9L-30%
Qes0.29+16%
42%
Similarity
Sica
5 F 1.5 CP
5"
Xmax3.5mm-30%
Qts0.3+20%
BL7.6Tm-28%
Vas6.8L-3%
Qes0.33+32%
25%
Similarity
PRV Audio
6MR600X-NDY-4
6"
Xmax3.5mm-30%
Qts0.19-24%
BL12.7Tm+21%
Vas5.2L-26%
Qes0.2-20%
