LF DriverIlluminator series
Scanspeak

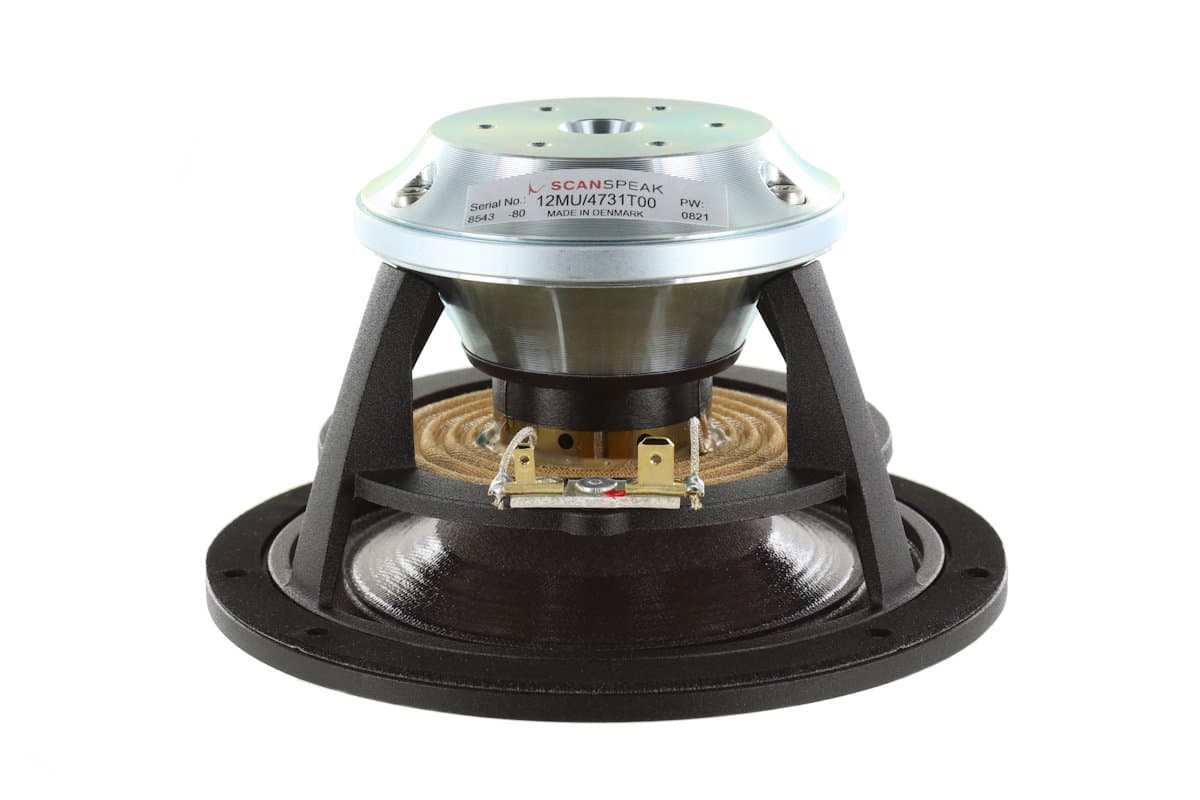

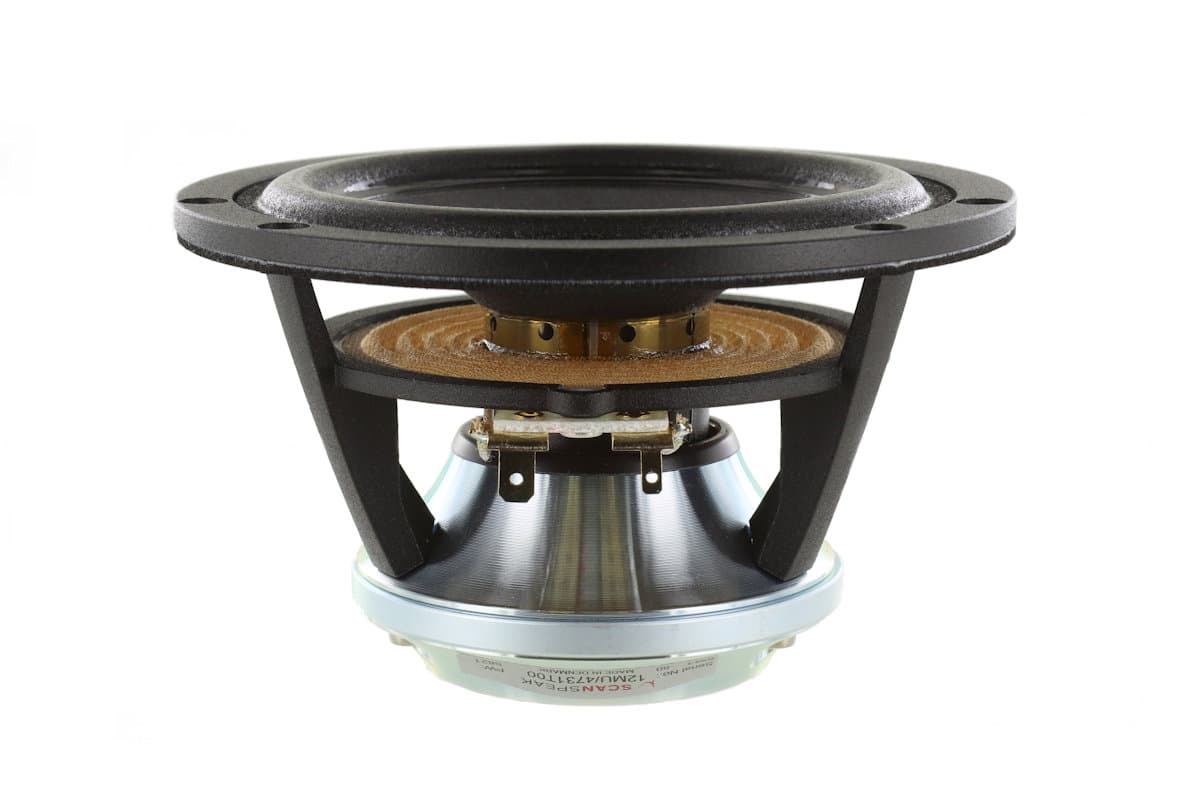

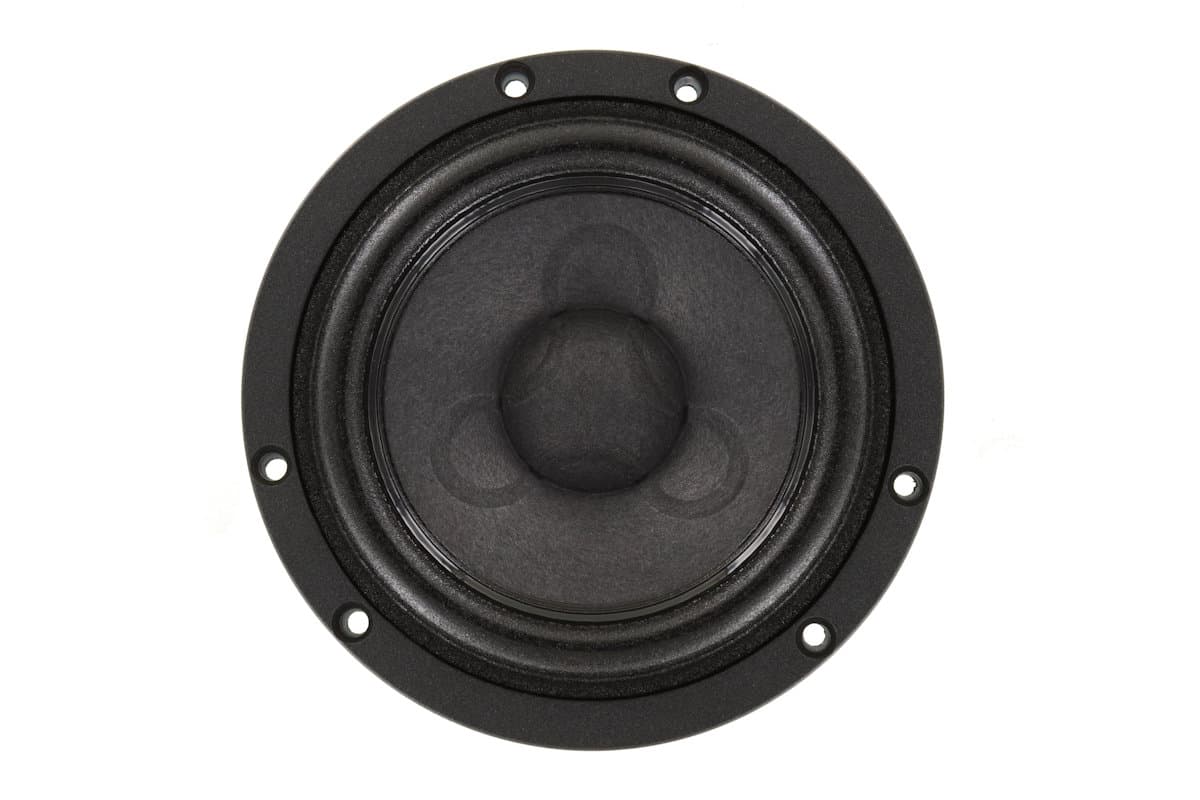

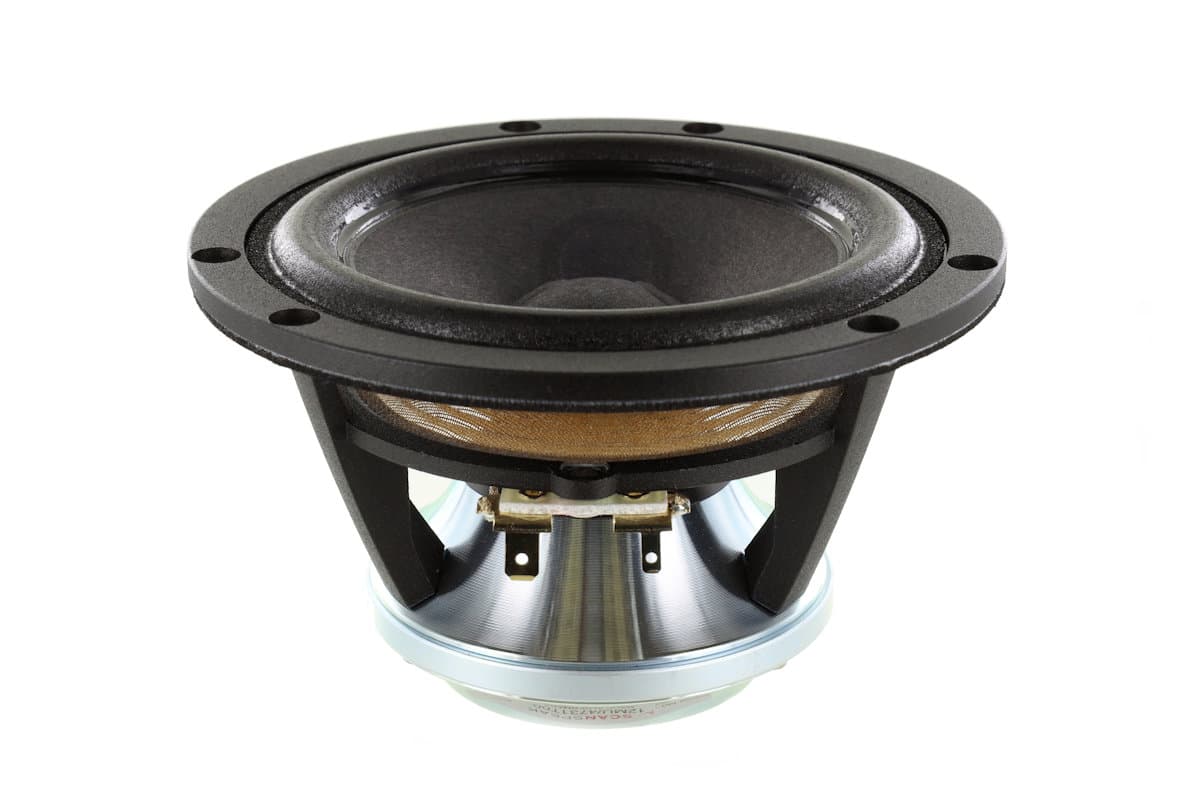

Scanspeak 12MU/4731T00
Scanspeak 12MU/4731T00 is a 5" 4 ohm LF driver rated at 80W RMS. The validated T/S data includes Fs 64Hz, Qts 0.24, Vas 5.4L, Xmax 3.5mm, sensitivity 89.4dB, plus 20cm³ Vd and 246 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £289.95.
Size
5"
Impedance
4Ω
RMS Power
80W
Sensitivity
89.4dB
EBP
246
Vented alignment
Vd
20cm³
T/S Parameters
Valid
Fs64Hz
Qts0.24
Qes0.26
Qms3.6
Vas5.4L
Re3.1Ω
Le0.11mH
BL5.1Tm
Sd58cm²
Mms5g
Xmax3.5mm
SPL89dB
Power80W
Impedance4Ω
Min Impedance4.4Ω
Voice Coil32mm
Pricing & availability
Price definitionsPrice movement
Best current price
£289.95
inc VAT·Vendor hidden
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Diameter120.0mm
