Overview
LF DriverPTT series
Purifi

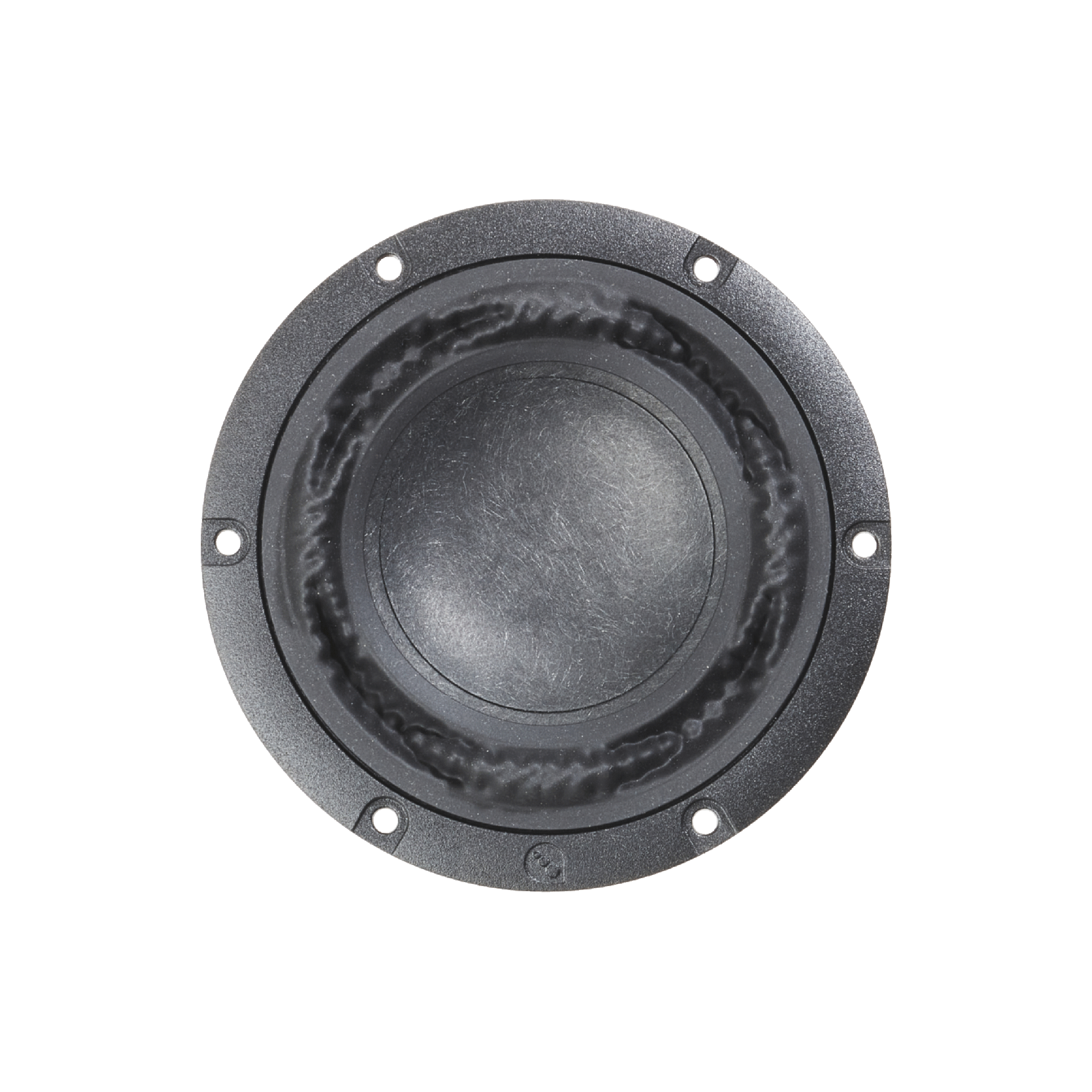

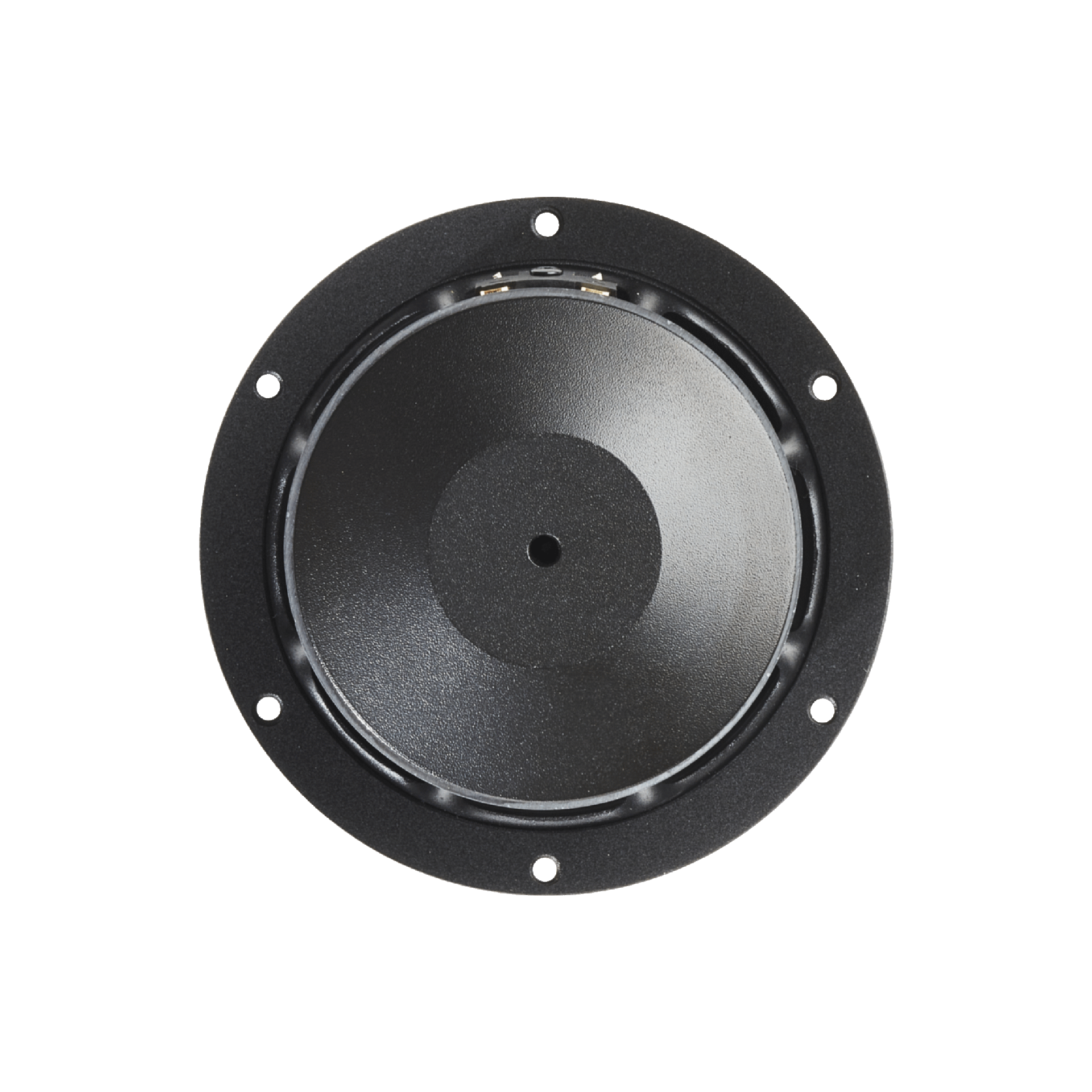

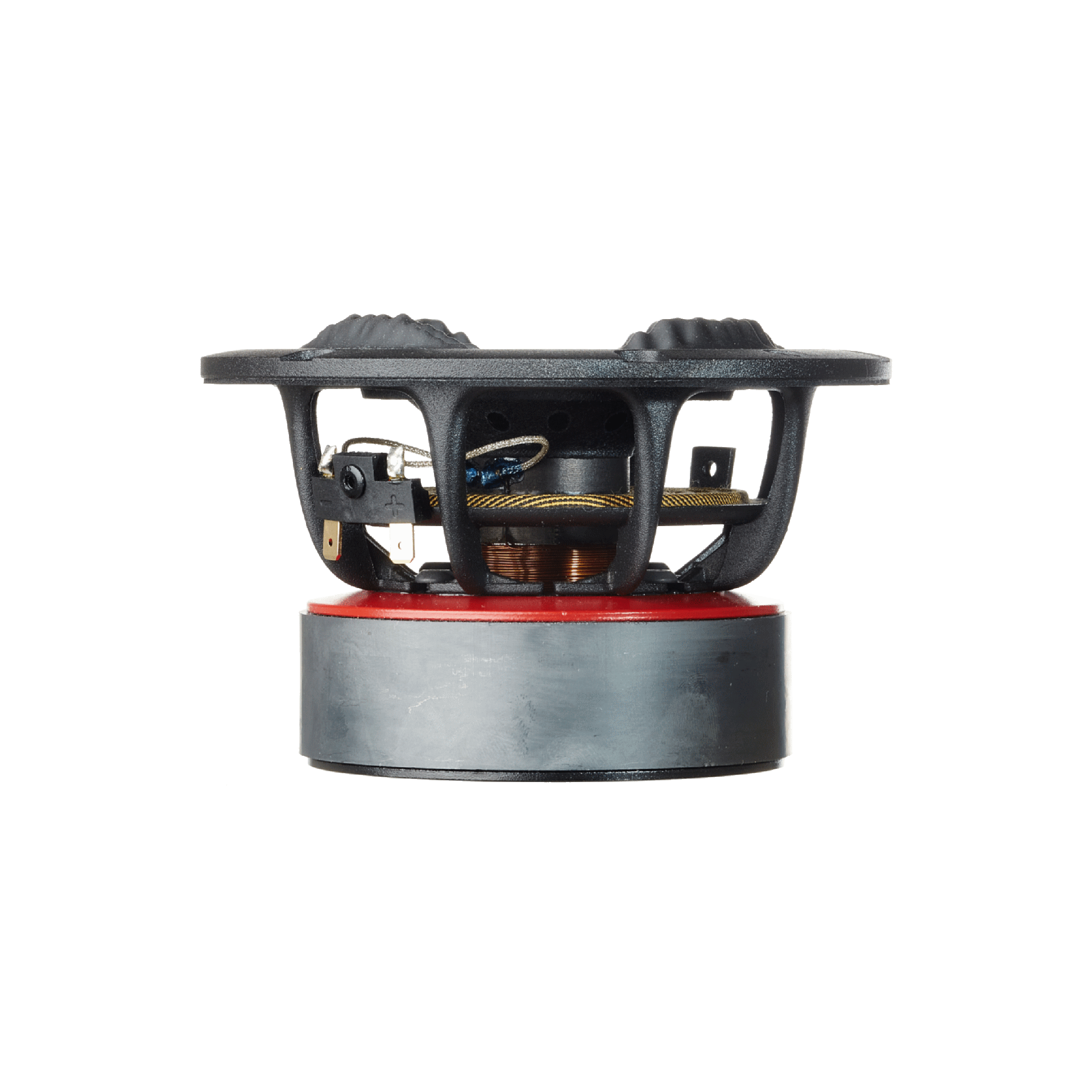

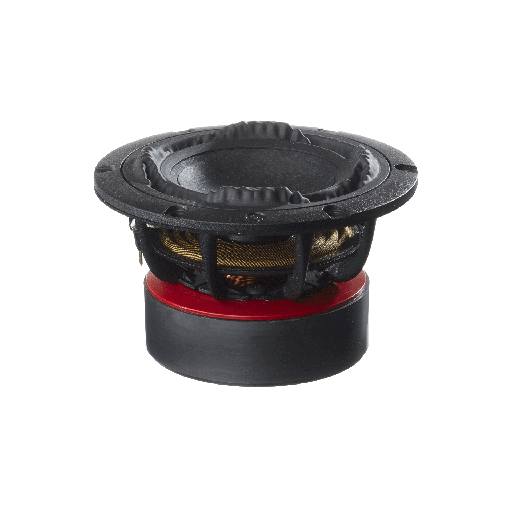

Purifi PTT4.0M04-NFC-01
Purifi PTT4.0M04-NFC-01 is a 4" 4 ohm LF driver. The validated T/S data includes Fs 46Hz, Qts 0.25, Vas 5.4L, Xmax 2.9mm, sensitivity 84.9dB, plus 16cm³ Vd and 170 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
4"
Impedance
4Ω
Sensitivity
84.9dB
87.4dBmanufacturer; using T/S-derived value (2.5dB delta).
EBP
170
Vented alignment
Vd
16cm³
T/S Parameters
Valid
Fs46Hz
Qts0.25
Qes0.27
Qms4.6
Vas5.4L
Re3.4Ω
Le0.26mH
BL6.0Tm
Sd57cm²
Mms10g
Xmax2.9mm
SPL85dB
Impedance4Ω
Min Impedance3.7Ω
Voice Coil30mm
Pricing & availability
Price definitionsNo current price found
Pricing may appear after the next vendor refresh.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Not enough T/S data
Missing RMS power
BASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Not enough T/S data
Missing RMS power
VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Not enough T/S data
Missing RMS power
00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight1.3kg
Diameter125.0mm
Cutout Diameter101.0mm
Bolt Circle Diameter115.0mm
