Overview
LF DriverExcel series
SEAS

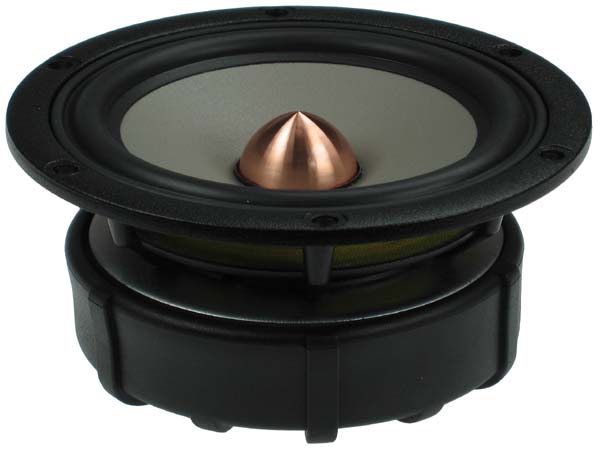

SEAS E0021-08S W12CY001
SEAS E0021-08S W12CY001 is a 15" 8 ohm LF driver rated at 70W RMS. The validated T/S data includes Fs 45Hz, Qts 0.36, Vas 6L, Xmax 3mm, sensitivity 83.2dB, plus 15cm³ Vd and 107 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
15"
Impedance
8Ω
RMS Power
70W
Sensitivity
83.2dB
EBP
107
Vented alignment
Vd
15cm³

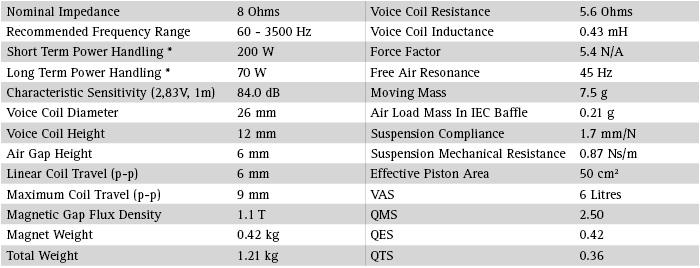

T/S Parameters
Valid
Fs45Hz
Qts0.36
Qes0.42
Qms2.5
Vas6.0L
Re5.6Ω
Le0.43mH
BL5.4Tm
Sd50cm²
Mms8g
Xmax3.0mm
SPL83dB
Power70W
Impedance8Ω
F Low60Hz
F High3500Hz
Voice Coil26mm
Flux Density1.10T
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.

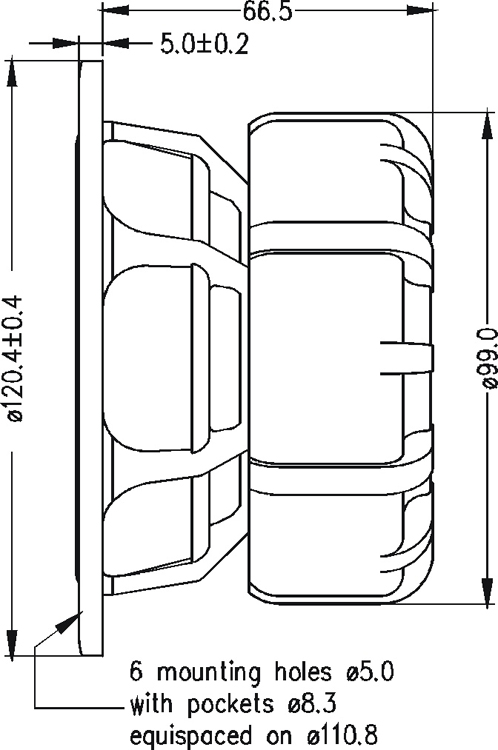

Dimensions & Physical
Weight1.2kg
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
SEAS
E0021-08S W12CY001
15"
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size. Pin a driver to open a side-by-side comparison.
1 match
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
88%
Similarity

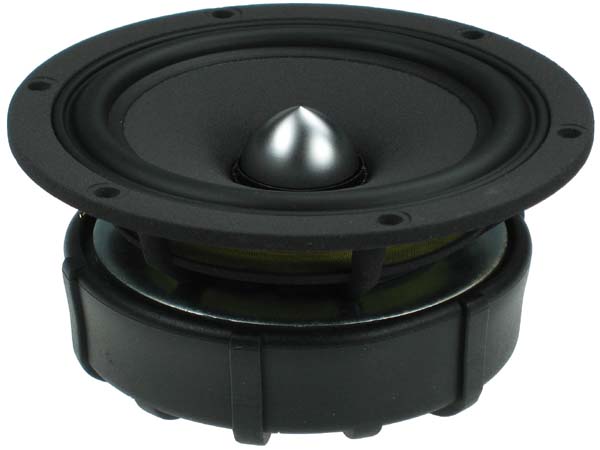

SEAS
