Hornresp
.txt · Hornresp driver database
Driver file ready to place in Hornresp’s Drivers folder.
Download for HornrespCIARE CW131 4Ω
LF DriverMedia
Overview
LF DriverCW series
CIARE
CIARE CW131
CIARE CW131 is a 5" 4 ohm LF driver rated at 180W RMS. The validated T/S data includes Fs 65Hz, Qts 0.39, Vas 5.3L, Xmax 4mm, sensitivity 87.1dB, plus 32cm³ Vd and 144 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
5"
Impedance
4Ω
RMS Power
180W
Sensitivity
87.1dB
89.0dBmanufacturer; using T/S-derived value (1.9dB delta).
EBP
144
Vented alignment
Vd
32cm³
Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
frequency response240 ptsp1medium
Curve provenanceInspect 1 traceHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
frequency response
Frequency response
240 plotted pointsMedium confidence1,633 selected pixels of 1,745
T/S Parameters
Valid
Fs65Hz
Qts0.39
Qes0.45
Qms2.7
Vas5.3L
Re3.6Ω
Le0.43mH
BL5.7Tm
Sd79cm²
Mms10g
Xmax4.0mm
SPL87dB
Power180W
Power Nominal70W
Impedance4Ω
F Low60Hz
F High60Hz
Voice Coil32mm
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight1.4kg
Diameter129.5mm
Overall Depth69.5mm
Cutout Diameter112.0mm
Bolt Circle Diameter138.0mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
CIARE
CW131
5"
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size. Pin a driver to open a side-by-side comparison.
12 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
86%
Similarity
£36.97
Dayton Audio
RS125-8
5"
Xmax4mm0%
Qts0.34-13%
BL5.7Tm0%
Vas4.8L-10%
Qes0.42-7%
Image unavailable
84%
Similarity
Wavecor
WF118WA08
4.5"
Xmax4mm0%
Qts0.42+8%
BL5.8Tm+2%
Vas4.9L-8%
Qes0.450%
81%
Similarity
CIARE
HW131
5"
Xmax4.4mm+10%
Qts0.390%
BL7Tm+24%
Vas5.6L+6%
Qes0.46+2%
73%
Similarity
£19.96
Dayton Audio
DS115-8
4"
Xmax4.1mm+2%
Qts0.38-3%
BL5.9Tm+4%
Vas4.3L-18%
Qes0.46+2%
72%
Similarity
£36.97
Dayton Audio
RS125P-8
5"
Xmax4mm0%
Qts0.44+13%
BL5.1Tm-11%
Vas4L-25%
Qes0.53+18%
Image unavailable
72%
Similarity
Wavecor
WF120BD05
4.5"
Xmax4mm0%
Qts0.43+10%
BL4.1Tm-28%
Vas5.3L0%
Qes0.450%
71%
Similarity
£203.94
Visaton
TI 100
4"
Xmax4mm0%
Qts0.41+5%
BL5Tm-12%
Vas5.7L+7%
Qes0.44-2%
71%
Similarity

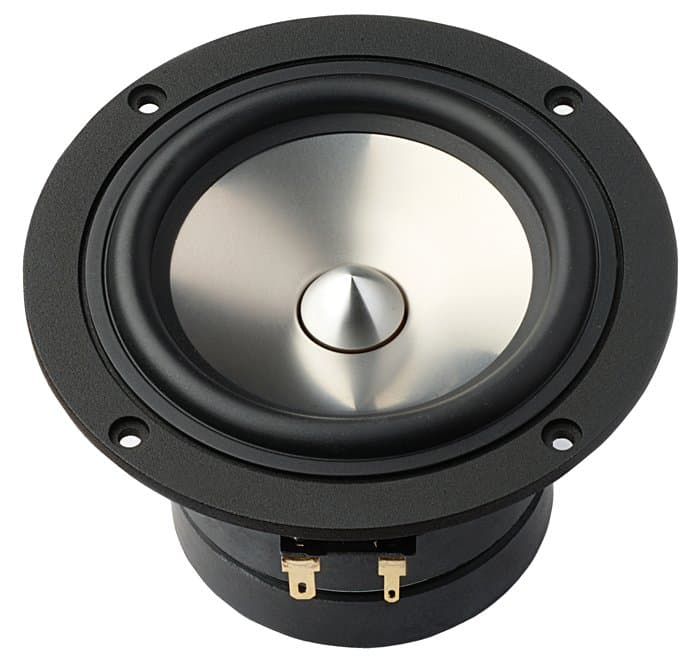

Visaton
TI 100 - 8 OHM
4"
Xmax4mm0%
Qts0.41+5%
BL5Tm-12%
Vas5.7L+7%
Qes0.44-2%
71%
Similarity

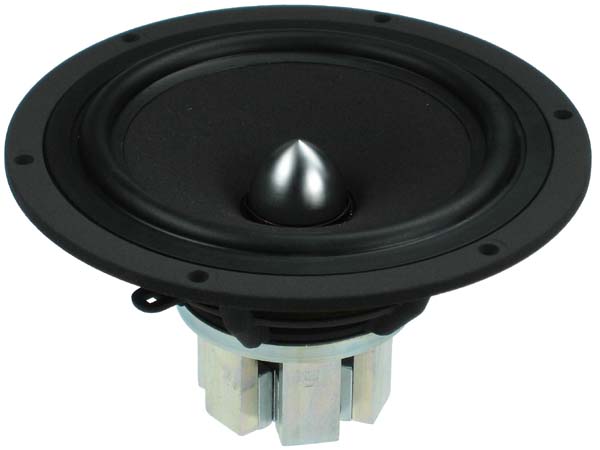

SEAS
