Wavecor WF120BD03 4Ω
LF DriverMedia
Overview
LF DriverWF120BD series
Wavecor

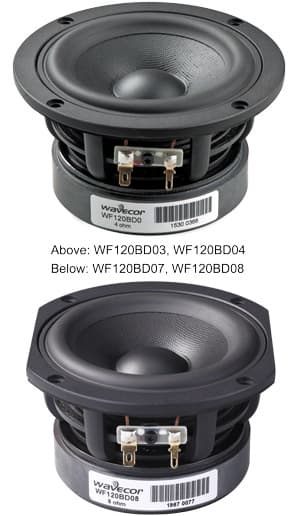

Wavecor WF120BD03
Wavecor WF120BD03 is a 4.5" 4 ohm LF driver. The validated T/S data includes Fs 70Hz, Qts 0.42, Vas 3.3L, Xmax 4mm, sensitivity 85.9dB, plus 22cm³ Vd and 152 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
4.5"
Impedance
4Ω
Sensitivity
85.9dB
EBP
152
Vented alignment
Vd
22cm³
T/S Parameters
Valid
Fs70Hz
Qts0.42
Qes0.46
Qms5.9
Vas3.3L
Re3.2Ω
BL4.5Tm
Sd54cm²
Mms7g
XmaxDerived4.0mm
SPL86dB
Impedance4Ω
Voice Coil26mm
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Not enough T/S data
Missing Le, RMS power
BASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Not enough T/S data
Missing Le, RMS power
VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Not enough T/S data
Missing Le, RMS power
00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Diameter120.7mm
