LF DriverCM series
CIARE

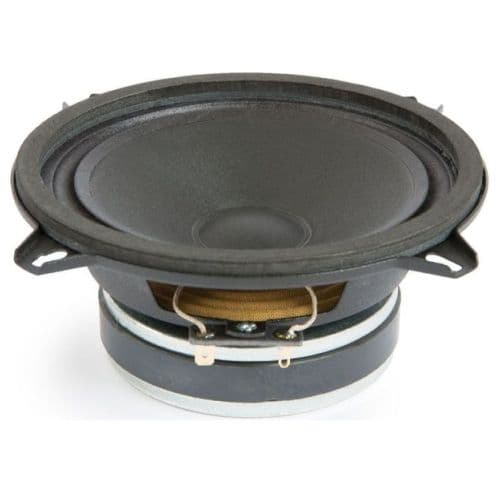

CIARE CM132
CIARE CM132 is a 5" 4 ohm LF driver rated at 180W RMS. The validated T/S data includes Fs 115Hz, Qts 0.43, Vas 3.8L, Xmax 1.6mm, sensitivity 92.2dB, plus 13cm³ Vd and 209 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
5"
Impedance
4Ω
RMS Power
180W
Sensitivity
92.2dB
90.0dBmanufacturer; using T/S-derived value (2.2dB delta).
EBP
209
Vented alignment
Vd
13cm³
Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
frequency response240 ptsp1medium
Curve provenanceInspect 1 traceHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
frequency response
Frequency response
240 plotted pointsMedium confidence1,706 selected pixels of 1,914
T/S Parameters
Valid
Fs115Hz
Qts0.43
Qes0.55
Qms2.1
Vas3.8L
Re3.5Ω
Le0.12mH
BL4.4Tm
Sd79cm²
Mms4g
Xmax1.6mm
SPL92dB
Power180W
Power Nominal90W
Impedance4Ω
F Low120Hz
F High5000Hz
Voice Coil25mm
Pricing & availability
Price definitionsNo current price found
Pricing may appear after the next vendor refresh.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight0.9kg
Diameter129.5mm
Overall Depth56.5mm
Cutout Diameter112.0mm
Bolt Circle Diameter138.6mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
CIARE
CM132
5"
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size.
8 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
Image unavailable
73%
Similarity
Wavecor
MR120BD02
4.5"
Xmax1.5mm-6%
Qts0.44+2%
BL4.2Tm-5%
Vas3.2L-16%
Qes0.46-16%
Image unavailable
72%
Similarity
Wavecor
MR120BD01
4.5"
Xmax1.5mm-6%
Qts0.45+5%
BL4.2Tm-5%
Vas3.1L-18%
Qes0.47-15%
64%
Similarity
£75.00

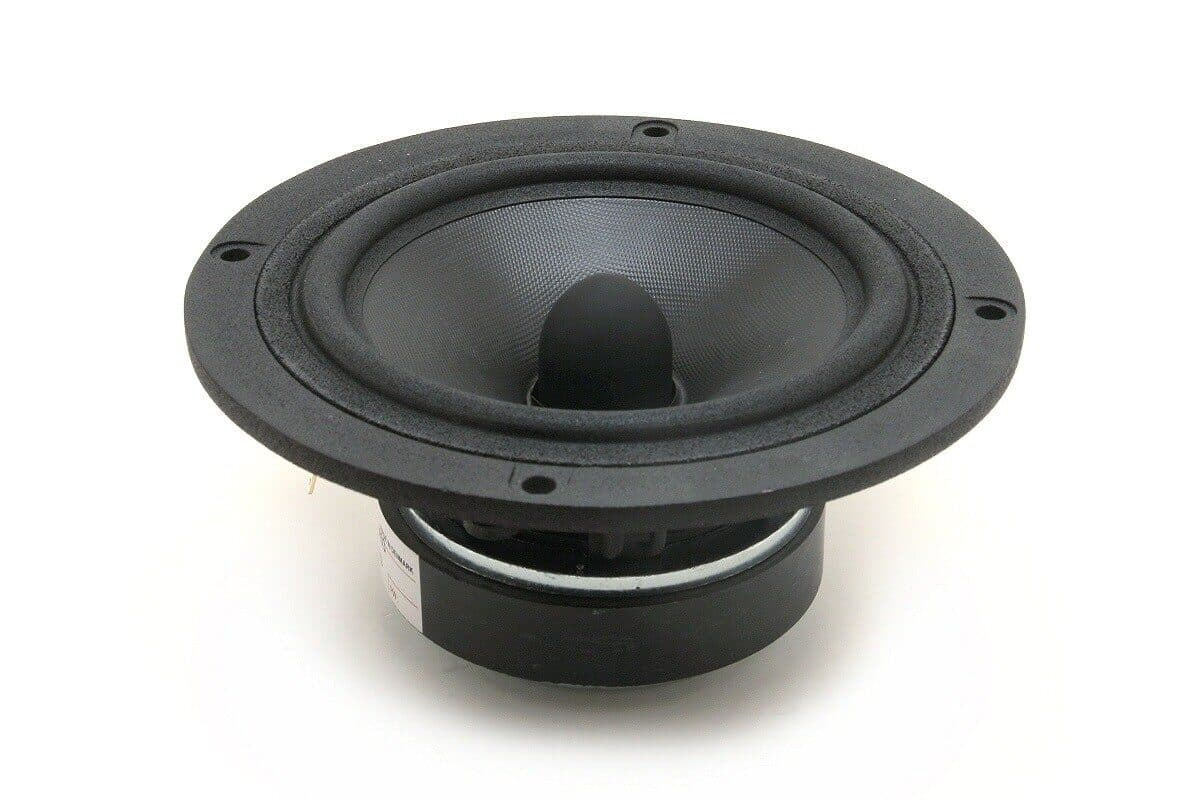

Scanspeak
15M/4624G00
6"
Xmax1.5mm-6%
Qts0.430%
BL5.3Tm+20%
Vas3.7L-3%
Qes0.47-15%
53%
Similarity
£34.69
CIARE
CM100
4"
Xmax1.9mm+19%
Qts0.430%
BL4.1Tm-8%
Vas1.8L-53%
Qes0.52-5%
45%
Similarity
Tang Band
W4-1129E
4"
Xmax1.8mm+12%
Qts0.44+2%
BL5.2Tm+17%
Vas1.7L-55%
Qes0.46-16%
Image unavailable
42%
Similarity
Wavecor
WF118OM01
4.5"
Xmax1.9mm+19%
Qts0.53+23%
BL3.4Tm-23%
Vas5.5L+45%
Qes0.56+2%
35%
Similarity
£22.80

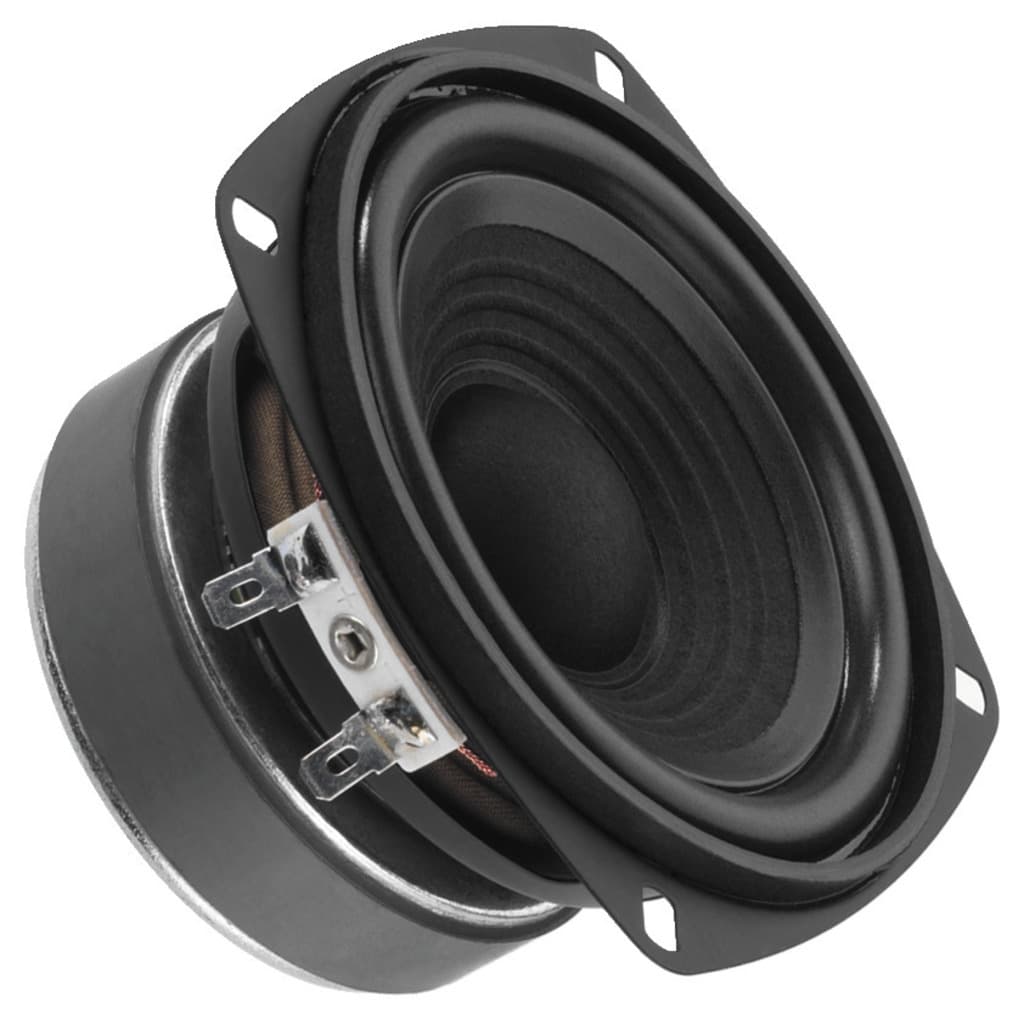

Monacor
