Hornresp
.txt · Hornresp driver database
Driver file ready to place in Hornresp’s Drivers folder.
Download for HornrespVisaton B 100 6Ω
LF DriverMedia
Auto-advancing
Overview
LF DriverB series
Visaton

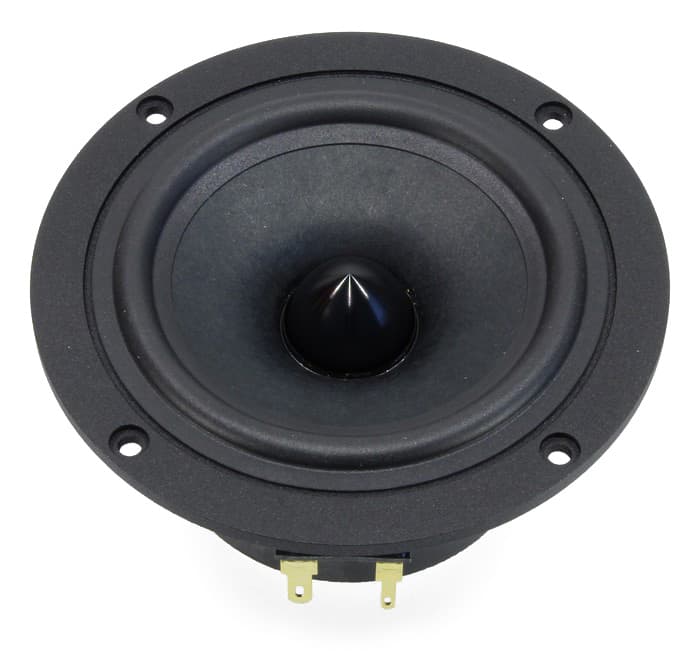

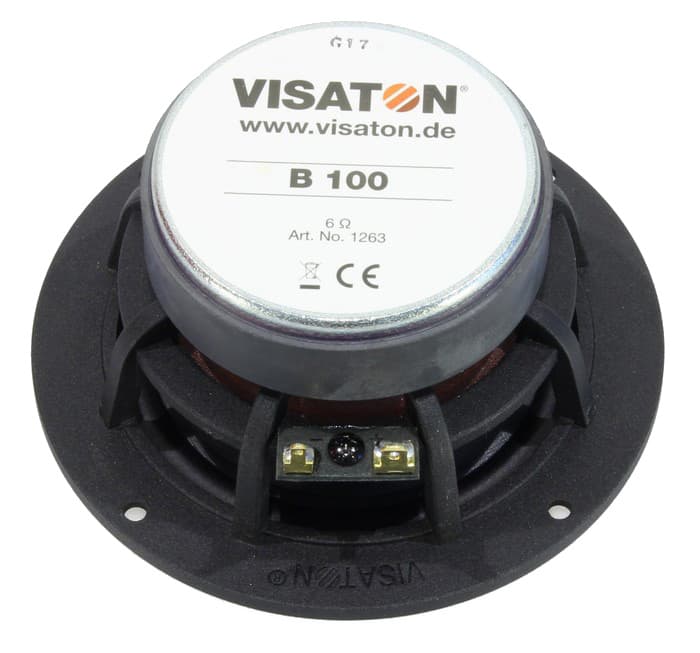

Visaton B 100
Rated 4.7 out of 53 ratings at 1 shopVisaton B 100 is a 4" 6 ohm LF driver rated at 30W RMS. The validated T/S data includes Fs 75Hz, Qts 0.52, Vas 5.3L, Xmax 7mm, sensitivity 88.2dB, plus 38cm³ Vd and 139 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £82.99.
Size
4"
Impedance
6Ω
RMS Power
30W
Sensitivity
88.2dB
EBP
139
Vented alignment
Vd
38cm³
Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
frequency response240 ptsp1medium
Curve provenanceInspect 2 tracesHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v2
frequency response
Frequency response
240 plotted pointsSource file SHA-256 8c81905ae56d…Medium confidence1,041 selected pixels of 1,589 - Trace datasheet-response-trace-poc/v2
impedance
Impedance response
230 plotted pointsSource file SHA-256 8c81905ae56d…Medium confidence362 selected pixels of 416
T/S Parameters
Valid
Fs75Hz
Qts0.52
Qes0.54
Qms10.1
Vas5.3L
Re5.8Ω
Le0.36mH
BL4.1Tm
Sd54cm²
Mms3g
Xmax7.0mm
SPL88dB
Power30W
Impedance6Ω
F High20000Hz
Voice Coil26mm
Flux Density1.29T
Pricing & availability
Price definitionsPrice movement
Other offers
2 vendorsHifisound
Updated 28 Sept 2026· 6Ω
Source: inc VAT · 19%
£88.13
inc VAT
Impact Audio
Updated 28 Sept 2026· 6Ω
Source: ex VAT · 20%
£100.74
inc VAT
In stock
Best current price
Updated 28 Sept 2026
SoundImports
£82.99
Avg £90.62£7.63 below avg (-8.4%)
inc VAT·8 in stock
Reviews
How ratings workRated 4.7 out of 5from 3 ratings at 1 shop
- Read reviews on SoundImportsSoundImportsRated 4.7 out of 5 · 3 ratings · Checked 28 Sep 2026
Each shop collects its own ratings. Bits shows them as published and doesn't verify them.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight0.7kg
Diameter100.0mm
Cutout Diameter101.0mm
