Overview
LF DriverSPM series
Monacor
Monacor SPM-116/8
Monacor SPM-116/8 is a 4" 8 ohm LF driver rated at 40W RMS. The validated T/S data includes Fs 75Hz, Qts 0.57, Vas 4.5L, Xmax 1.5mm, sensitivity 85.7dB, plus 9cm³ Vd and 93 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
4"
Impedance
8Ω
RMS Power
40W
Sensitivity
85.7dB
87.0dBmanufacturer; using T/S-derived value (1.3dB delta).
EBP
93
Either alignment
Vd
9cm³
T/S Parameters
Valid
Fs75Hz
Qts0.57
Qes0.81
Qms1.9
Vas4.5L
Re7.2Ω
Le0.40mH
BL4.2Tm
Sd57cm²
Mms4g
Xmax1.5mm
SPL86dB
Power40W
Impedance8Ω
F Low3Hz
F High18000Hz
Voice Coil21mm
Pricing & availability
Price definitionsVendor offers
1 vendorsoundimports
Updated 11 Sept 2026· 8Ω
Source: inc VAT
£18.43
inc VAT
Out of stock
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.

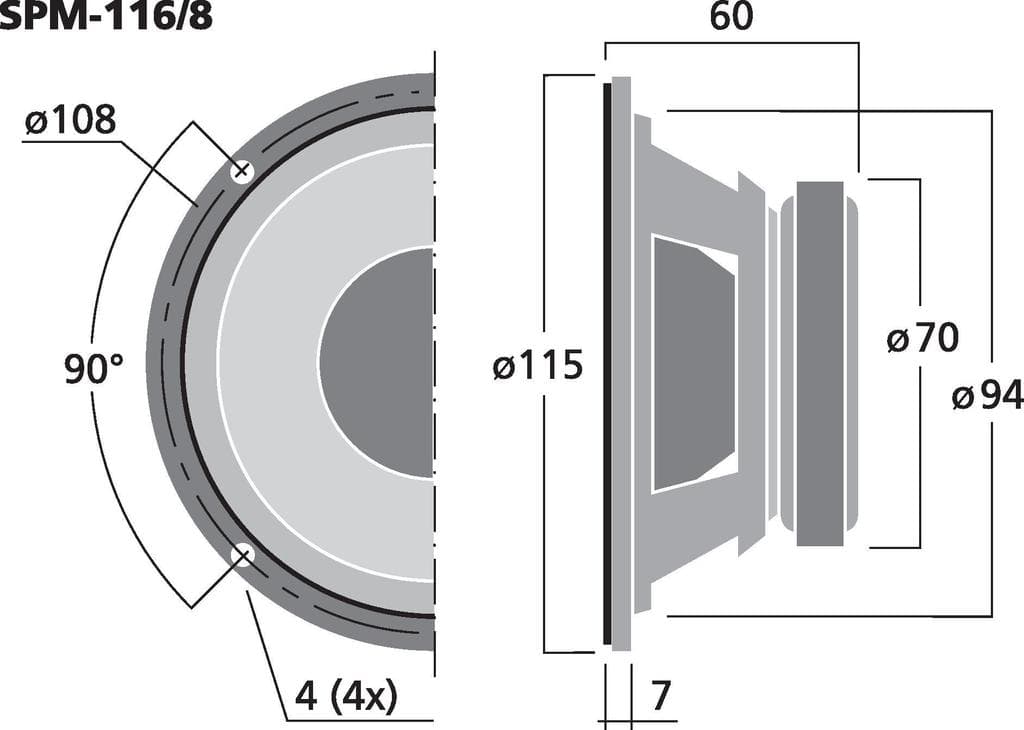

Dimensions & Physical
Weight0.6kg
Diameter115.0mm
Overall Depth60.0mm
Cutout Diameter94.0mm
