Overview
LF DriverSPM series
Monacor

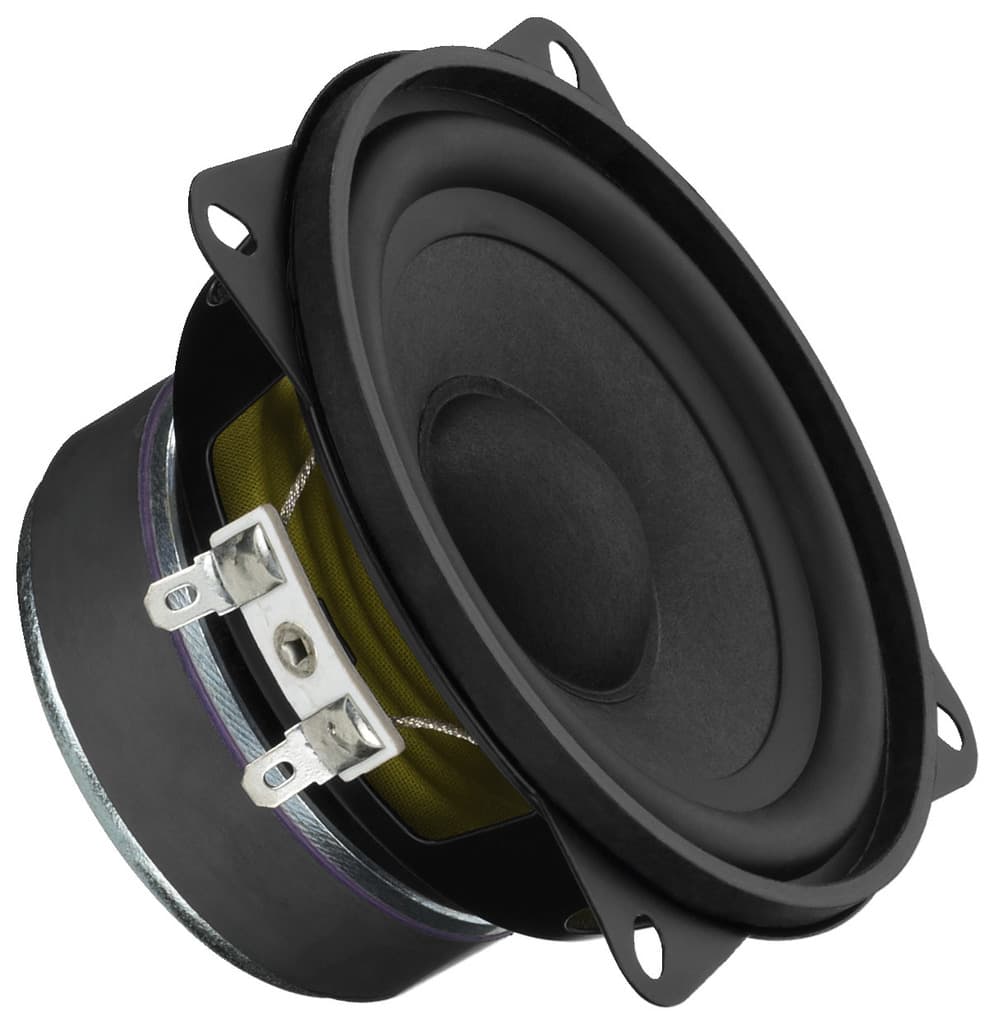

Monacor SPM-100/8
Monacor SPM-100/8 is a 4" 8 ohm LF driver rated at 25W RMS. The validated T/S data includes Fs 75Hz, Qts 0.67, Vas 4L, Xmax 1mm, sensitivity 84.3dB, plus 6cm³ Vd and 74 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
4"
Impedance
8Ω
RMS Power
25W
Sensitivity
84.3dB
86.0dBmanufacturer; using T/S-derived value (1.7dB delta).
EBP
74
Either alignment
Vd
6cm³
T/S Parameters
Valid
Fs75Hz
Qts0.67
Qes1.01
Qms2.0
Vas4.0L
Re7.2Ω
Le0.40mH
BL4.1Tm
Sd57cm²
Mms4g
Xmax1.0mm
SPL84dB
Power25W
Impedance8Ω
F Low3Hz
F High18000Hz
Voice Coil20mm
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.

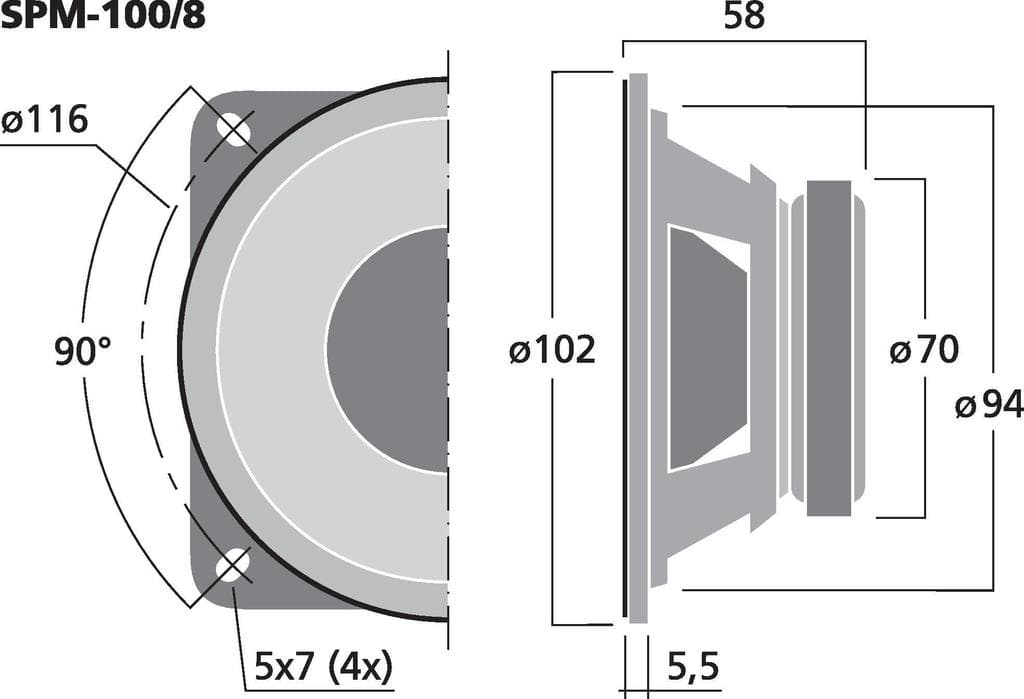

Dimensions & Physical
Weight0.5kg
Diameter102.0mm
Overall Depth58.0mm
Cutout Diameter94.0mm
