LF DriverFSN030 series
Lavoce

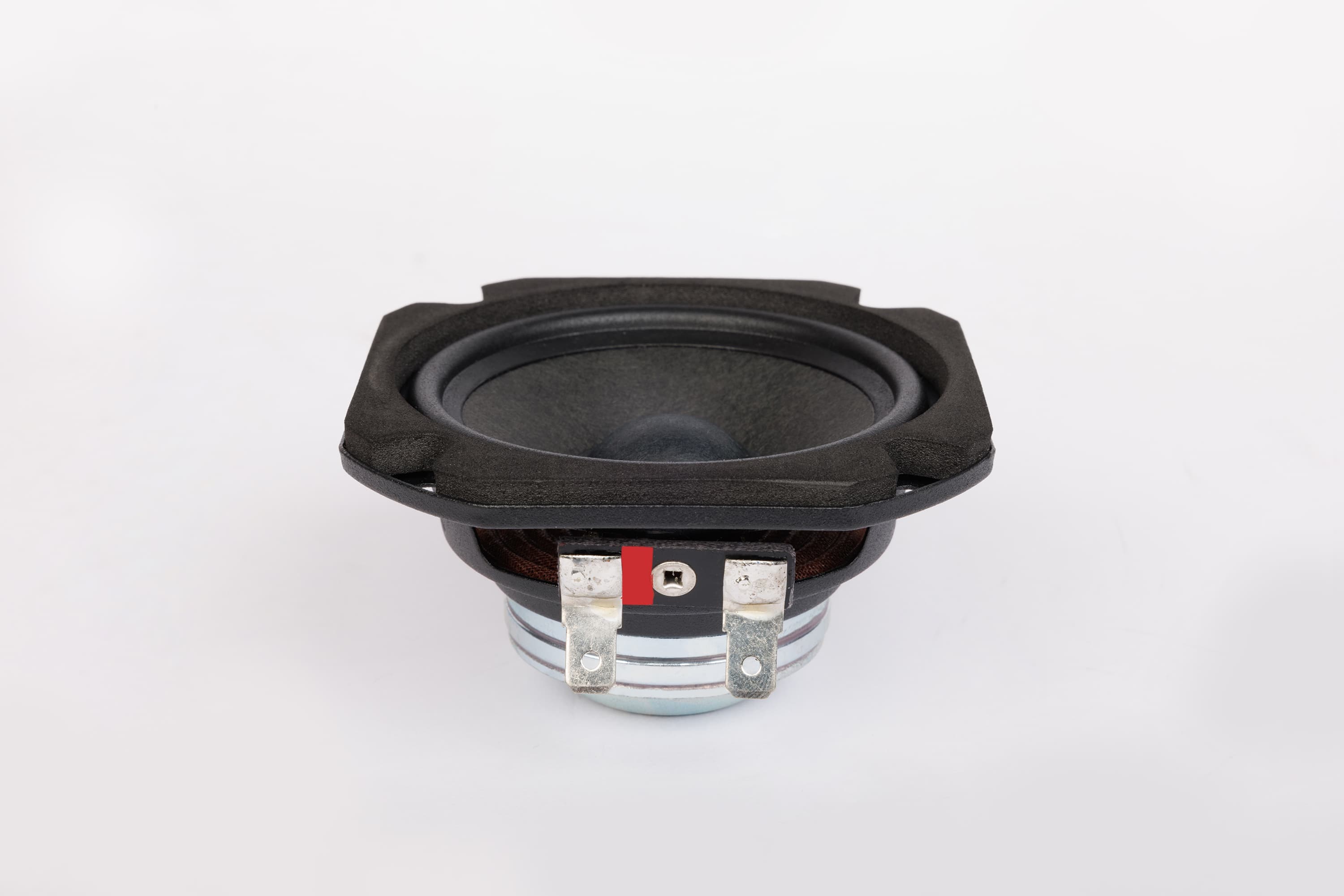

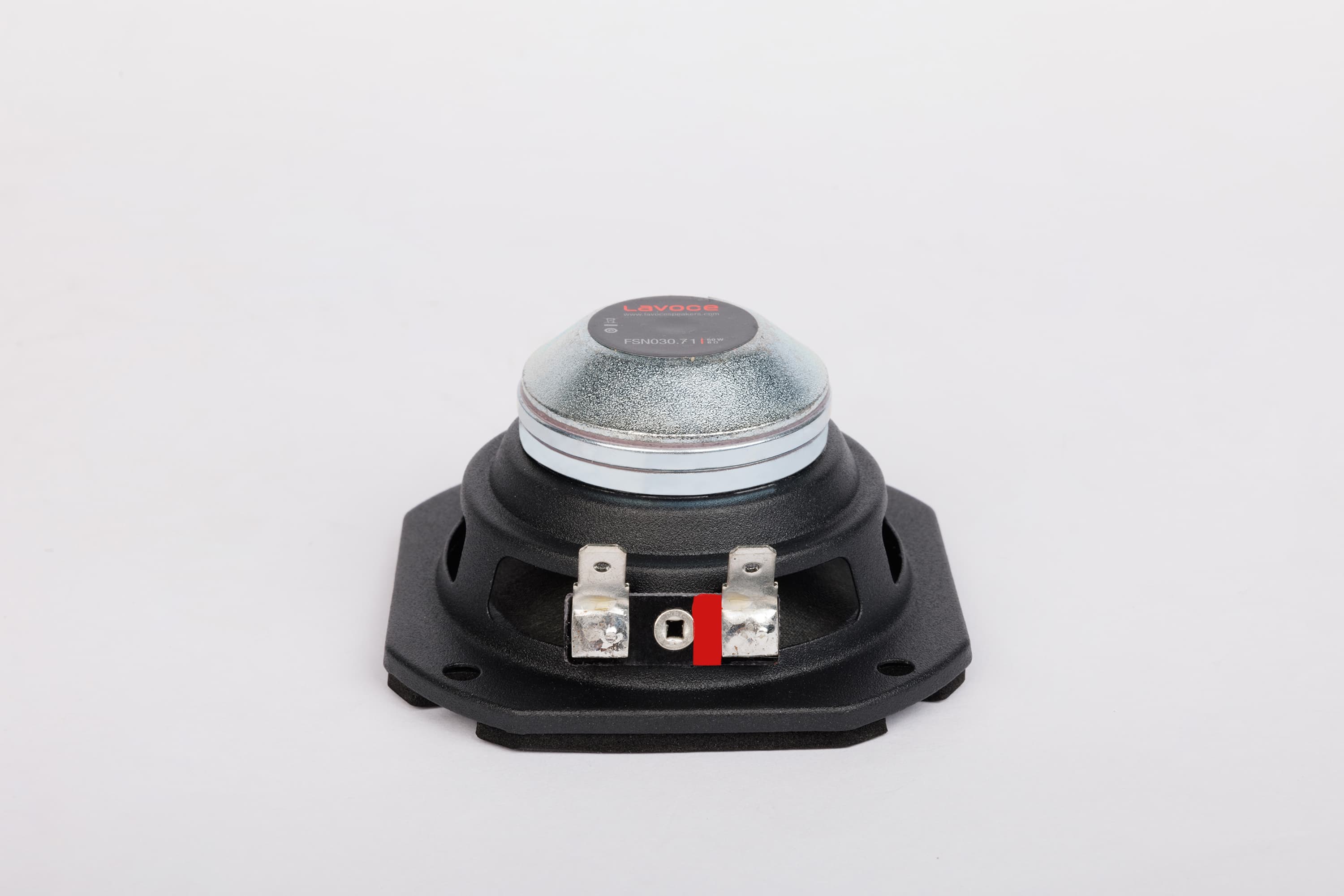

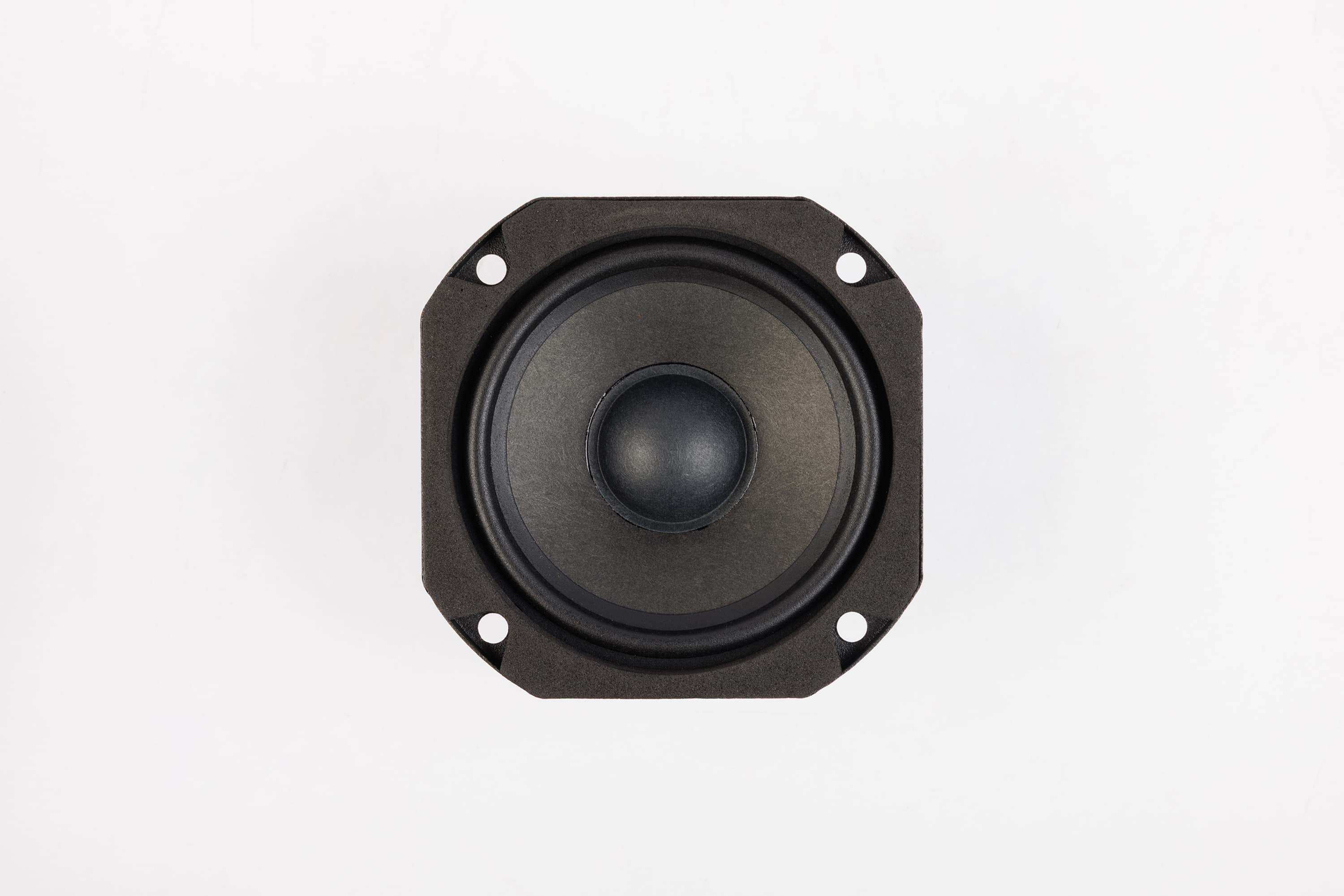

Lavoce FSN030.71
Lavoce FSN030.71 is a 3" 8 ohm LF driver rated at 30W RMS. The validated T/S data includes Fs 134Hz, Qts 0.67, Vas 1.0L, Xmax 2.1mm, sensitivity 87.3dB, plus 7cm³ Vd and 181 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £21.72.
Size
3"
Impedance
8Ω
RMS Power
30W
Sensitivity
87.3dB
88.5dBmanufacturer; using T/S-derived value (1.2dB delta).
EBP
181
Vented alignment
Vd
7cm³
T/S Parameters
Valid
Fs134Hz
Qts0.67
Qes0.74
Qms6.2
Vas1.0L
Re6.2Ω
Le0.07mH
BL3.8Tm
Sd33cm²
Mms2g
Xmax2.1mm
SPL87dB
Power30W
Impedance8Ω
Min Impedance7.0Ω
F Low120Hz
F High21000Hz
Voice Coil20mm
Pricing & availability
Price definitionsPrice movement
Best current price
£21.72
inc VAT·Vendor hidden
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.

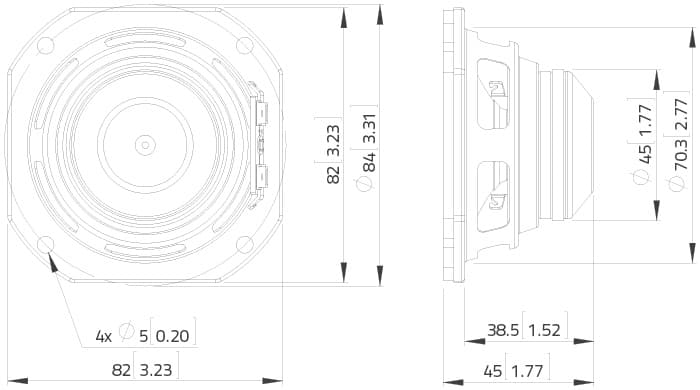

Dimensions & Physical
Weight0.2kg
