3-inch LF driver · FR084WA series · 22 mm voice coil

Wavecor FR084WA02 8Ω

Name: Wavecor FR084WA02 8 Ohm
Brand: Wavecor
SKU: FR084WA02

8 Ω

No price for delivery to the UK

All 1 offer

Open in 00 Simulator

Fs: 109Hz
Xmax: 2.5mm
SPL: 84dB
Pe: –
BL: 3.6T·m
Vd: 9cm³
Qts: 0.79
Vas: 1L

See all 18 specs

Specifications

Published by Wavecor

Manufacturer page

Datasheet PDF

Wavecor FR084WA02 is a 3-inch 8 ohm LF driver. The validated T/S data includes Fs 109 Hz, Qts 0.79, Vas 1.1 L, Xmax 2.5 mm, sensitivity 84 dB, plus 9 cm³ Vd and 117 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.

The published T/S values agree with each other

Thiele/Small

Fs: 109Hz
Qts: 0.79
Qes: 0.93
Qms: 5.4
Vas: 1.1L
Re: 6.1Ω

Motor and cone

BL: 3.6T·m
Sd: 36cm²
Mms: 3g
Xmax: 2.5mm
Vd †: 9cm³
Voice coil: 22mm

Power and response

Sensitivity †: 84dB
Impedance: 8Ω
EBP †: 117 · Leans vented

Size and mounting

Diameter: 82.5mm

Other published values

Cms: 0.62mm/N
Rms: 0.44kg/s

† Calculated by bits from the published values

What this validation status means

Everything else Wavecor lists

LF · Primary · 3″

BL: 3.6T·m
Fs: 109Hz
Re: 6.1Ω
Sd: 36cm²
Cms: 0.62mm/N
Mms: 3g
Qes: 0.93
Qms: 5.4
Qts: 0.79
Rms: 0.44kg/s
SPL: 84dB
Vas: 1.1L
Xmax: 2.5mm
Impedance: 8Ω
Calculated sensitivity †: 84dB
Voice coil: 22mm
Diameter: 82.5mm

Compare

Same-size drivers, compared with the FR084WA02. Clear differences are green when better and red when worse.

This driverFR084WA02

Best price

–

109 Hz

Qts

0.79

Vas

1.1 L

3.6 T·m

Xmax

2.5 mm

Sensitivity

84 dB

Power

–

FaitalPRO3FE25

£8.68

Fs110 Hz –

Qts0.66 −16%

Vas1.3 L +14%

BL3.6 T·m –

Xmax1.8 mm −27%

Sensitivity85.4 dB +1.4

REDCATT30FF

£9.00

Fs119 Hz +9%

Qts0.78 –

Vas0.8 L −29%

BL3.3 T·m −11%

Xmax19 mm +660%

Sensitivity83.5 dB −0.5

Dayton AudioPCS115-4

£9.71

Fs88 Hz −19%

Qts0.79 –

Vas1.8 L +55%

BL3.6 T·m –

Xmax2.8 mm +10%

Sensitivity82.6 dB −1.4

LavoceFSF030.70

£10.04

Fs123 Hz +13%

Qts0.77 –

Vas1.2 L –

BL3.5 T·m −5%

Xmax2.1 mm −16%

Sensitivity85.9 dB +1.9

Dayton AudioPC68-8

£11.26

Fs109 Hz –

Qts0.64 −19%

Vas1.3 L +14%

BL3.3 T·m −10%

Xmax2 mm −20%

Sensitivity84.8 dB +0.8

Dayton AudioCE81PF-8

£12.52

Fs97 Hz −11%

Qts0.81 –

Vas1.0 L −12%

BL3.7 T·m –

Xmax2.7 mm +8%

Sensitivity82.1 dB −1.9

SB AcousticsSB10PGC21-4

£14.23

Fs89 Hz −18%

Qts0.92 +16%

Vas1.2 L +5%

BL2.3 T·m −37%

Xmax2.3 mm −10%

Sensitivity81.3 dB −2.7

PeerlessPLS-P830986

£14.59

Fs110 Hz –

Qts0.80 –

Vas0.8 L −27%

BL3.5 T·m −5%

Xmax3.4 mm +35%

Sensitivity82.7 dB −1.3

REDCATT31NFR

£15.45

Fs115 Hz +6%

Qts0.88 +11%

Vas0.85 L −25%

BL3.5 T·m −4%

Xmax1.7 mm −32%

Sensitivity83.4 dB −0.6

FaitalPRO4FE35

£16.58

Fs100 Hz −8%

Qts0.83 +5%

Vas2.4 L +111%

BL3.9 T·m +7%

Xmax2.7 mm +9%

Sensitivity85.7 dB +1.7

FaitalPRO3FE26

£18.83

Fs150 Hz +38%

Qts0.79 –

Vas0.9 L −21%

BL3.3 T·m −10%

Xmax2 mm −20%

Sensitivity86.4 dB +2.4

REDCATT25NFR

£19.63

Fs123 Hz +13%

Qts0.71 −10%

Vas0.46 L −60%

BL4 T·m +10%

Xmax2.6 mm +6%

Sensitivity82.3 dB −1.7

LavoceFSF041.00

£20.20

Fs132 Hz +21%

Qts0.85 +8%

Vas1.6 L +38%

BL4.3 T·m +17%

Xmax2.2 mm −12%

Sensitivity87.3 dB +3.3

EminenceALPHA 3-32

£20.53

Fs117 Hz +7%

Qts0.74 −6%

Vas1.0 L −14%

BL6.5 T·m +77%

Xmax2.6 mm +4%

Sensitivity84.7 dB +0.7

Dayton AudioPS95-8

£22.10

Fs120 Hz +10%

Qts0.72 −9%

Vas0.9 L −18%

BL3.8 T·m +5%

Xmax2.5 mm –

Sensitivity85.1 dB +1.1

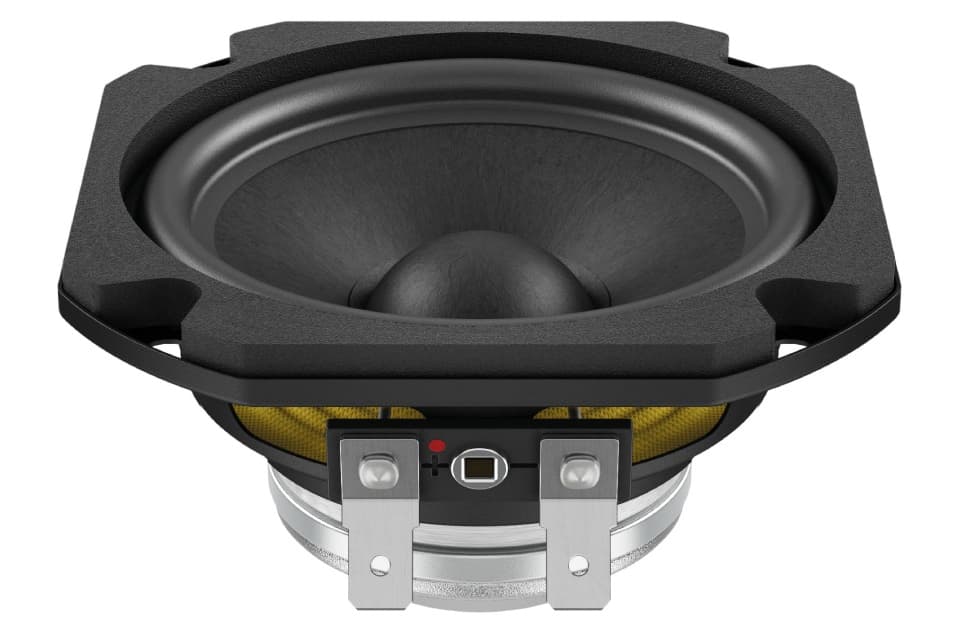

LavoceFSN030.71

£24.69

Fs134 Hz +23%

Qts0.67 −15%

Vas1.0 L −9%

BL3.8 T·m +5%

Xmax2.1 mm −16%

Sensitivity87.3 dB +3.3

CIAREHM100

£27.63

Fs160 Hz +47%

Qts0.70 −11%

Vas1.1 L −4%

BL5.1 T·m +39%

Xmax2.2 mm −12%

Sensitivity88.7 dB +4.7

CelestionAN2075

£33.66

Fs153 Hz +41%

Qts0.84 +6%

Vas1.5 L +32%

BL2.7 T·m −26%

Xmax2.3 mm −10%

Sensitivity89.4 dB +5.4

WavecorWF090WA01

£41.14

Fs115 Hz +6%

Qts0.81 –

Vas1.0 L −11%

BL2.9 T·m −21%

Xmax2.8 mm +10%

Sensitivity84.3 dB –

WavecorWF090WA02

£57.10

Fs109 Hz –

Qts0.76 −4%

Vas1.1 L –

BL3.5 T·m −4%

Xmax2.8 mm +10%

Sensitivity84.3 dB –

WavecorFR090WA02

£61.12

Fs109 Hz –

Qts0.85 +8%

Vas1.1 L –

BL3.4 T·m −7%

Xmax2.3 mm −10%

Sensitivity83.7 dB –

WavecorFR090WA01

£61.12

Fs113 Hz +4%

Qts0.88 +11%

Vas1.1 L −6%

BL2.8 T·m −25%

Xmax2.3 mm −10%

Sensitivity83.8 dB –

WavecorFR084WA01

£61.71

Fs113 Hz +4%

Qts0.82 +4%

Vas1.1 L −6%

BL2.9 T·m −21%

Xmax2 mm −20%

Sensitivity84.1 dB –

Dayton AudioCFC100-8

No current price

Fs107 Hz –

Qts0.78 –

Vas0.75 L −34%

BL3.9 T·m +7%

Xmax2.5 mm –

Sensitivity81.6 dB −2.4

PeerlessPLS-75F25AL02-08

No current price

Fs100 Hz −8%

Qts0.74 −6%

Vas1.1 L −5%

BL3.6 T·m –

Xmax3.4 mm +35%

Sensitivity83.1 dB −0.9

LavoceFSN020.71F

No current price

Fs212 Hz +94%

Qts0.82 +4%

Vas0.22 L −81%

BL3.2 T·m −11%

Xmax2.4 mm −4%

Sensitivity85.5 dB +1.5

HiViM3N

No current price

Fs91 Hz −17%

Qts0.80 –

Vas1.5 L +32%

BL3 T·m −18%

Xmax3 mm +20%

Sensitivity82.4 dB −1.6

WavecorFR084OM01

No current price

Fs115 Hz +6%

Qts0.92 +16%

Vas1.1 L −5%

BL2.8 T·m −25%

Xmax2.3 mm −10%

Sensitivity84.1 dB –

WavecorFR070OM01

No current price

Fs116 Hz +6%

Qts0.83 +5%

Vas0.6 L −47%

BL2.3 T·m −37%

Xmax2.5 mm –

Sensitivity82.3 dB −1.7

Dayton AudioCFC100-4

No current price

Fs94 Hz −14%

Qts0.60 −24%

Vas0.8 L −27%

BL3.1 T·m −14%

Xmax2.5 mm –

Sensitivity81.7 dB −2.3

Search similar

Tune the match

Choose the published values that matter to your design. Size stays matched to this driver.

Qts

Qes

Vas

Xmax

Where to buy

Prices for delivery to the UK, including VAT. How prices work

Watch price

Shop	Price	Against the lowest	Stock	Link
Lautsprechershop Checked 26 Oct 2026 · Ships from Germany · 8 Ω · Source: inc VAT · 19% Import VAT and duty may apply	£61.71		Special order	Visit shop at Lautsprechershop
