Overview
LF Driver
Dayton Audio
Dayton Audio CE81PF-8
Dayton Audio CE81PF-8 is a 3" 8 ohm LF driver rated at 15W RMS. The validated T/S data includes Fs 97Hz, Qts 0.81, Vas 1.0L, Xmax 2.7mm, sensitivity 82.1dB, plus 8cm³ Vd and 108 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
3"
Impedance
8Ω
RMS Power
15W
Sensitivity
82.1dB
84.0dBmanufacturer; using T/S-derived value (1.9dB delta).
EBP
108
Vented alignment
Vd
8cm³
Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
15 degrees202 ptsp1medium
30 degrees224 ptsp1medium
on-axis240 ptsp1medium
Curve provenanceInspect 3 tracesHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
15 degrees
Frequency response
202 plotted pointsMedium confidence1,429 selected pixels of 1,940 - Trace datasheet-response-trace-poc/v1
30 degrees
Frequency response
224 plotted pointsMedium confidence974 selected pixels of 1,643 - Trace datasheet-response-trace-poc/v1
on-axis
Frequency response
240 plotted pointsMedium confidence3,824 selected pixels of 3,824
T/S Parameters
Valid
Fs97Hz
Qts0.81
Qes0.90
Qms7.9
Vas1.0L
Re6.7Ω
Le0.14mH
BL3.7Tm
Sd28cm²
Mms3g
Xmax2.7mm
SPL82dB
Power15W
Impedance8Ω
F Low80Hz
F High18000Hz
Pricing & availability
Price definitionsVendor offers
1 vendorsoundimports
Updated 11 Sept 2026· 8Ω
Source: inc VAT
£12.84
inc VAT
Out of stock
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight0.5kg
Diameter81.0mm
Overall Depth50.5mm
Cutout Diameter70.0mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Dayton Audio
CE81PF-8
3"
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size. Pin a driver to open a side-by-side comparison.
12 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
88%
Similarity
Wavecor
FR084WA02
3"
Xmax2.5mm-7%
Qts0.79-2%
BL3.6Tm-2%
Vas1.1L+14%
Qes0.93+3%
Image unavailable
79%
Similarity
Wavecor
WF090WA01
3.5"
Xmax2.8mm+2%
Qts0.810%
BL2.9Tm-22%
Vas1L+2%
Qes0.92+2%
78%
Similarity
Wavecor
WF090WA02
3.5"
Xmax2.8mm+2%
Qts0.76-6%
BL3.5Tm-6%
Vas1.1L+14%
Qes0.87-3%
76%
Similarity
£9.23
Lavoce
FSF030.70
3"
Xmax2.1mm-22%
Qts0.77-5%
BL3.5Tm-7%
Vas1.2L+17%
Qes0.89-1%
75%
Similarity
£14.42
Peerless
PLS-P830986
3"
Xmax3.4mm+25%
Qts0.8-1%
BL3.5Tm-7%
Vas0.8L-16%
Qes0.94+5%
73%
Similarity

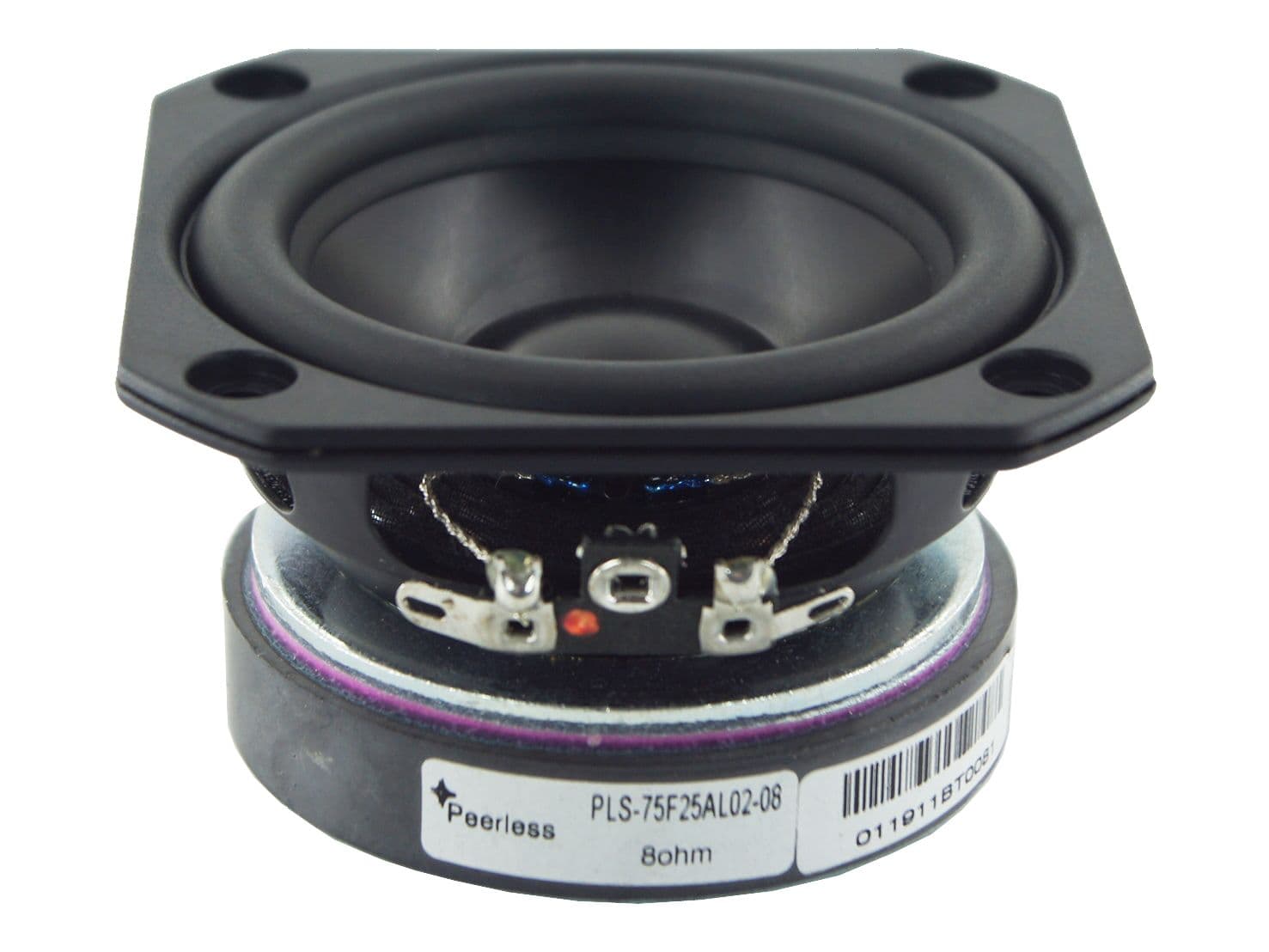

Peerless
PLS-75F25AL02-08
3"
Xmax3.4mm+25%
Qts0.74-9%
BL3.6Tm-4%
Vas1.1L+8%
Qes0.84-7%
Image unavailable
69%
Similarity
Wavecor
FR084WA01
3"
Xmax2mm-26%
Qts0.82+1%
BL2.9Tm-22%
Vas1.1L+7%
Qes0.96+7%
66%
Similarity
£15.12
FaitalPRO
3FE26
3"
Xmax2mm-26%
Qts0.79-2%
BL3.3Tm-11%
Vas0.9L-10%
Qes1.1+22%
66%
Similarity
Wavecor
FR090WA02
3.5"
Xmax2.3mm-17%
Qts0.85+5%
BL3.4Tm-9%
Vas1.1L+14%
Qes1+11%
66%
Similarity
£21.72
Lavoce
FSN030.71
3"
Xmax2.1mm-22%
Qts0.67-17%
BL3.8Tm+3%
Vas1L+4%
Qes0.74-18%
64%
Similarity
Dayton Audio
PS95-8
2"
Xmax2.5mm-7%
Qts0.72-11%
BL3.8Tm+3%
Vas0.9L-6%
Qes0.8-11%
64%
Similarity
HiVi
M3N
3"
Xmax3mm+11%
Qts0.8-1%
BL3Tm-19%
Vas1.5L+50%
Qes1.03+14%
