FaitalPRO 3FE26 8Ω
100–20000 Hz
£20.89
SteadySoundImports · 12 in stock · Ships from Netherlands · All 6 offers
- Fs
- 150Hz
- Xmax
- 2mm
- SPL
- 86dB
- Pe
- 20W
- BL
- 3.3T·m
- Vd
- 7cm³
- Qts
- 0.79
- Vas
- 0.9L
Manufacturer response and impedance data, with source and trace details below. The left and right arrow keys read every shown curve at a frequency, a twelfth of an octave at a time, or an octave with Shift. Escape clears the reading.
Curve provenanceInspect 3 traces
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
0 degrees
Frequency response
143 plotted pointsMedium confidence406 selected pixels of 833 - Trace datasheet-response-trace-poc/v1
45 degrees
Frequency response
240 plotted pointsMedium confidence1,028 selected pixels of 1,028 - Trace datasheet-response-trace-poc/v1
impedance
Impedance response
240 plotted pointsMedium confidence1,255 selected pixels of 1,255

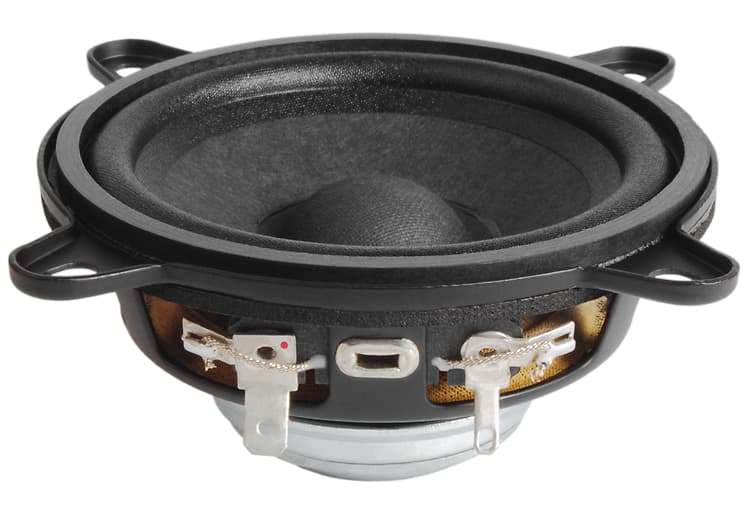

FaitalPRO 3FE26 is a 3-inch 8 ohm LF driver rated at 20 W RMS. The validated T/S data includes Fs 150 Hz, Qts 0.79, Vas 0.9 L, Xmax 2 mm, sensitivity 86.4 dB, plus 7 cm³ Vd and 136 EBP. bits tracks UK, EU and US shop prices, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £18.83.
The published T/S values agree with each other
Thiele/Small
- Fs
- 150Hz
- Qts
- 0.79
- Qes
- 1.10
- Qms
- 2.8
- Vas
- 0.9L
- Re
- 6.2Ω
- Le
- 0.12mH
Motor and cone
- BL
- 3.3T·m
- Sd
- 33cm²
- Mms
- 2g
- Xmax
- 2mm
- Vd †
- 7cm³
Power and response
- Sensitivity †
- 86.4dB
- Manufacturer sensitivity
- 90dB
- Power
- 20W
- Impedance
- 8Ω
- Range
- 100–20000Hz
- EBP †
- 136 · Leans vented
Size and mounting
- Diameter
- 105.6mm
- Cutout
- 73.6mm
- Bolt circle
- 92mm
- Depth
- 39.7mm
Other published values
- Cms
- 0.59mm/N
- Rms
- 0.60kg/s
- Power Program
- 40
Sensitivity shows 86.4 dB, calculated from the T/S values. FaitalPRO publishes 90.0 dB, 3.6 dB apart.
† Calculated by bits from the published values
What this validation status means
Everything else FaitalPRO lists
LF · Primary · 3″
- BL
- 3.3T·m
- Fs
- 150Hz
- Le
- 0.12mH
- Re
- 6.2Ω
- Sd
- 33cm²
- Cms
- 0.59mm/N
- Mms
- 2g
- Qes
- 1.10
- Qms
- 2.8
- Qts
- 0.79
- Rms
- 0.60kg/s
- SPL
- 86.4dB
- Vas
- 0.9L
- Xmax
- 2mm
- Power
- 20W
- Impedance
- 8Ω
- Sensitivity
- 90dB
- Low limit
- 100Hz
- Power Program
- 40
- Calculated sensitivity †
- 86.4dB
- High limit
- 20000Hz
- Manufacturer sensitivity
- 90dB
- Diameter
- 105.6mm
- Depth
- 39.7mm
- Cutout
- 73.6mm
- Bolt circle
- 92mm
02
Compare
Same-size drivers, compared with the 3FE26. Clear differences are green when better and red when worse.
This driver3FE26
Best price
£18.83
Fs
150 Hz
Qts
0.79
Vas
0.9 L
BL
3.3 T·m
Xmax
2 mm
Sensitivity
86.4 dB
Power
20 W
Dayton AudioPCS115-4
£9.71 · 48% less, betterFs88 Hz −41%, better
Qts0.79 –
Vas1.8 L +97%, worse
BL3.6 T·m +9%
Xmax2.8 mm +38%, better
Sensitivity82.6 dB −3.8, worse
LavoceFSF030.70
£10.04 · 47% less, betterFs123 Hz −18%, better
Qts0.77 –
Vas1.2 L +30%, worse
BL3.5 T·m +5%
Xmax2.1 mm +5%
Sensitivity85.9 dB −0.5
Dayton AudioPC68-8
£11.26 · 40% less, betterFs109 Hz −27%, better
Qts0.64 −19%, better
Vas1.3 L +44%, worse
BL3.3 T·m –
Xmax2 mm –
Sensitivity84.8 dB −1.6
Dayton AudioPC68-4
£11.26 · 40% less, betterFs117 Hz −22%, better
Qts0.65 −18%, better
Vas0.7 L −22%, better
BL2.4 T·m −27%, worse
Xmax2 mm –
Sensitivity83.1 dB −3.3, worse
Dayton AudioCE81PF-8
£12.52 · 34% less, betterFs97 Hz −35%, better
Qts0.81 –
Vas1.0 L +11%, worse
BL3.7 T·m +13%, better
Xmax2.7 mm +35%, better
Sensitivity82.1 dB −4.3, worse
PeerlessPLS-P830986
£14.59 · 23% less, betterFs110 Hz −27%, better
Qts0.80 –
Vas0.8 L −7%
BL3.5 T·m +5%
Xmax3.4 mm +69%, better
Sensitivity82.7 dB −3.7, worse
REDCATT31NFR
£15.45 · 18% less, betterFs115 Hz −23%, better
Qts0.88 +11%, worse
Vas0.85 L −6%
BL3.5 T·m +6%
Xmax1.7 mm −15%, worse
Sensitivity83.4 dB −3, worse
Dayton AudioPS95-8
£22.10 · 17% more, worseFs120 Hz −20%, better
Qts0.72 −9%
Vas0.9 L +4%
BL3.8 T·m +16%, better
Xmax2.5 mm +25%, better
Sensitivity85.1 dB −1.3
LavoceFSN030.71
£24.69 · 31% more, worseFs134 Hz −11%, better
Qts0.67 −15%, better
Vas1.0 L +16%, worse
BL3.8 T·m +16%, better
Xmax2.1 mm +5%
Sensitivity87.3 dB +0.9
WavecorFR070WA04
£33.41 · 77% more, worseFs114 Hz −24%, better
Qts0.87 +10%, worse
Vas0.6 L −32%, better
BL2.9 T·m −12%, worse
Xmax2 mm –
Sensitivity81.9 dB −4.5, worse
CelestionAN2075
£33.66 · 79% more, worseFs153 Hz –
Qts0.84 +6%
Vas1.5 L +68%, worse
BL2.7 T·m −18%, worse
Xmax2.3 mm +13%, better
Sensitivity89.4 dB +3, better
PRV Audio3MR40-NDY-4
£36.80 · 95% more, worseFs153 Hz –
Qts0.77 –
Vas0.6 L −30%, better
BL2.9 T·m −11%, worse
Xmax1.4 mm −30%, worse
Sensitivity85.6 dB −0.8
WavecorWF090WA01
£41.14 · 118% more, worseFs115 Hz −23%, better
Qts0.81 –
Vas1.0 L +13%, worse
BL2.9 T·m −12%, worse
Xmax2.8 mm +38%, better
Sensitivity84.3 dB −2.1, worse
WavecorWF090WA02
£57.10 · 203% more, worseFs109 Hz −27%, better
Qts0.76 −4%
Vas1.1 L +27%, worse
BL3.5 T·m +6%
Xmax2.8 mm +38%, better
Sensitivity84.3 dB −2.1, worse
WavecorFR090WA02
£61.12 · 225% more, worseFs109 Hz −27%, better
Qts0.85 +8%
Vas1.1 L +27%, worse
BL3.4 T·m +3%
Xmax2.3 mm +13%, better
Sensitivity83.7 dB −2.7, worse
WavecorFR090WA01
£61.12 · 225% more, worseFs113 Hz −25%, better
Qts0.88 +11%, worse
Vas1.1 L +19%, worse
BL2.8 T·m −17%, worse
Xmax2.3 mm +13%, better
Sensitivity83.8 dB −2.6, worse
WavecorFR084WA01
£61.71 · 228% more, worseFs113 Hz −25%, better
Qts0.82 +4%
Vas1.1 L +19%, worse
BL2.9 T·m −12%, worse
Xmax2 mm –
Sensitivity84.1 dB −2.3, worse
£73.62 · 291% more, worse
Fs100 Hz −33%, better
Qts0.67 −15%, better
Vas1.1 L +22%, worse
BL2.9 T·m −12%, worse
Xmax2 mm –
Sensitivity81.8 dB −4.6, worse
SEASH1600-04 FU10RB
£80.34 · 327% more, worseFs102 Hz −32%, better
Qts0.91 +15%, worse
Vas1 L +11%, worse
BL2.7 T·m −18%, worse
Xmax2 mm –
Sensitivity81.2 dB −5.2, worse
SEASH1600-08 FU10RB
£80.34 · 327% more, worseFs102 Hz −32%, better
Qts0.96 +22%, worse
Vas1 L +11%, worse
BL3.6 T·m +8%
Xmax2 mm –
Sensitivity81 dB −5.4, worse
CIARECW100Z
No current priceFs107 Hz −29%, better
Qts0.78 –
Vas1.9 L +111%, worse
BL3.0 T·m −9%
Xmax2.1 mm +5%
Sensitivity85.3 dB −1.1
Dayton AudioCFC100-8
No current priceFs107 Hz −29%, better
Qts0.78 –
Vas0.75 L −17%, better
BL3.9 T·m +18%, better
Xmax2.5 mm +25%, better
Sensitivity81.6 dB −4.8, worse
WavecorFR084WA02
No current priceFs109 Hz −27%, better
Qts0.79 –
Vas1.1 L +27%, worse
BL3.6 T·m +11%, better
Xmax2.5 mm +25%, better
Sensitivity84 dB −2.4, worse
WavecorFR084OM02
No current priceFs117 Hz −22%, better
Qts1.06 +34%, worse
Vas1.1 L +20%, worse
BL3.4 T·m +3%
Xmax2.3 mm +13%, better
Sensitivity83.6 dB −2.8, worse
WavecorFR084OM01
No current priceFs115 Hz −23%, better
Qts0.92 +16%, worse
Vas1.1 L +20%, worse
BL2.8 T·m −17%, worse
Xmax2.3 mm +13%, better
Sensitivity84.1 dB −2.3, worse
Dayton AudioCE67PR-4
No current priceFs218 Hz +45%, worse
Qts0.92 +16%, worse
Vas0.11 L −88%, better
BL3.2 T·m –
Xmax2.2 mm +10%, better
Sensitivity82.1 dB −4.3, worse
LavoceFSN020.71F
No current priceFs212 Hz +41%, worse
Qts0.82 +4%
Vas0.22 L −76%, better
BL3.2 T·m –
Xmax2.4 mm +20%, better
Sensitivity85.5 dB −0.9
LavoceFSN020.72
No current priceFs210 Hz +40%, worse
Qts0.92 +16%, worse
Vas0.18 L −80%, better
BL3.2 T·m −3%
Xmax2.3 mm +15%, better
Sensitivity83.6 dB −2.8, worse
CIARECXE104
No current priceFs119 Hz −21%, better
Qts0.93 +18%, worse
Vas2.4 L +164%, worse
BL3.0 T·m −10%, worse
Xmax2.1 mm +5%
Sensitivity87.2 dB +0.8
Tune the match
Choose the published values that matter to your design. Size stays matched to this driver.
Qts
Qes
VasL
Xmaxmm
BLTm
- SoundImports5.0 out of 52 ratings · Checked 25 Oct 2026Read reviews on SoundImports
Each shop collects its own ratings. Bits shows them as published and doesn't verify them.
| Shop | Price | Against the lowest | Stock | Link |
|---|---|---|---|---|
SoundImports Import VAT and duty may apply | £20.89, the lowest price | 12 in stock | Visit shop at SoundImports | |
Blue Aran 9-11 weeks | £15.12 | Usually available in 9-11 weeks | Visit shop at Blue Aran | |
Lean Audio | £15.12 | Back order | Visit shop at Lean Audio |
Best price over time
Tracked since 1 Apr
