Hornresp
.txt · Hornresp driver database
Driver file ready to place in Hornresp’s Drivers folder.
Download for HornrespLavoce FSN020.72 8Ω
LF DriverMedia
Auto-advancing
Overview
LF DriverFSN020 series
Lavoce

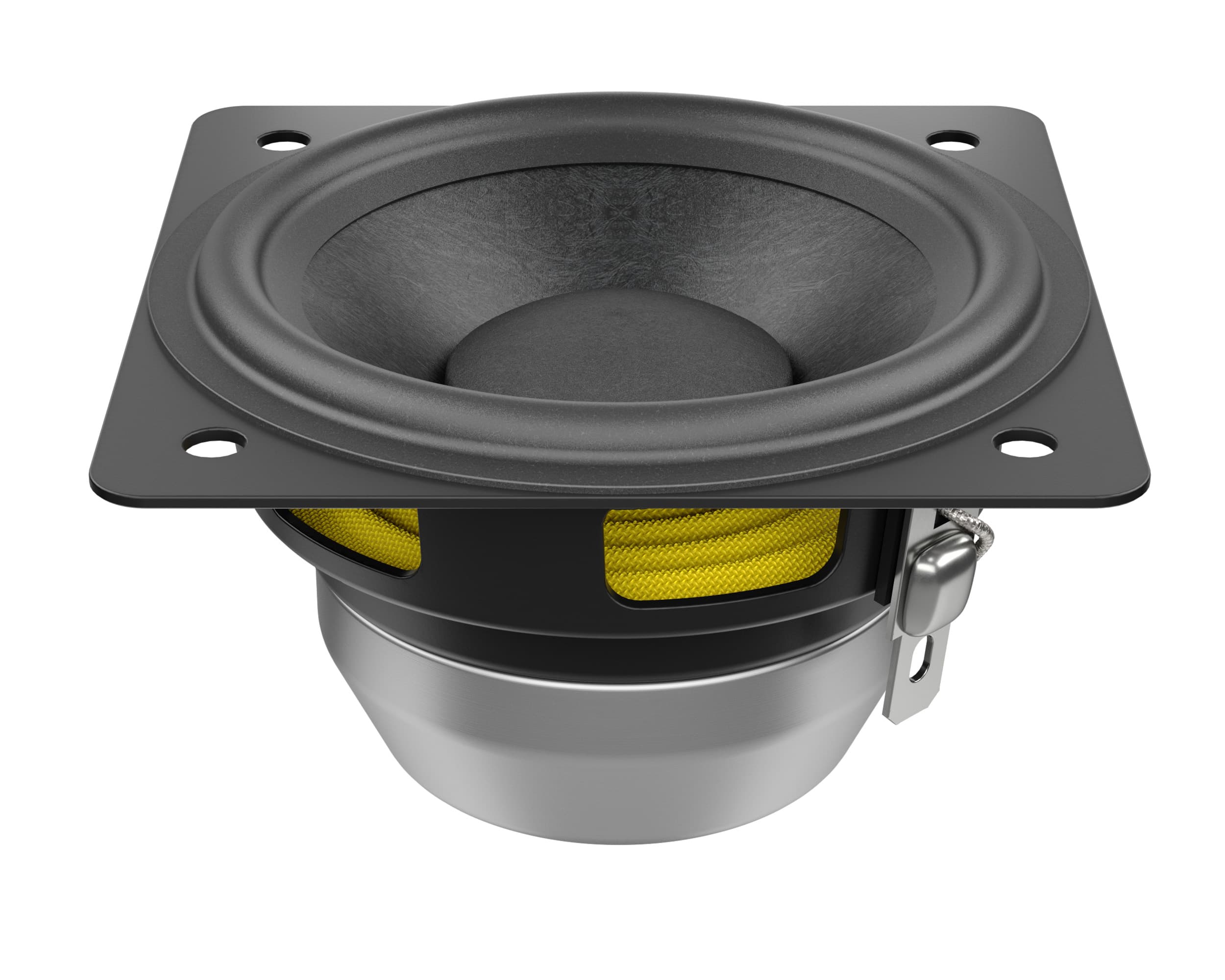

Lavoce FSN020.72
Lavoce FSN020.72 is a 2" 8 ohm LF driver rated at 15W RMS. The validated T/S data includes Fs 210Hz, Qts 0.92, Vas 0.2L, Xmax 2.3mm, sensitivity 83.6dB, plus 4cm³ Vd and 181 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
2"
Impedance
8Ω
RMS Power
15W
Sensitivity
83.6dB
EBP
181
Vented alignment
Vd
4cm³
T/S Parameters
Valid
Fs210Hz
Qts0.92
Qes1.16
Qms4.4
Vas0.2L
Re6.2Ω
Le0.06mH
BL3.2Tm
Sd18cm²
Mms1g
Xmax2.3mm
SPL84dB
Power15W
Impedance8Ω
Min Impedance6.6Ω
F Low200Hz
F High20000Hz
Voice Coil20mm
Pricing & availability
Price definitionsVendor offers
1 vendorpartsexpress
Updated 11 Sept 2026· 8Ω
Source: ex VAT
£20.71
inc VAT
Back order
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.

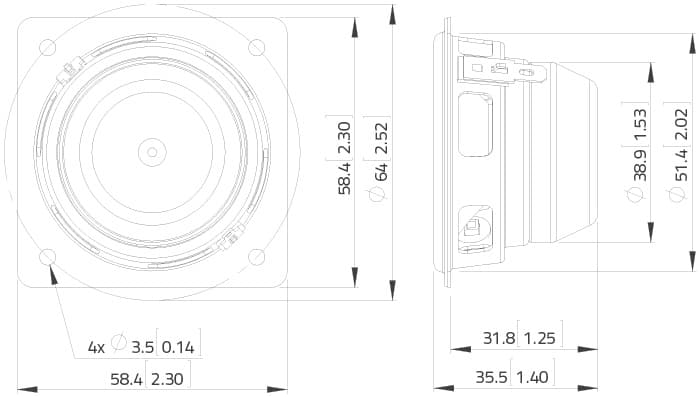

Dimensions & Physical
Weight0.1kg
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Lavoce
FSN020.72
2"
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size. Pin a driver to open a side-by-side comparison.
5 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
81%
Similarity
Dayton Audio
CE67PR-4
2"
Xmax2.2mm-4%
Qts0.920%
BL3.2Tm+1%
Vas0.1L-39%
Qes1.11-4%
76%
Similarity
£14.46
Lavoce
FSN020.71F
2"
Xmax2.4mm+4%
Qts0.82-11%
BL3.2Tm+2%
Vas0.2L+22%
Qes0.95-18%
61%
Similarity
Peerless
HVS-60N18PG01-04
2.5"
Xmax2.2mm-5%
Qts0.9-2%
BL2.2Tm-30%
Vas0.2L+36%
Qes1.22+5%
52%
Similarity
Visaton
FRS 5 X - 8 Ohm
2"
Xmax2mm-13%
Qts0.7-24%
BL2.7Tm-16%
Vas0.2L+28%
Qes0.88-24%
52%
Similarity
Visaton
FRS 5 XTS - 8 Ohm
2"
Xmax2mm-13%
Qts0.7-24%
BL2.7Tm-16%
Vas0.2L+28%
Qes0.88-24%
