HiVi B3S 8Ω
LF DriverMedia
Auto-advancing
Overview
LF DriverB series
HiVi

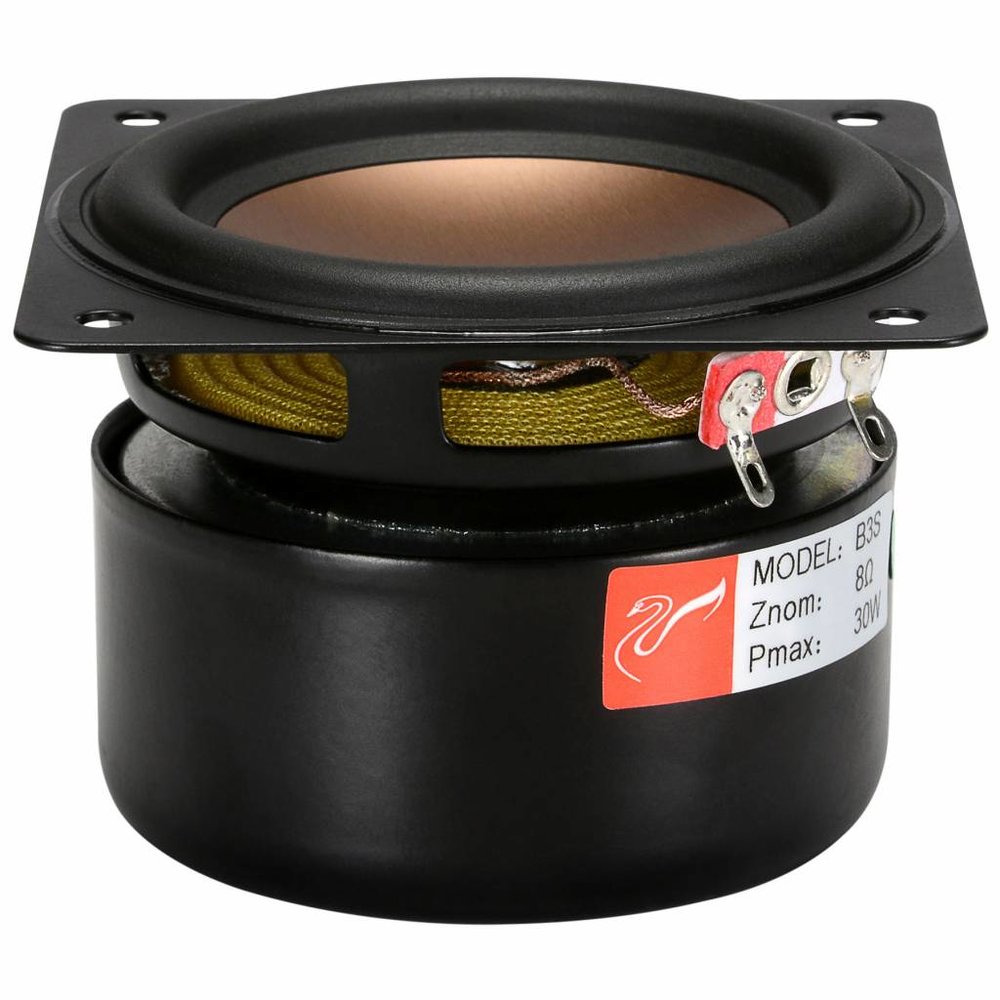

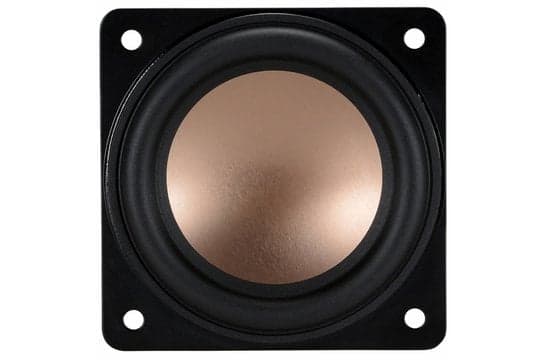

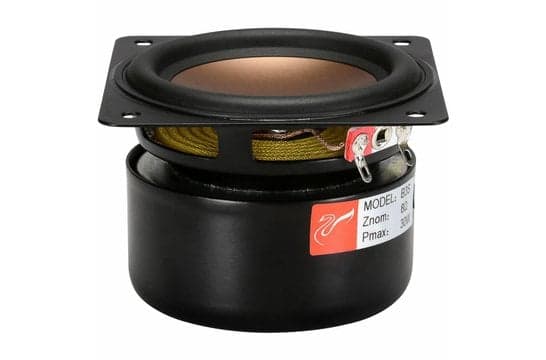

HiVi B3S
HiVi B3S is a 3" 8 ohm LF driver rated at 15W RMS. The validated T/S data includes Fs 100Hz, Qts 0.88, Vas 0.0L, Xmax 3mm, sensitivity 67.4dB, plus 9cm³ Vd and 87 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
3"
Impedance
8Ω
RMS Power
15W
Sensitivity
67.4dB
82.0dBmanufacturer; using T/S-derived value (14.6dB delta).
EBP
87
Either alignment
Vd
9cm³
T/S Parameters
Valid
Fs100Hz
Qts0.88
Qes1.15
Qms3.8
Vas0.0L
Re6.5Ω
BL3.1Tm
Sd30cm²
Mms3g
Xmax3.0mm
SPL67dB
Power15W
Impedance8Ω
F Low100Hz
F High10000Hz
Voice Coil19mm
Pricing & availability
Price definitionsVendor offers
1 vendorsoundimports
Updated 11 Sept 2026
Source: inc VAT
£15.85
inc VAT
Out of stock
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Not enough T/S data
Missing Le
BASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Not enough T/S data
Missing Le
VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Not enough T/S data
Missing Le
00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Diameter76.2mm
Overall Depth54.1mm
Cutout Diameter69.8mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
HiVi
B3S
3"
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size. Pin a driver to open a side-by-side comparison.
1 match
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
89%
Similarity
HiVi
B3N
3"
Xmax3mm0%
Qts0.86-2%
BL3.1Tm+1%
Vas0.1L+50%
Qes1.07-7%
