Overview
LF DriverAN2775 series
Celestion

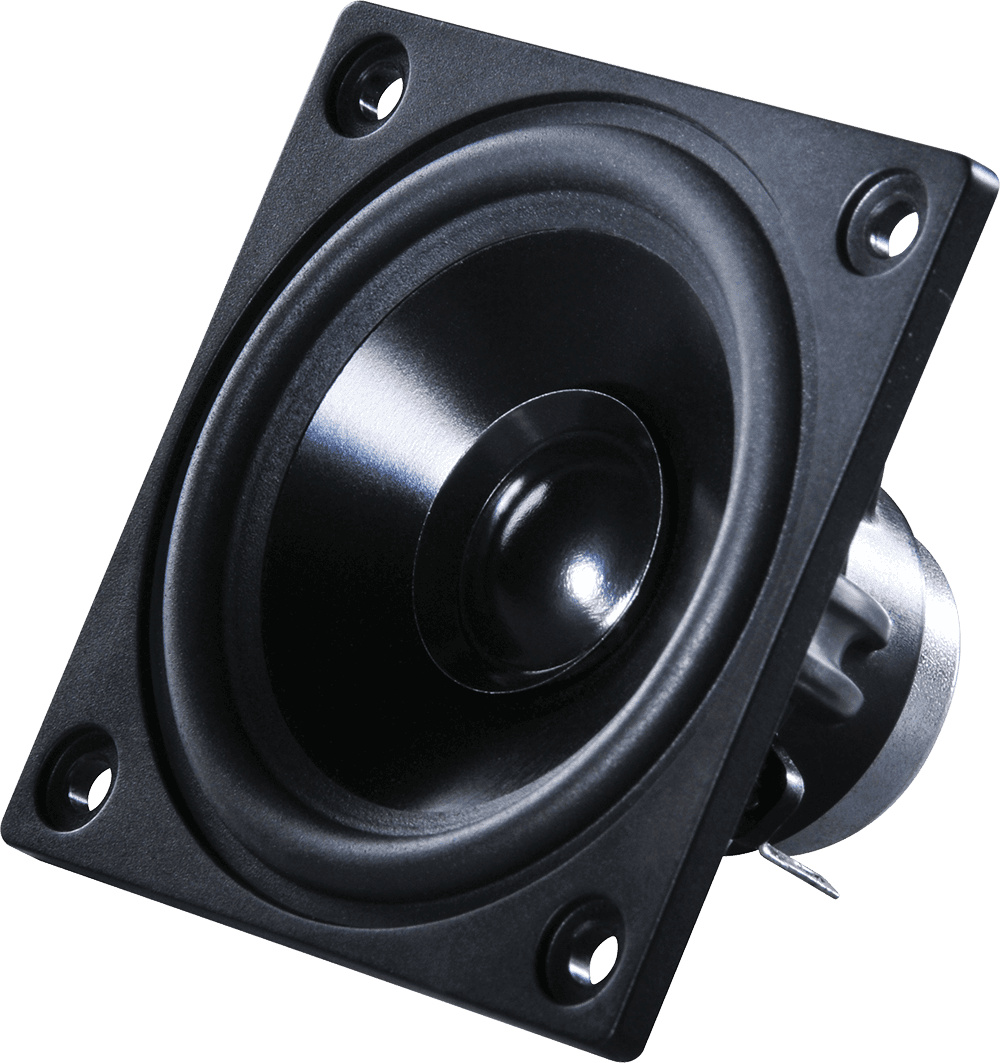

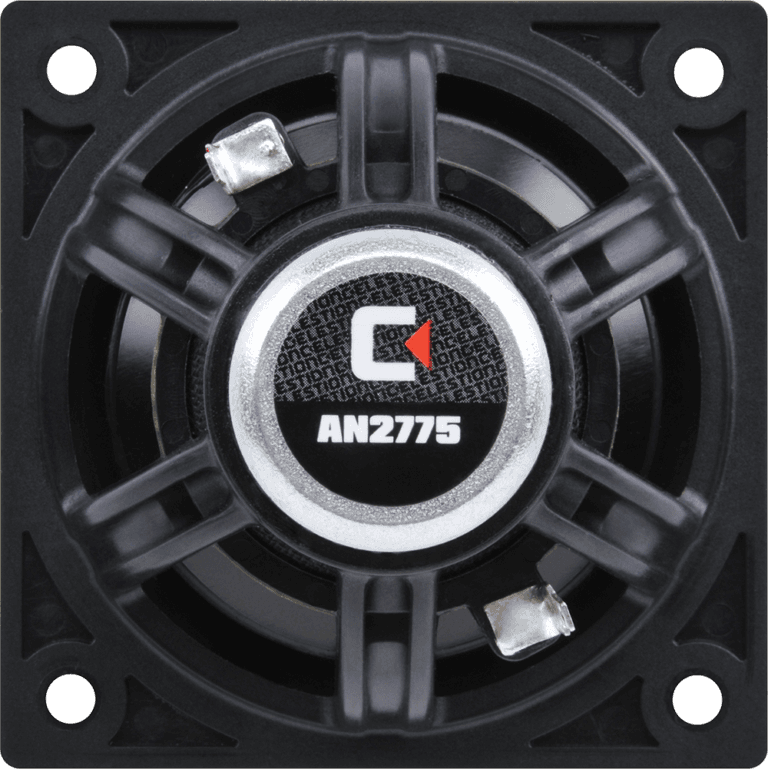

Celestion AN2775
Celestion AN2775 is a 2.75" 8 ohm LF driver rated at 20W RMS. The validated T/S data includes Fs 123Hz, Qts 0.96, Vas 3.6L, Xmax 2.3mm, sensitivity 89.6dB, plus 6cm³ Vd and 106 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £35.00.
Size
2.75"
Impedance
8Ω
RMS Power
20W
Sensitivity
89.6dB
84.0dBmanufacturer; using T/S-derived value (5.6dB delta).
EBP
106
Vented alignment
Vd
6cm³

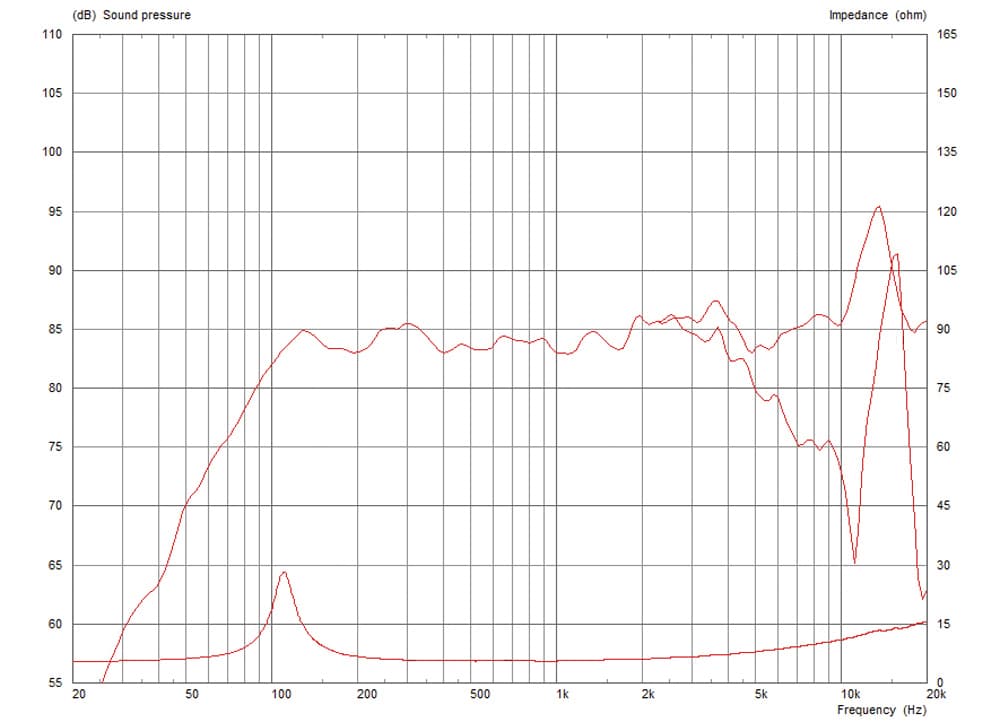

Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
LF frequency response137 ptsp1medium
Curve provenanceInspect 1 traceHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
LF frequency response
Frequency response
137 plotted pointsMedium confidence170 selected pixels of 369
T/S Parameters
Valid
Fs123Hz
Qts0.96
Qes1.17
Qms5.4
Vas3.6L
Re5.3Ω
Le0.07mH
BL3.1Tm
Sd28cm²
Mms3g
Xmax2.3mm
SPL90dB
Power20W
Impedance8Ω
Voice Coil20mm
Pricing & availability
Price definitionsPrice movement
Other offers
1 vendorleanbusiness
Updated 17 May 2026· 8Ω
Source: inc VAT · 20%
£36.00
inc VAT
Best current price
Updated 11 Sept 2026
leanaudio
£35.00
Avg £35.50£0.50 below avg (-1.4%)
inc VAT·2 in stock
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight0.1kg
Overall Depth45.0mm
Cutout Diameter66.1mm
Bolt Circle Diameter82.0mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Celestion
AN2775
2.75"
Best current price
£35.00
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size. Pin a driver to open a side-by-side comparison.
3 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
52%
Similarity
5% cheaper£33.28

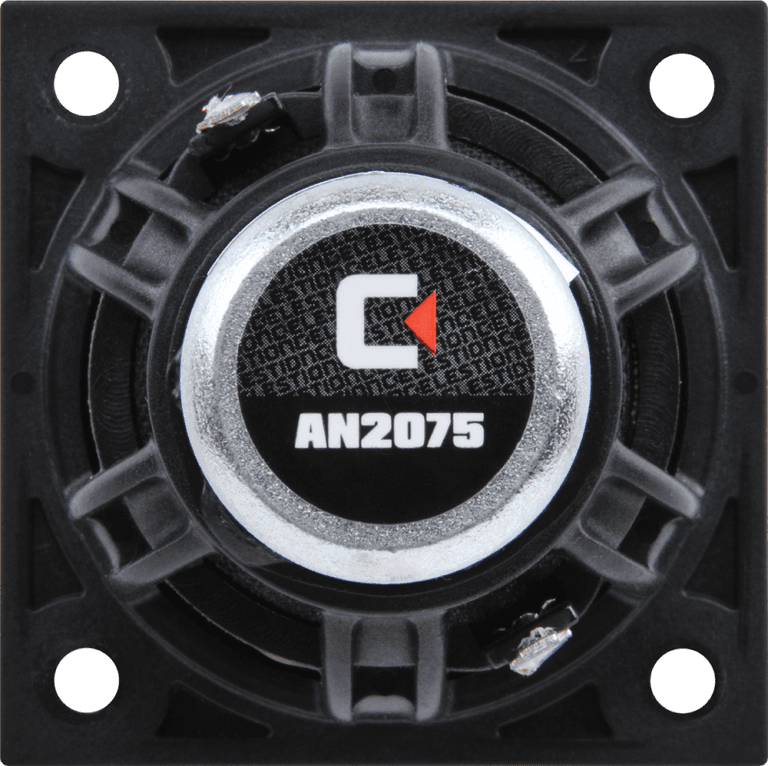

Celestion
AN2075
2"
Lower price
Xmax2.3mm0%
Qts0.84-13%
BL2.7Tm-11%
Vas1.5L-58%
Qes1-14%
96%
Similarity

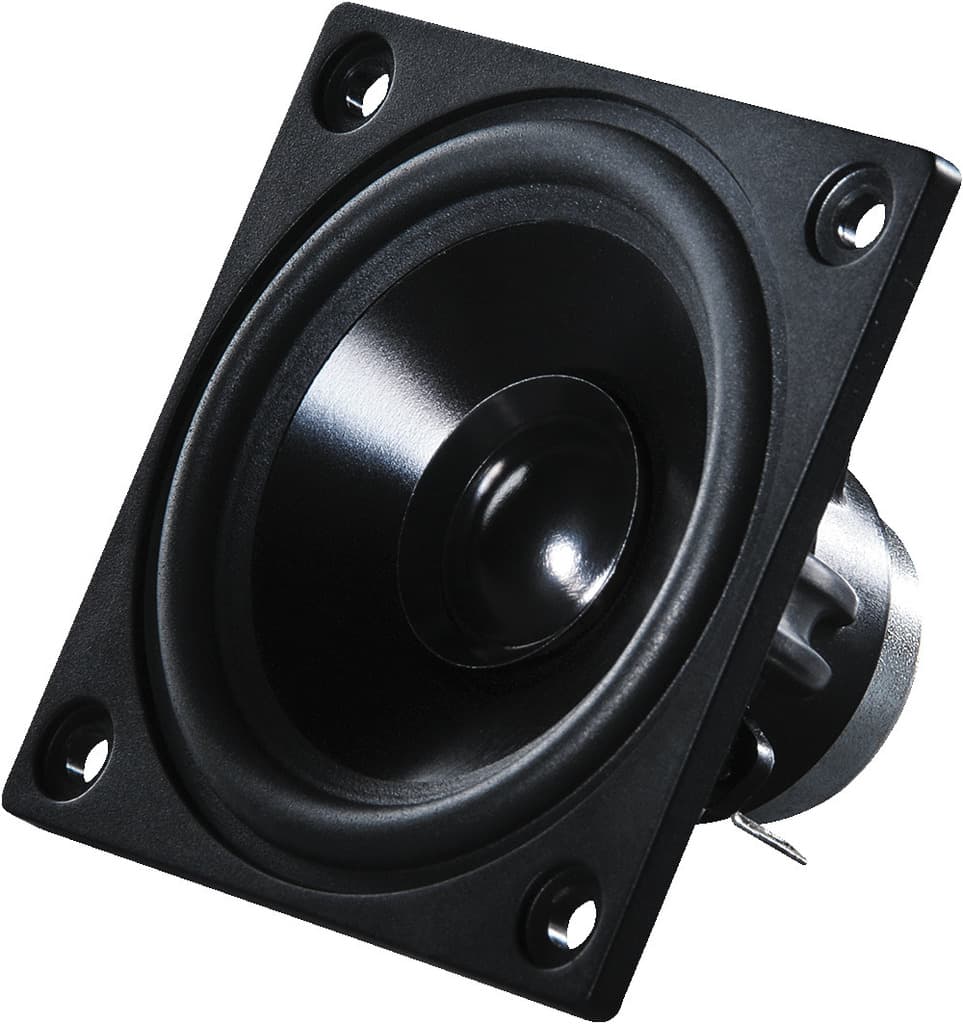

Monacor
AN2775/8
2.5"
Xmax2.3mm0%
Qts0.960%
BL3.1Tm0%
Vas3.6L+1%
Qes1.170%
52%
Similarity

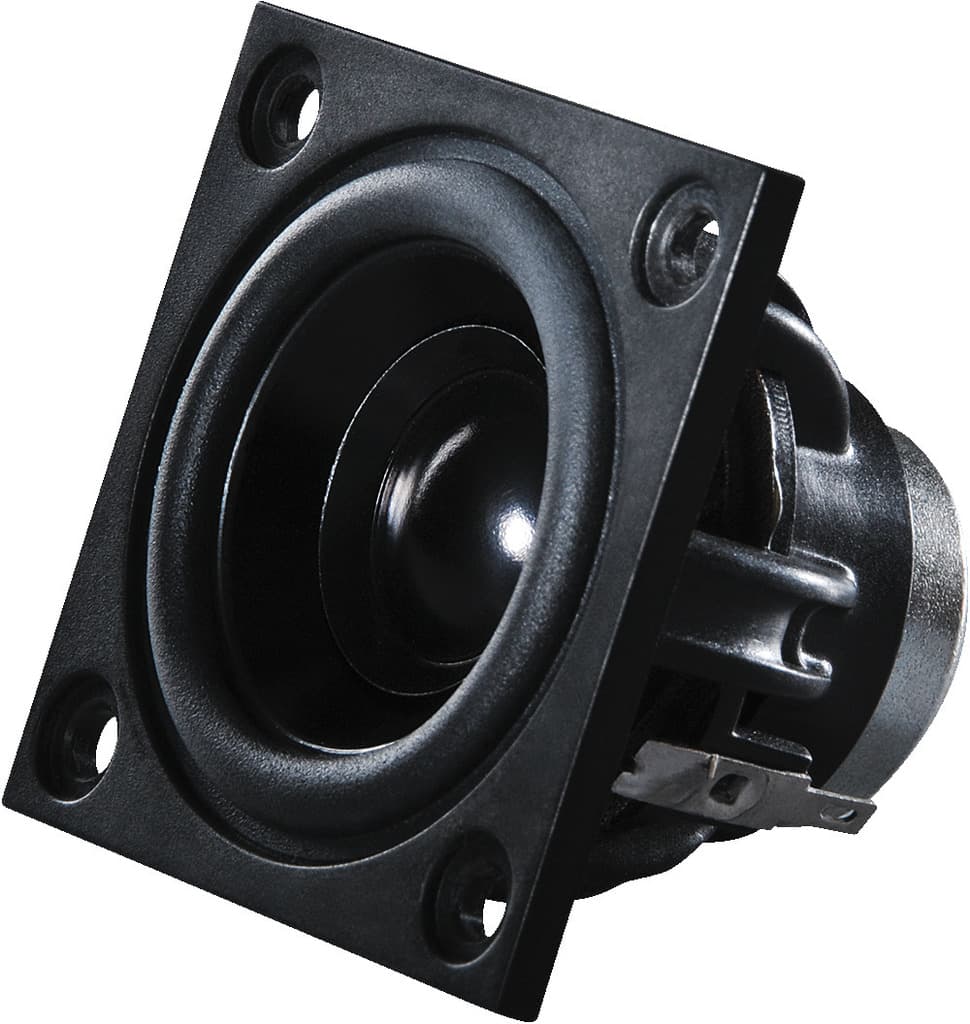

Monacor
