Overview
LF Driver
Sica

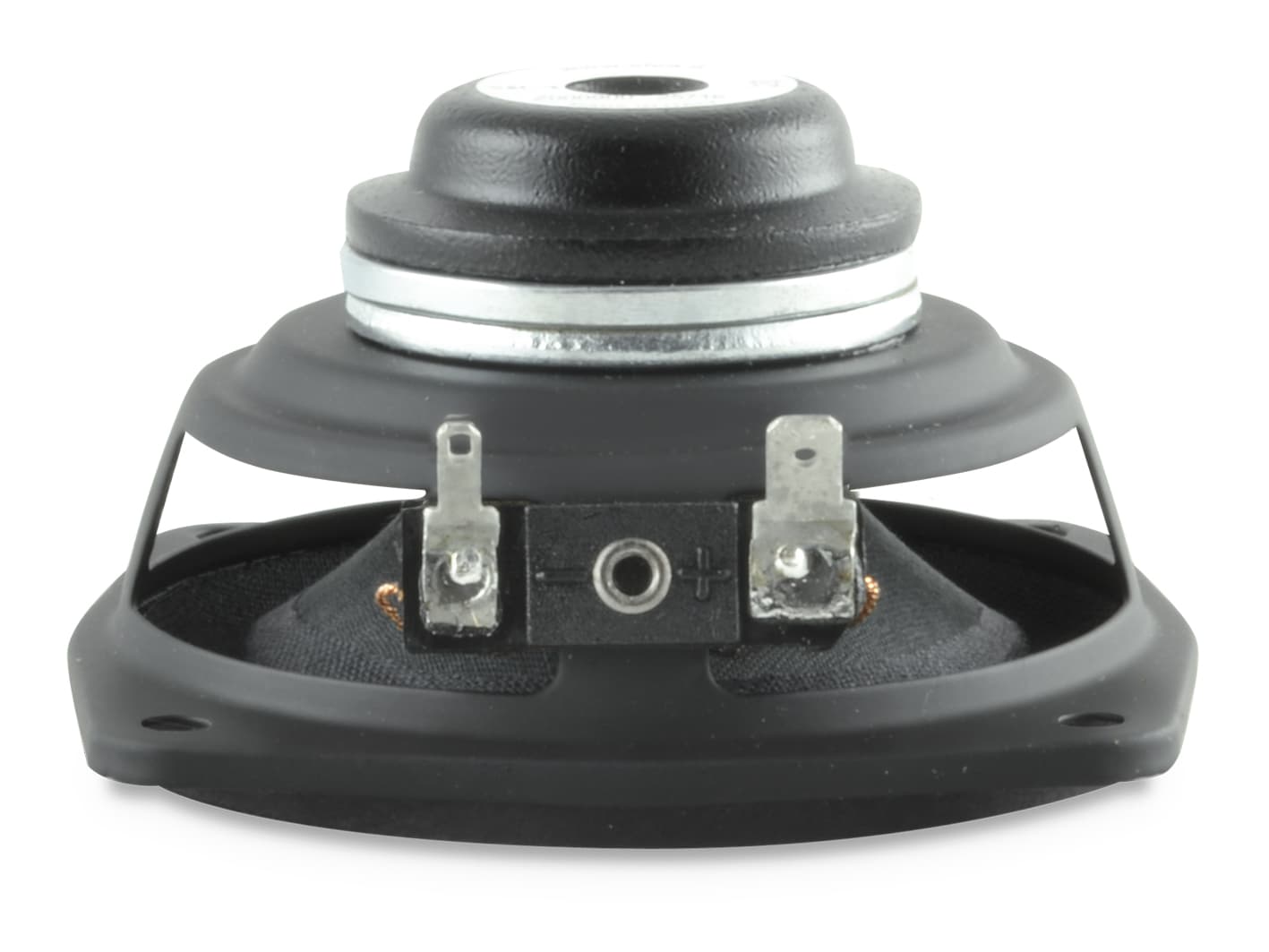

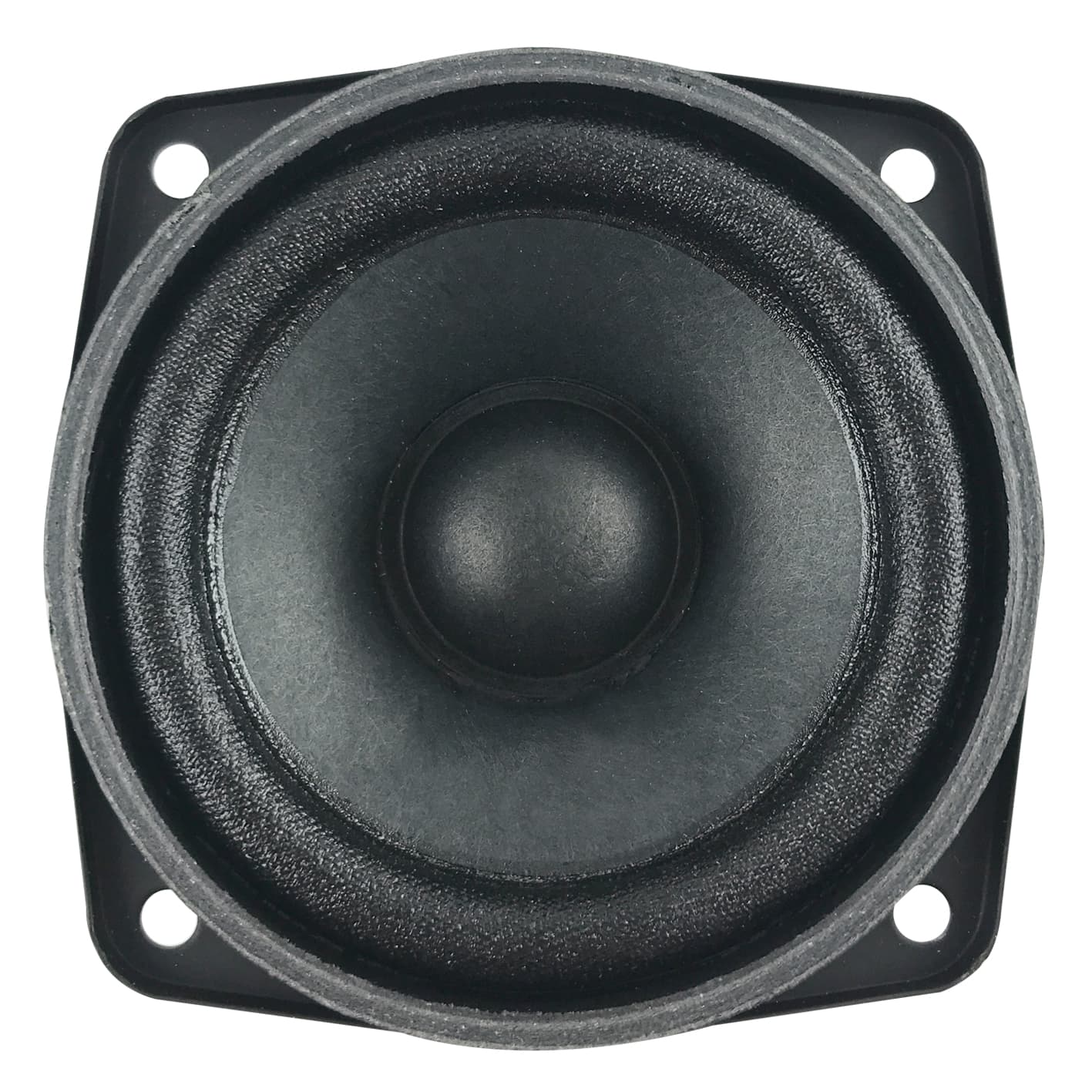

Sica 3 L 0.8 SL
Sica 3 L 0.8 SL is a 3" 8 ohm LF driver rated at 20W RMS. The validated T/S data includes Fs 145Hz, Qts 1.01, Vas 0.8L, Xmax 1.5mm, sensitivity 84.8dB, plus 5cm³ Vd and 113 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
3"
Impedance
8Ω
RMS Power
20W
Sensitivity
84.8dB
86.4dBmanufacturer; using T/S-derived value (1.6dB delta).
EBP
113
Vented alignment
Vd
5cm³
T/S Parameters
Valid
Fs145Hz
Qts1.01
Qes1.28
Qms4.9
Vas0.8L
Re5.5Ω
Le0.11mH
BL2.8Tm
Sd30cm²
Mms2g
Xmax1.5mm
SPL85dB
Power20W
Impedance8Ω
Voice Coil20mm
Flux Density1.30T
Pricing & availability
Price definitionsNo current price found
Pricing may appear after the next vendor refresh.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight0.1kg
Diameter79.0mm
Overall Depth44.9mm
Cutout Diameter73.0mm
Bolt Circle Diameter84.0mm
